NSN 5340-01-166-8040 BACC10DW24, BACC10DW24D, S258D24
Product Details | LOOP CLAMP
5340-01-166-8040 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: BACC10DW24, BACC10DW24D, S258D24, TA4C44D24, 475A24, 5340-01-166-8040, 01-166-8040, 5340011668040, 011668040
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 NOV 1983 | 01-166-8040 | 17532 ( CLAMP, LOOP ) |

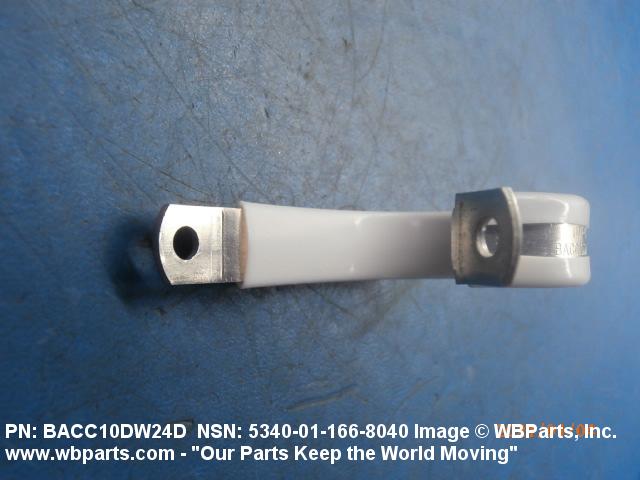

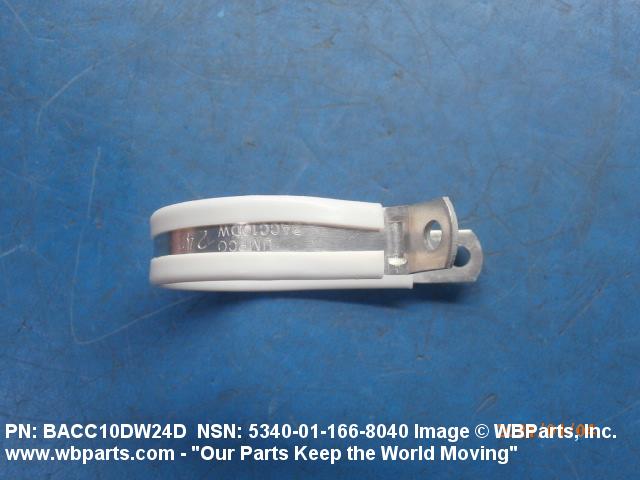

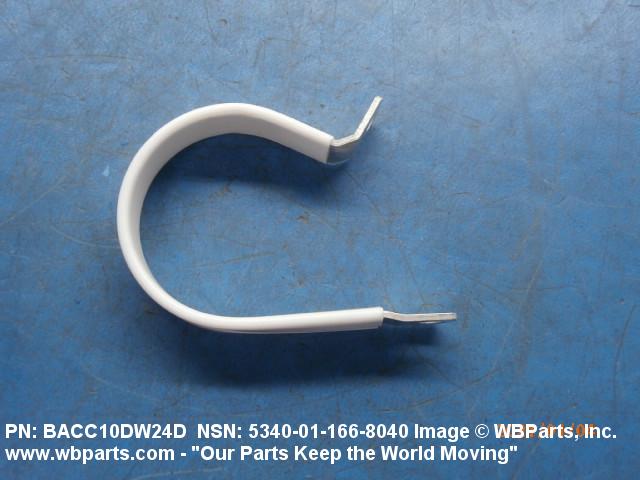

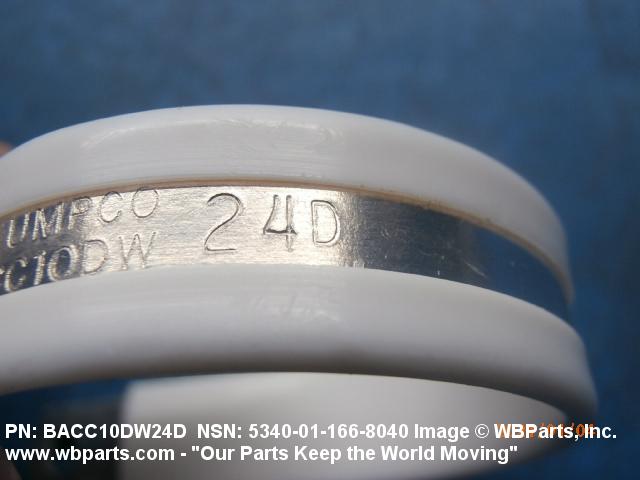

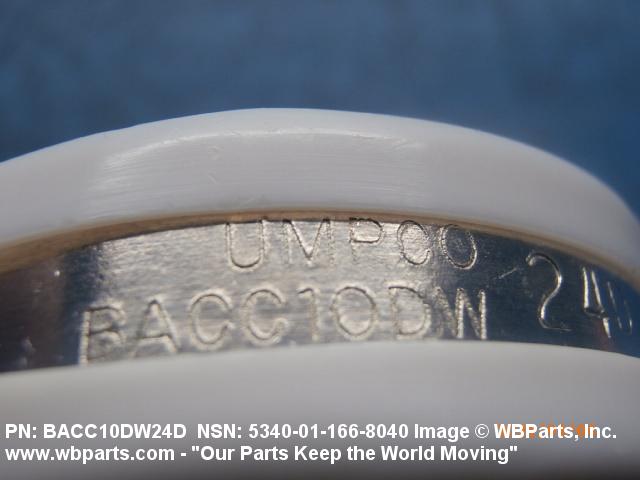

Drawings & Photos | NSN 5340-01-166-8040
Demand History | NSN 5340-01-166-8040
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACC10DW24D | 2022-03-90 | 595 | DIBBS |
| BACC10DW24D | 2022-02-32 | 454 | DIBBS |
| BACC10DW24D | 2021-01-21 | 244 | United States |
| BACC10DW24D | 2021-01-11 | 244 | United States |
| BACC10DW24D | 2020-12-344 | 122 | United States |
| 5340-01-166-8040 | 2016-07-195 | 363 | DIBBS |
Cross Reference | NSN 5340-01-166-8040
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-166-8040
Technical Data | NSN 5340-01-166-8040
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BAND PLASTIC POLYTETRAFLUOROETHYLENE CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,T3 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-250/5,T4 FED SPEC SINGLE MATERIAL RESPONSE BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

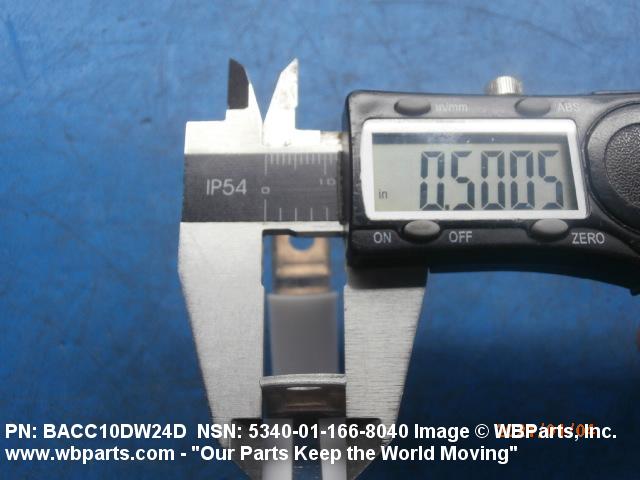

| OVERALL WIDTH | 0.500 INCHES NOMINAL |

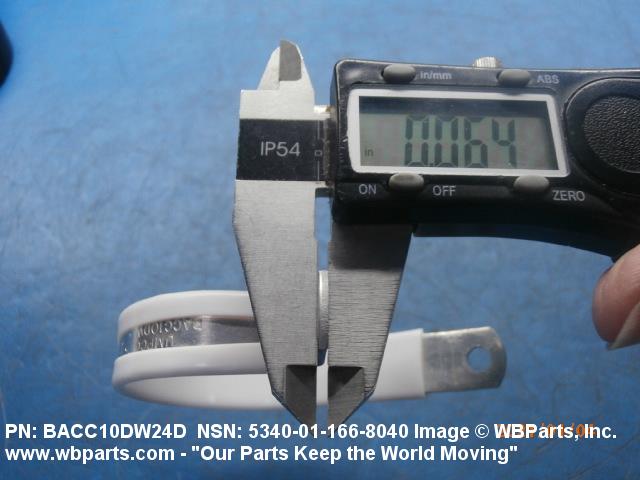

| MATERIAL THICKNESS | 0.058 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |

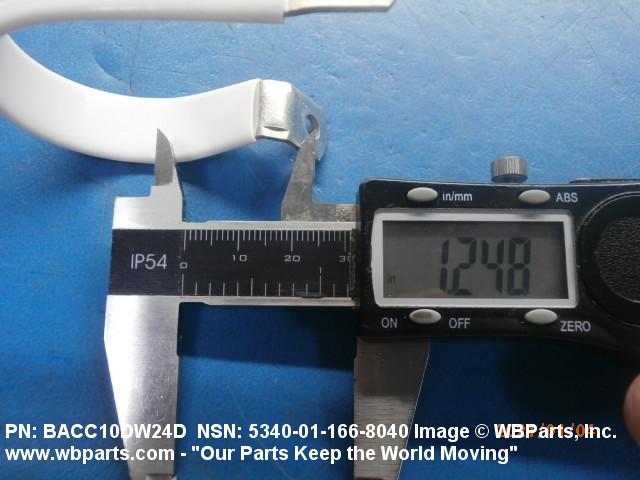

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.249 INCHES NOMINAL |

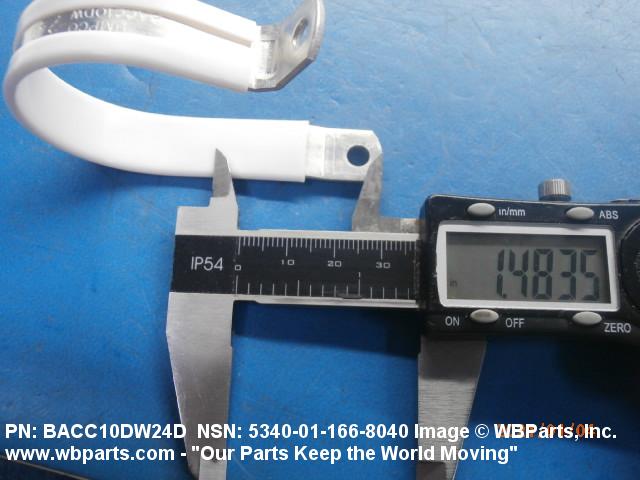

| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.483 INCHES NOMINAL |

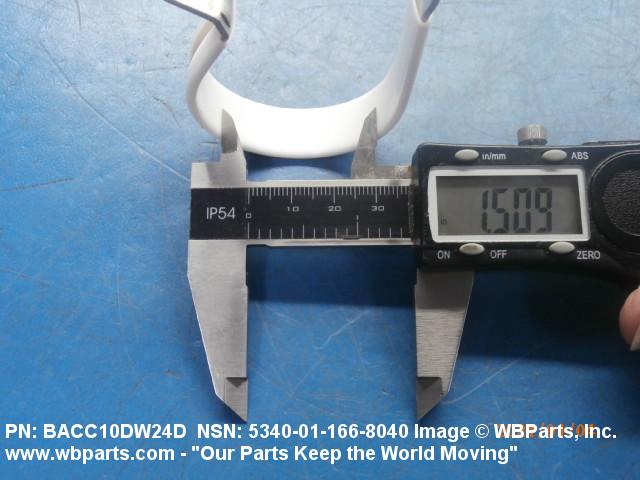

| LOOP INSIDE DIAMETER | 1.485 INCHES MINIMUM AND 1.515 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

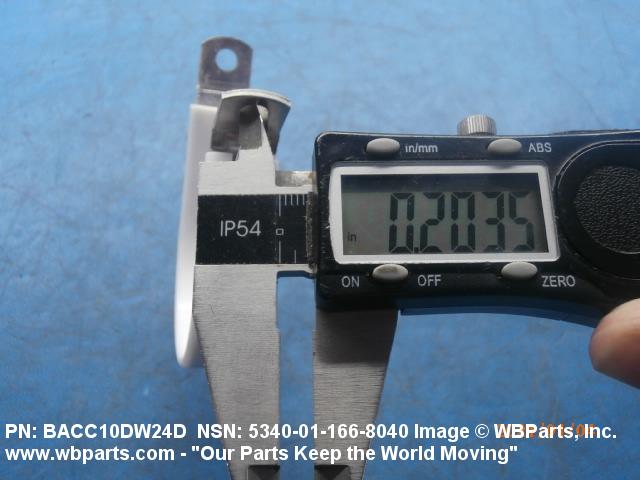

| DIAMETER | 0.204 INCHES NOMINAL |
| CUSHIONING ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5340-01-166-8040
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
