NSN 5340-01-157-4906 TA123003B08CR01, 11450681-1, 01-157-4906

Product Details | LOOP CLAMP

5340-01-157-4906 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: TA123003B08CR01, 11450681-1, 5340-01-157-4906, 01-157-4906, 5340011574906, 114506811, 011574906

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 JUL 1983	01-157-4906	17532 ( CLAMP, LOOP )

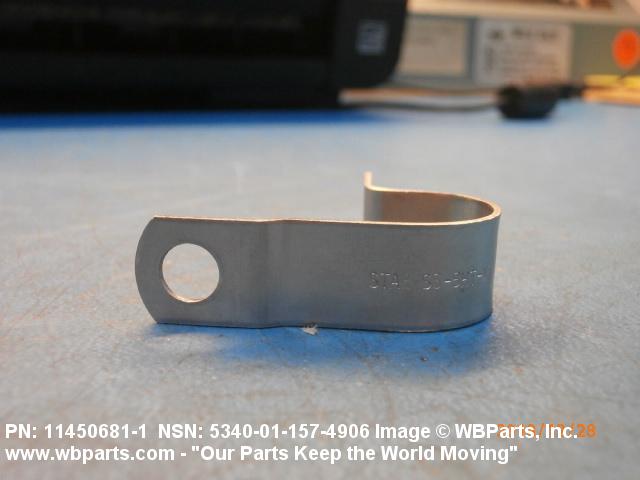

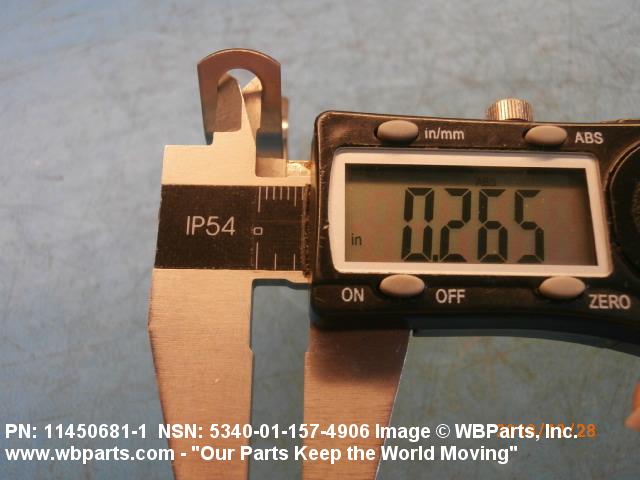

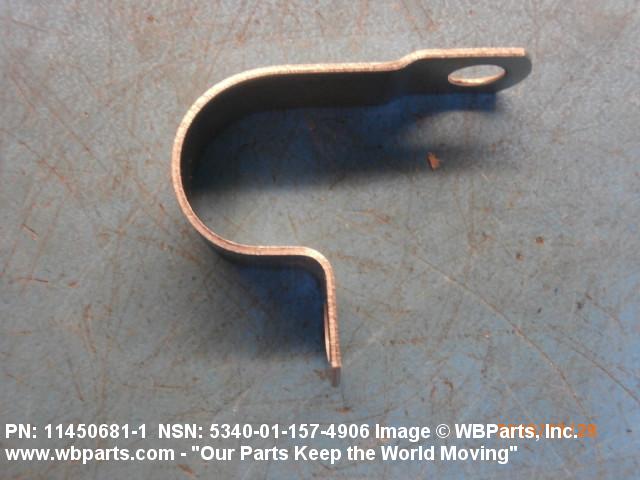

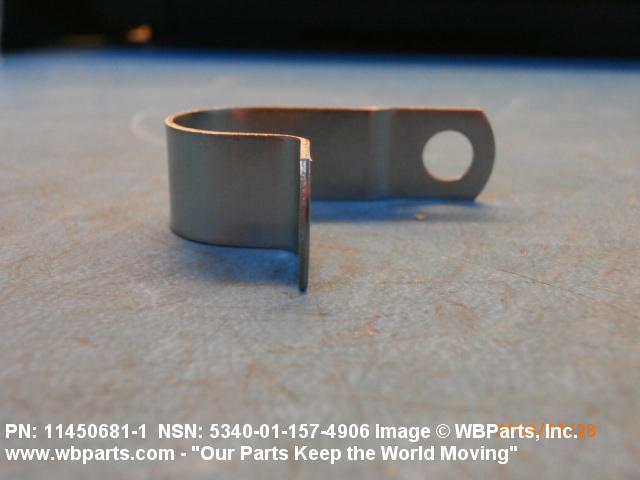

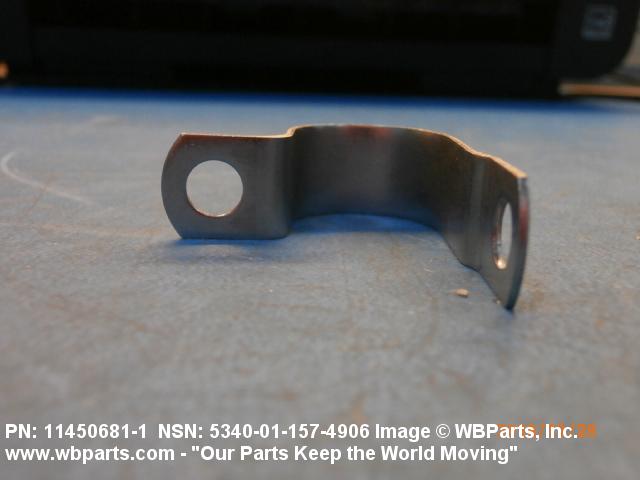

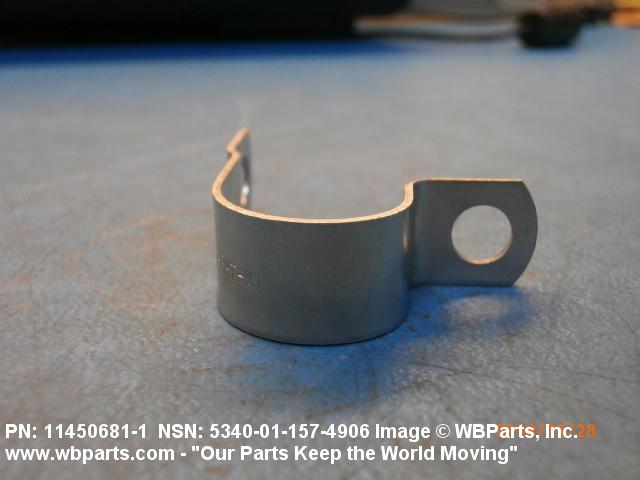

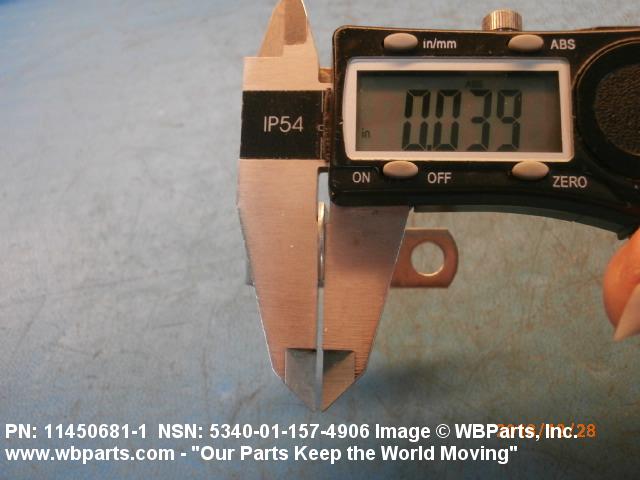

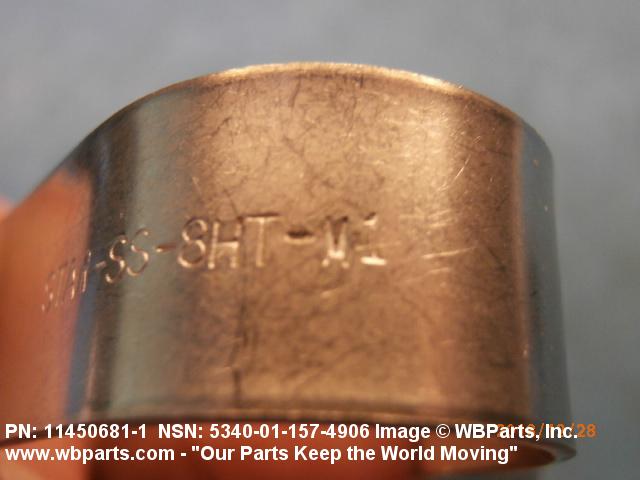

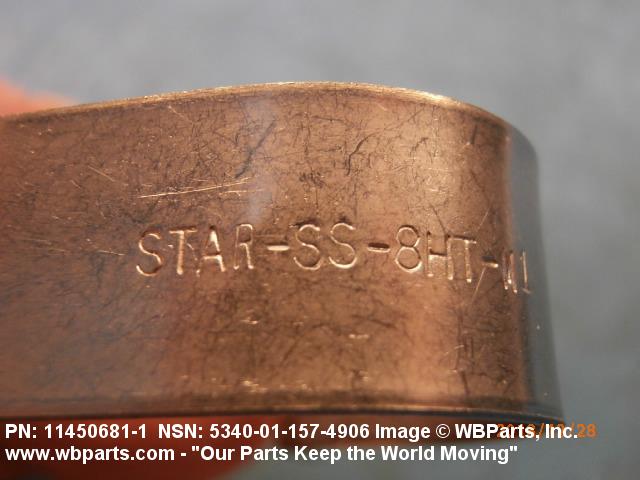

Drawings & Photos | NSN 5340-01-157-4906

Part Number	Request Date	QTY	Origin
TA123003B08CR01	2024-10-277	97	DIBBS
TA123003B08CR01	2024-05-123	105	DIBBS
TA123003B08CR01	2023-12-351	133	DIBBS
TA123003B08CR01	2022-12-335	54	DIBBS
TA123003B08CR01	2022-07-209	41	DIBBS
TA123003B08CR01	2020-12-351	111	DIBBS
TA123003B08CR01	2020-12-336	111	DIBBS
5340-01-157-4906	2020-07-192	12	United States
TA123003B08CR01	2020-03-75	95	DIBBS
TA123003B08CR01	2019-09-256	60	DIBBS
TA123003B08CR01	2019-09-248	60	DIBBS
TA123003B08CR01	2019-04-94	51	DIBBS
TA123003B08CR01	2019-03-86	51	DIBBS
5340-01-157-4906	2018-11-333	10	United States
5340-01-157-4906	2018-07-211	20	United States
5340-01-157-4906	2018-04-99	10	US
5340-01-157-4906	2016-08-234	203	DIBBS
5340-01-157-4906	2015-11-306	236	DIBBS
5340-01-157-4906	2015-10-295	236	DIBBS
5340-01-157-4906	2012-10-290	4	United States
5340-01-157-4906	2012-10-290	17	United States
5340-01-157-4906	2011-04-109	500	DIBBS
5340-01-157-4906	2010-11-307	300	DIBBS

Cross Reference | NSN 5340-01-157-4906

Part Number	Cage Code	Manufacturer
11450681-1	18876	U S ARMY AVIATION AND MISSILE COMMAND
TA123003B08CR01	84971	KIRKHILL-TA CO. DBA TA DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-157-4906

Compare

Related Products | NSN 5340-01-157-4906

5340-01-157-4915, 5340-01-157-4926, 5340-01-157-4932, 5340-01-157-5007, 5340-01-157-5054

Technical Data | NSN 5340-01-157-4906

Characteristic	Specifications
MATERIAL	STEEL COMP 321 BAND RUBBER CHLOROPRENE CLASS CR CUSHION
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE BAND AMS3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION
SURFACE TREATMENT	PASSIVATE BAND
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 TYPE 1 FED SPEC SINGLE TREATMENT RESPONSE OR QQ-P-35 TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE OR QQ-P-35 TYPE 3 FED SPEC SINGLE TREATMENT RESPONSE BAND
STYLE DESIGNATOR	A62 CLAMP AND BRACKET

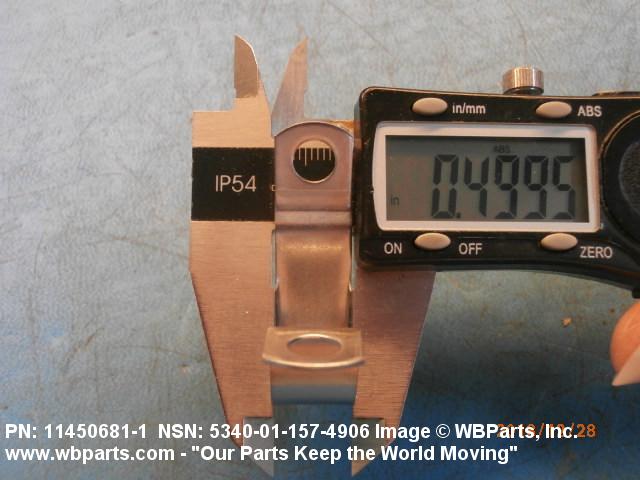

OVERALL WIDTH	0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM
MATERIAL THICKNESS	0.036 INCHES MINIMUM AND 0.044 INCHES MAXIMUM
LUG WIDTH	ANY ACCEPTABLE
CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES	1.250 INCHES NOMINAL

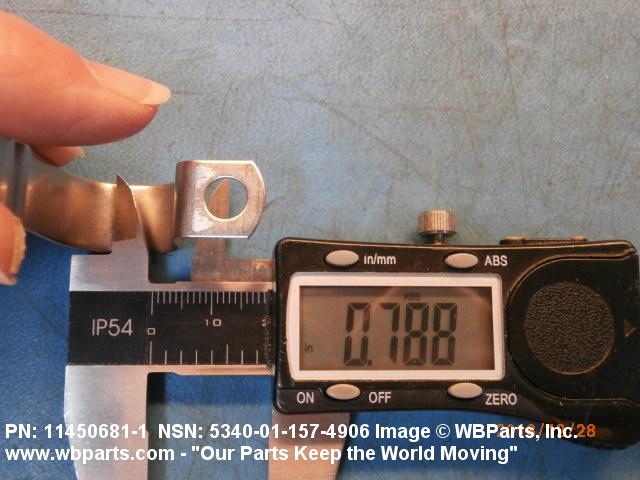

CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	0.788 INCHES NOMINAL

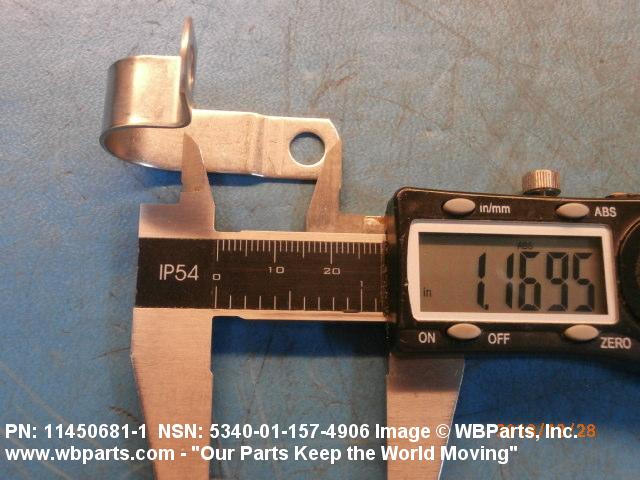

DISTANCE FROM LOOP CENTER TO TONGUE END	1.168 INCHES NOMINAL
LOOP INSIDE DIAMETER	0.500 INCHES NOMINAL
LUG HOLE DIAMETER	0.194 INCHES MINIMUM AND 0.214 INCHES MAXIMUM
TONGUE HOLE TYPE	ROUND, UNTHREADED
DIAMETER	0.190 INCHES NOMINAL
CUSHIONING ENVIRONMENTAL PROTECTION	HEAT AND OIL RESISTANT AND WEATHER RESISTANT

Restrictions/Controls & Freight Information | NSN 5340-01-157-4906

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-157-4906

Army
Navy

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
