NSN 5340-01-156-5483 MS2110516, MS21105-16, MS21919WCJ16
Product Details | LOOP CLAMP
5340-01-156-5483 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS2110516, MS21105-16, MS21919WCJ16, AS21919WCJ16, 517SS16, 5340-01-156-5483, 01-156-5483, 5340011565483, 011565483
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1983 | 01-156-5483 | 17532 ( CLAMP, LOOP ) |

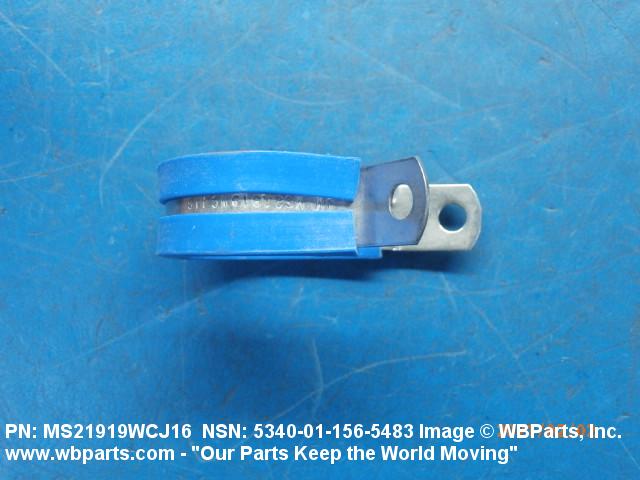

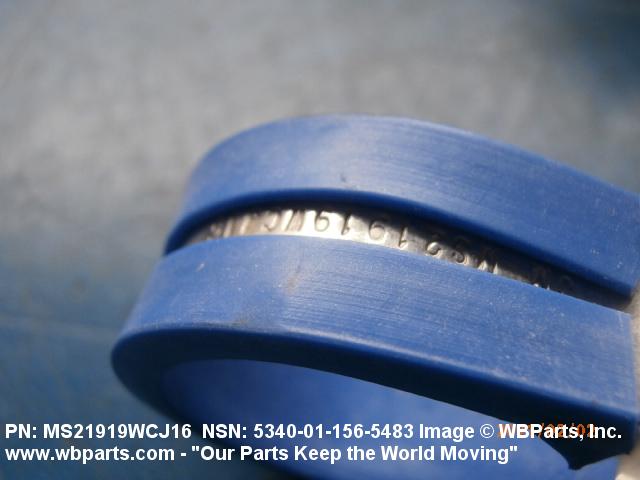

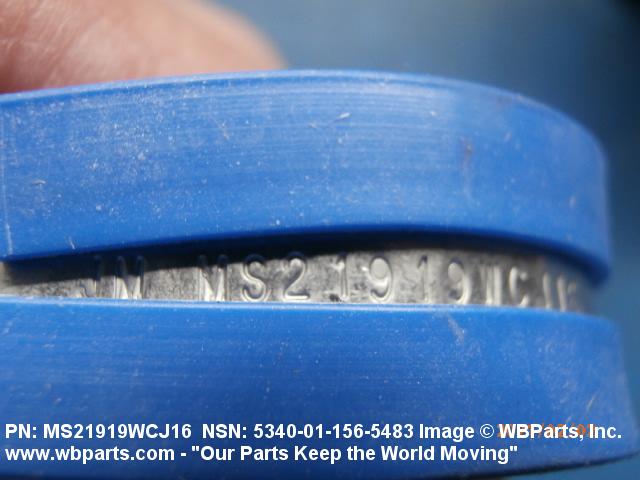

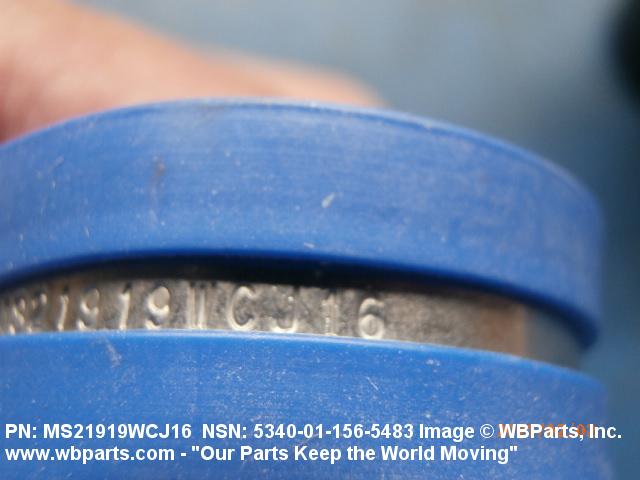

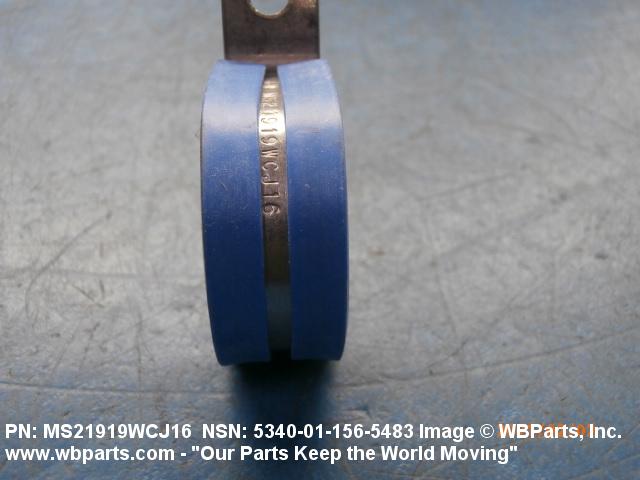

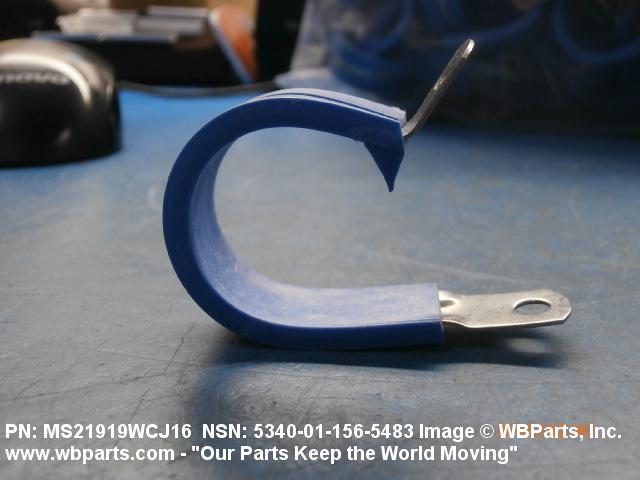

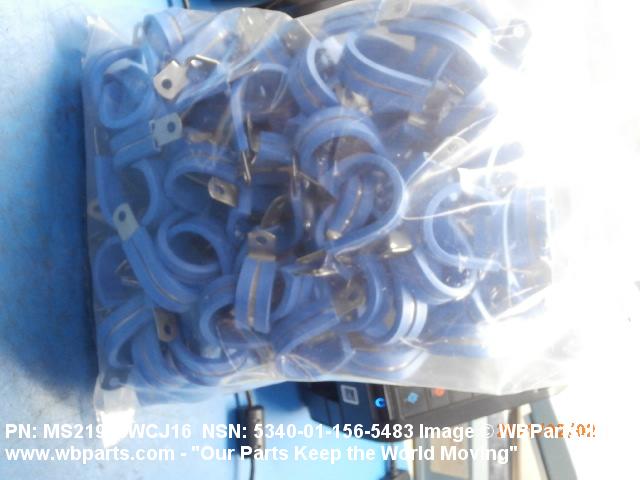

Drawings & Photos | NSN 5340-01-156-5483
Demand History | NSN 5340-01-156-5483
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21919WCJ16 | 2024-11-311 | 20 | United States |
| MS21919WCJ16 | 2023-09-249 | 6 | United States |
| MS21919WCJ16 | 2021-12-354 | 20 | United States |
| 5340-01-156-5483 | 2021-01-27 | 125 | United States |
| MS21919WCJ16 | 2016-08-216 | 20 | AU |
| MS21919WCJ16 | 2012-03-80 | 5 | BR |
Cross Reference | NSN 5340-01-156-5483
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-156-5483
Technical Data | NSN 5340-01-156-5483
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 BAND RUBBER FLUOROSILICONE CLASS FQ CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6721 MIL SPEC SINGLE MATERIAL RESPONSE BAND MIL-R-25988 TYPE 2 CLASS 1 GRADE 60 MIL SPEC SINGLE MATERIAL RESPONSE CUSHION |
| SURFACE TREATMENT | PASSIVATE BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

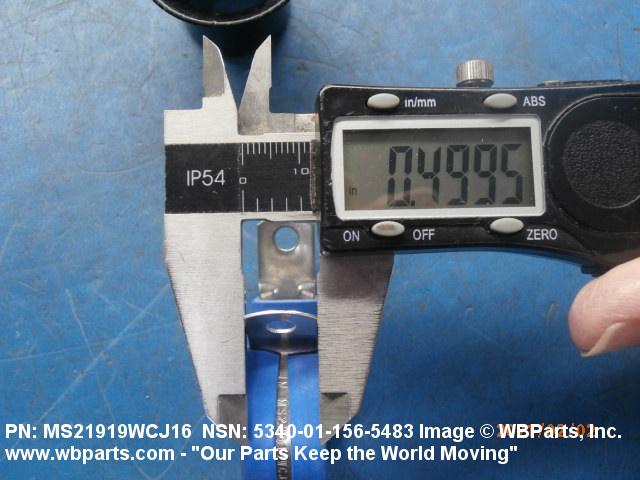

| OVERALL WIDTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

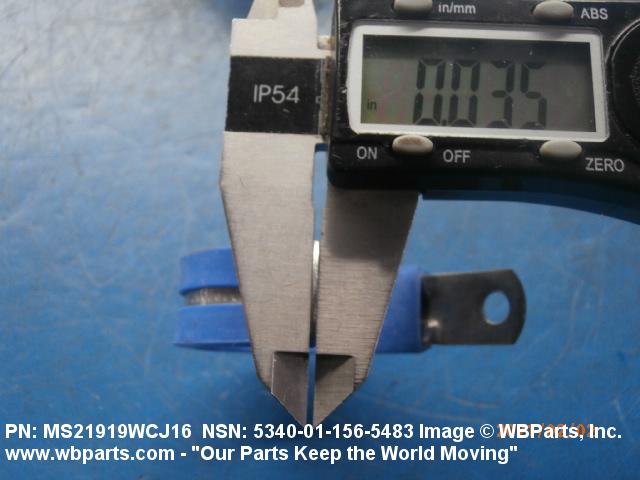

| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |

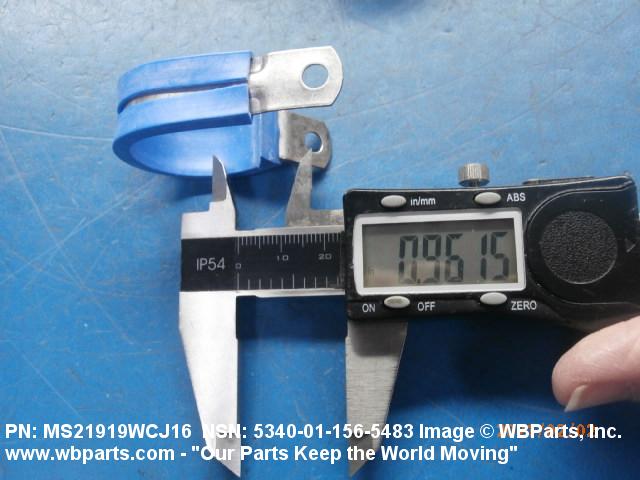

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.936 INCHES MINIMUM AND 0.966 INCHES MAXIMUM |

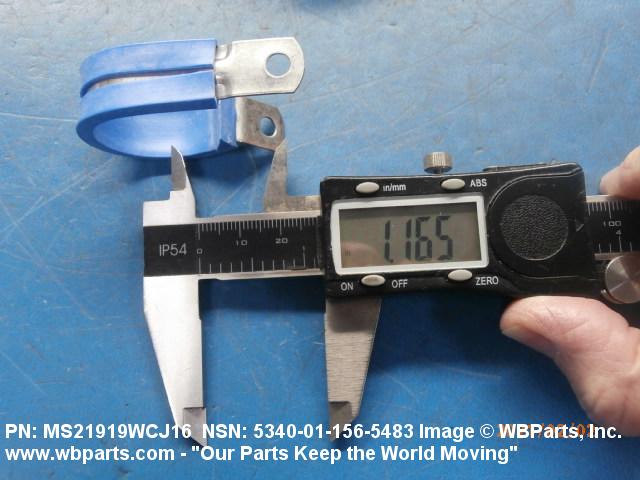

| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.169 INCHES NOMINAL |

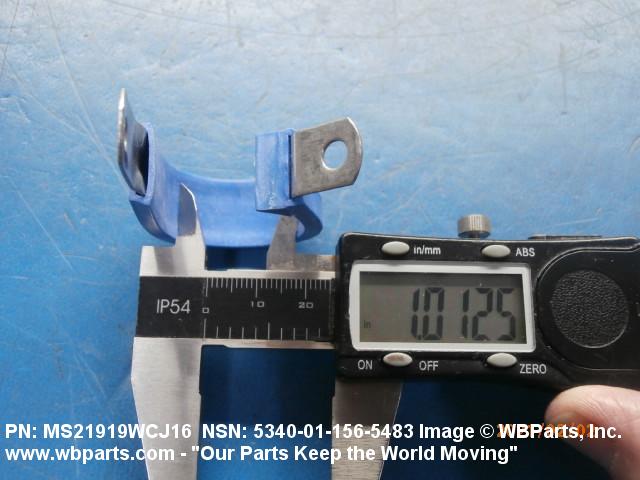

| LOOP INSIDE DIAMETER | 0.985 INCHES MINIMUM AND 1.015 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

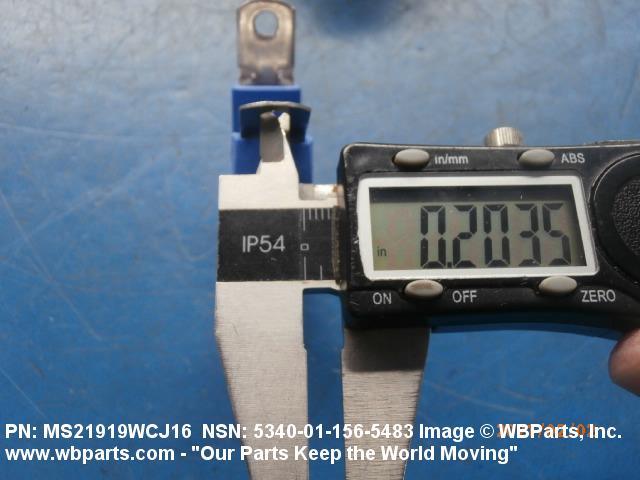

| DIAMETER | 0.199 INCHES MINIMUM AND 0.209 INCHES MAXIMUM |
| CUSHIONING ENVIRONMENTAL PROTECTION | OIL RESISTANT AND FUEL RESISTANT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21919WCJ16 |
Restrictions/Controls & Freight Information | NSN 5340-01-156-5483
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
