NSN 5340-01-146-6574 3000586, 01-146-6574, 011466574
Product Details | ANGLE BRACKET
5340-01-146-6574 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 3000586, 5340-01-146-6574, 01-146-6574, 5340011466574, 011466574
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 FEB 1983 | 01-146-6574 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-146-6574
Cross Reference | NSN 5340-01-146-6574
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3000586 | 15434 | CUMMINS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-146-6574
Related Products | NSN 5340-01-146-6574
Technical Data | NSN 5340-01-146-6574
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 6 ANGLE |
| III FIRST LEG LENGTH | 5.000 INCHES NOMINAL |
| III SECOND LEG LENGTH | 6.250 INCHES NOMINAL |
| III FIRST LEG THICKNESS | 0.500 INCHES NOMINAL |
| III SECOND LEG THICKNESS | 0.375 INCHES NOMINAL |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 115 CUT OUT |
| FIRST LEG WIDTH | 13.000 INCHES NOMINAL |
| FIRST LEG CUTOUT LENGTH | 3.500 INCHES NOMINAL |
| FIRST LEG CUTOUT WIDTH | 3.875 INCHES NOMINAL |

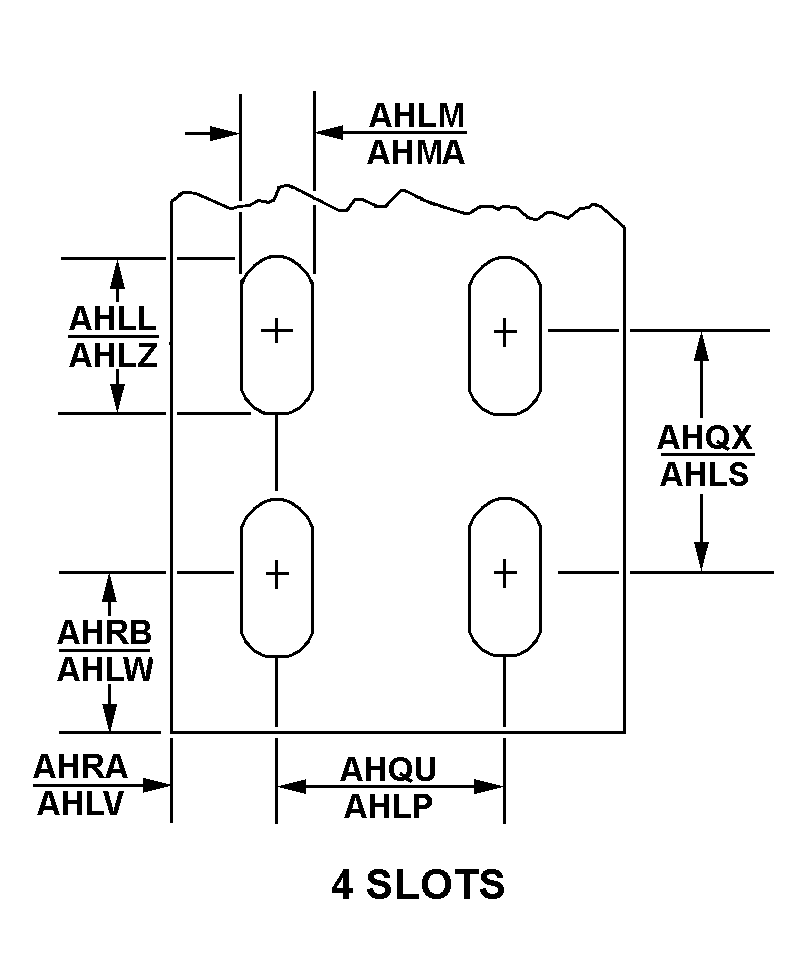

| FIRST LEG HOLE ARRANGEMENT STYLE | 210 4 SLOTS |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 7.250 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 2.000 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 1.125 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 1.000 INCHES NOMINAL |
| FIRST LEG SLOT LENGTH | 0.750 INCHES NOMINAL |
| FIRST LEG SLOT WIDTH | 0.625 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 SQUARE |
| SECOND LEG WIDTH | 7.500 INCHES NOMINAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 210 4 SLOTS |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 6.000 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 4.375 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.750 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.875 INCHES NOMINAL |
| SECOND LEG SLOT LENGTH | 1.000 INCHES NOMINAL |
| SECOND LEG SLOT WIDTH | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | FIRST LEG HAS 2 EACH 1/2 - 13 THREADED HOLES LOCATED 1.000 INCH FROM RIGHT EDGE HAVING A 2.500 INCH CENTER DISTANCE. SECOND LEG HAS 1 EACH 1.125 INCH O.D.X2.625 INCHES LONG ROUND STOCK WELDED TO BACK |
| III END ITEM IDENTIFICATION | 2815-01-086-1402 AND 2815-01-127-6841 MANIFOLD ASSEMBLIES,EXHAUST RISERS ON CUMMINS MODEL VT903M DIESEL ENGINES ONBOARD 41 FOOT CG VESSESL |
| MANUFACTURERS CODE | 15434 |
| DESIGN CONTROL REFERENCE | 3000586 |
