NSN 5340-01-135-6690 H24131188250, H2413-1-188-250, TL18003188250SR
Product Details | FLUSH CATCH
5340-01-135-6690 A positive fastening device having an integral flush lever or button actuator designed to be mounted so that when in locked position no portion protrudes above the exterior surface of the door, cover, or the like. Excludes CATCH (as modified) and LATCH (as modified).
Part Alternates: H24131188250, H2413-1-188-250, TL18003188250SR, TL18003-188-250SR, TL18008-188-250 SA, TL18008188250SA, 9M185A188250, 9M185A188-250, 5340-01-135-6690, 01-135-6690, 5340011356690, 011356690
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JUL 1982 | 01-135-6690 | 20262 ( CATCH, FLUSH ) |

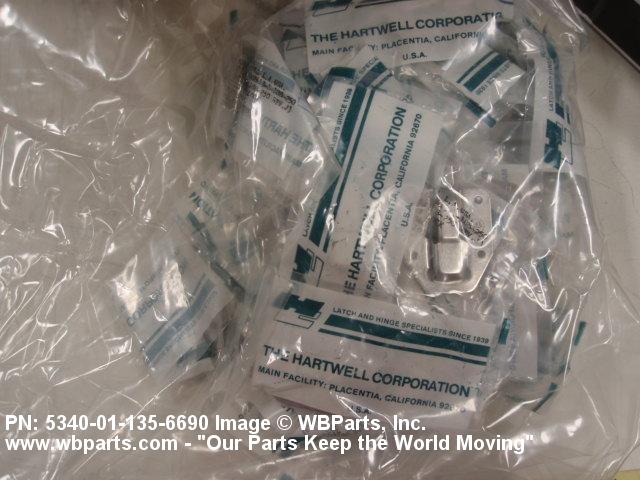

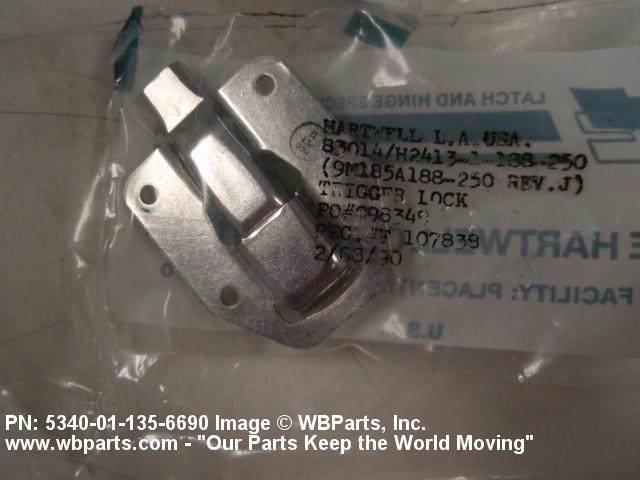

Drawings & Photos | NSN 5340-01-135-6690
Demand History | NSN 5340-01-135-6690
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-135-6690 | 2024-11-325 | 180 | US |
| 5340-01-135-6690 | 2020-08-238 | 8 | United States |
| H2413-1-188-250 | 2020-01-29 | 108 | DIBBS |
| TL18008-188-250 SA | 2020-01-29 | 108 | DIBBS |
| H2413-1-188-250 | 2019-02-55 | 78 | DIBBS |
| TL18008-188-250 SA | 2019-02-55 | 78 | DIBBS |
| 5340-01-135-6690 | 2016-10-299 | 128 | DIBBS |
| 5340-01-135-6690 | 2016-05-123 | 128 | DIBBS |
| 5340-01-135-6690 | 2013-03-72 | 120 | DIBBS |
| 5340-01-135-6690 | 2012-12-336 | 0 | DIBBS |
| 5340-01-135-6690 | 2012-09-261 | 32 | DIBBS |
| 5340-01-135-6690 | 2012-02-44 | 3 | US |
| 5340-01-135-6690 | 2010-08-216 | 50 | DIBBS |
| 5340-01-135-6690 | 2010-04-92 | 65 | DIBBS |
| 5340-01-135-6690 | 2009-12-351 | 12 | US |
| 5340-01-135-6690 | 2009-08-219 | 107 | DIBBS |
| 5340-01-135-6690 | 2009-05-146 | 49 | United States |
| 5340-01-135-6690 | 2009-05-146 | 50 | United States |
| 5340-01-135-6690 | 2009-05-135 | 50 | DIBBS |
| 5340-01-135-6690 | 2009-01-27 | 58 | DIBBS |
| 5340-01-135-6690 | 2008-11-322 | 46 | DIBBS |
Cross Reference | NSN 5340-01-135-6690
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-135-6690
Related Products | NSN 5340-01-135-6690
Technical Data | NSN 5340-01-135-6690
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 BOLT STEEL COMP 631 SPRING |
| SURFACE TREATMENT | PASSIVATE BOLT PASSIVATE PIN CADMIUM AND CHROMATE SPRING |
| STYLE DESIGNATOR | B1 FLUSH LEVER ACTUATOR |
| WIDTH | 1.855 INCHES MINIMUM AND 1.905 INCHES MAXIMUM |
| LENGTH | 2.146 INCHES MINIMUM AND 2.186 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.160 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.355 INCHES MINIMUM AND 1.405 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.123 INCHES MINIMUM AND 1.127 INCHES MAXIMUM |
| LEVER OFFSET DISTANCE | 0.188 INCHES NOMINAL |
| BOLT OFFSET DISTANCE | 0.250 INCHES NOMINAL |
| SPECIAL FEATURES | MATL:LEVER STEEL,PIN STEEL,BRACKET STEEL;BRACKET AND LEVER PASSIVATED |
| MANUFACTURERS CODE | 76301 |
| MFR SOURCE CONTROLLING REFERENCE | 9M185A188-250 |
Restrictions/Controls & Freight Information | NSN 5340-01-135-6690
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-135-6690
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
