NSN 5340-01-135-3718 101-121-088, 130618, 1306-18
Product Details | PIPE HANGER
5340-01-135-3718 A metallic or nonmetallic item designed to suspend, support, retain, and/or position items such as cable(s), conduit(s), pipe(s), tube(s), and the like from a structure. It may be fastened vertically or horizontally to the structure by means of rod(s), bolt(s), screw(s), and the like. Excludes CLAMP (1), LOOP; STRAP, RETAINING; CLAMP (1), ELECTRICAL; HANGER, WIRE STRAND, SUPPORT (1), ELECTRICAL CABLE; HANGER, CABLE; and hook, support.
Part Alternates: 101-121-088, 130618, 1306-18, 2inchIPSASSY130618, 2IPSASSY130618, 5340-01-135-3718, 01-135-3718, 5340011353718, 101121088, 011353718
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JUL 1982 | 01-135-3718 | 42764 ( HANGER, PIPE ) |
Drawings & Photos | NSN 5340-01-135-3718
Demand History | NSN 5340-01-135-3718
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-135-3718 | 2017-03-88 | 3 | DIBBS |
| 5340-01-135-3718 | 2017-03-80 | 3 | DIBBS |
| 5340-01-135-3718 | 2016-07-186 | 3 | DIBBS |
| 5340-01-135-3718 | 2014-02-36 | 2 | DIBBS |
| 5340-01-135-3718 | 2014-02-36 | 3 | DIBBS |
| 5340-01-135-3718 | 2014-01-20 | 2 | DIBBS |
| 5340-01-135-3718 | 2014-01-20 | 3 | DIBBS |
| 5340-01-135-3718 | 2013-10-287 | 2 | DIBBS |
| 5340-01-135-3718 | 2013-10-287 | 3 | DIBBS |
| 5340-01-135-3718 | 2013-04-118 | 2 | DIBBS |
| 5340-01-135-3718 | 2013-04-118 | 3 | DIBBS |
| 5340-01-135-3718 | 2013-03-74 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-135-3718
Technical Data | NSN 5340-01-135-3718
| Characteristic | Specifications |
|---|---|

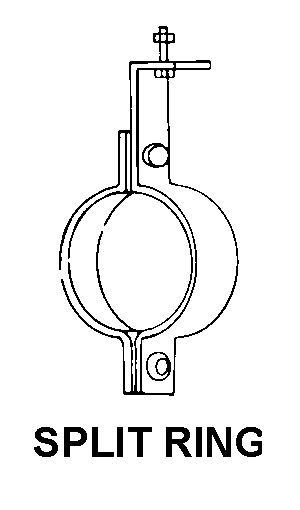

| STYLE DESIGNATOR | 13F SPLIT RING |
| SUPPORTED ITEM AND QUANTITY | 1 PIPE |
| PIPE ACCOMMODATION DIAMETER | 2.000 INCHES NOMINAL |
| SPECIAL FEATURES | 12.000 IN. O/A LG AND RUBBER INSERT ON LINER |
Restrictions/Controls & Freight Information | NSN 5340-01-135-3718
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105500 | HANGERS PIPE NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-135-3718
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
