NSN 5340-01-133-9530 10112651 , 74A4115812001, 74A411581-2001
Product Details | ANGLE BRACKET

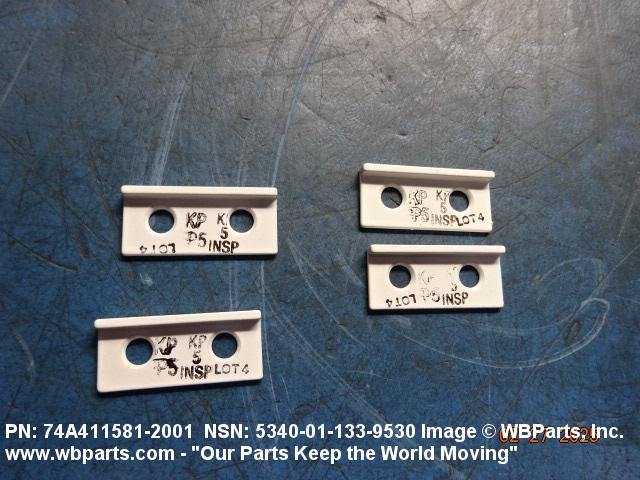

5340-01-133-9530 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 10112651 , 74A4115812001, 74A411581-2001, 5340-01-133-9530, 01-133-9530, 5340011339530, 011339530
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUN 1982 | 01-133-9530 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-133-9530
Demand History | NSN 5340-01-133-9530
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 74A4115812001 | 2024-11-318 | 2 | us |
| 74A4115812001 | 2024-11-306 | 2 | us |
| 74A4115812001 | 2024-10-303 | 2 | us |
| 5340-01-133-9530 | 2024-05-144 | 80 | DIBBS |
| 5340-01-133-9530 | 2024-01-04 | 80 | DIBBS |
| 5340-01-133-9530 | 2023-08-233 | 35 | DIBBS |
| 5340-01-133-9530 | 2023-08-220 | 35 | DIBBS |
| 5340-01-133-9530 | 2020-06-163 | 73 | DIBBS |
| 5340-01-133-9530 | 2013-10-274 | 48 | DIBBS |
| 5340-01-133-9530 | 2013-06-170 | 38 | DIBBS |
| 74A4115812001 | 2013-02-51 | 1 | US |
| 5340-01-133-9530 | 2010-01-19 | 20 | DIBBS |
| 5340-01-133-9530 | 2009-10-278 | 5 | DIBBS |
| 5340-01-133-9530 | 2009-02-37 | 13 | DIBBS |
| 5340-01-133-9530 | 2008-08-221 | 24 | DIBBS |
| 5340-01-133-9530 | 2008-06-164 | 14 | DIBBS |
| 5340-01-133-9530 | 2008-03-91 | 3 | DIBBS |
Cross Reference | NSN 5340-01-133-9530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A411581-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-133-9530
Related Products | NSN 5340-01-133-9530
Technical Data | NSN 5340-01-133-9530
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MMS-159 TEMPER T7351,FSCM 76301 MFR REF SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| III FIRST LEG LENGTH | 0.220 INCHES NOMINAL |
| III SECOND LEG LENGTH | 0.520 INCHES NOMINAL |

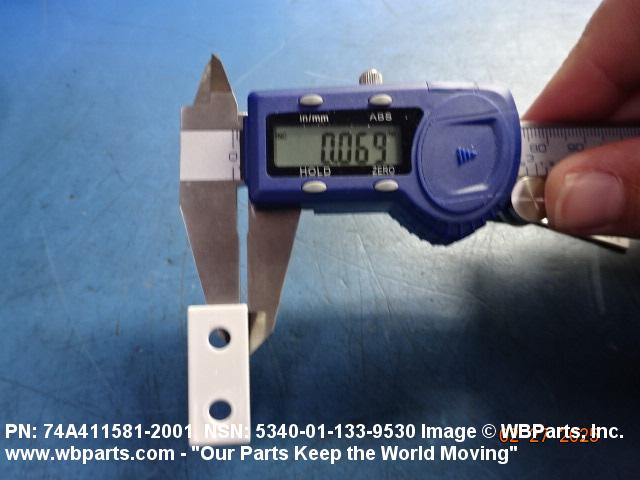

| III FIRST LEG THICKNESS | 0.063 INCHES NOMINAL |

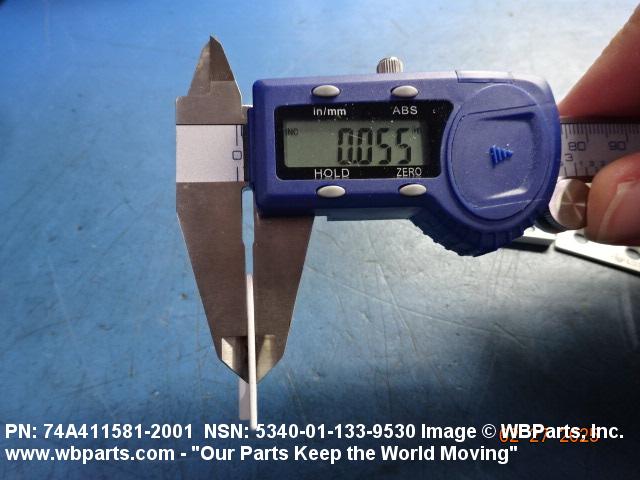

| III SECOND LEG THICKNESS | 0.050 INCHES NOMINAL |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 104 |
| FIRST LEG WIDTH | 1.190 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 131 |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 |
| SECOND LEG WIDTH | 1.190 INCHES NOMINAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 133 |

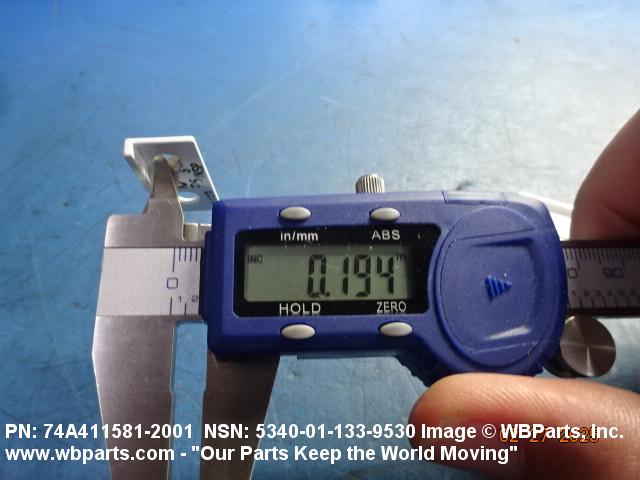

| SECOND LEG HOLE DIAMETER | 0.196 INCHES MINIMUM AND 0.202 INCHES MAXIMUM |

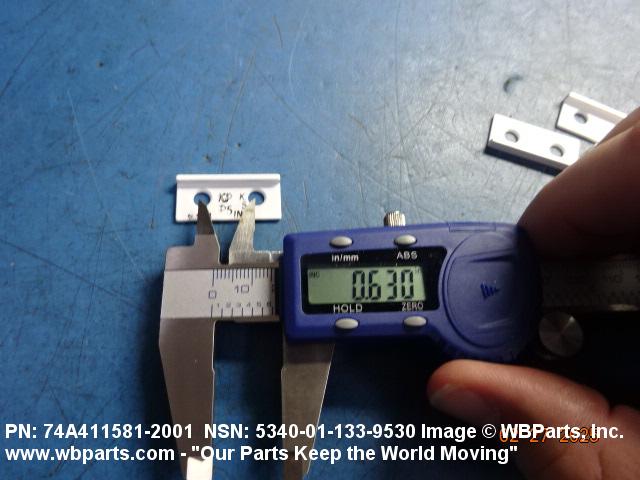

| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 0.620 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |

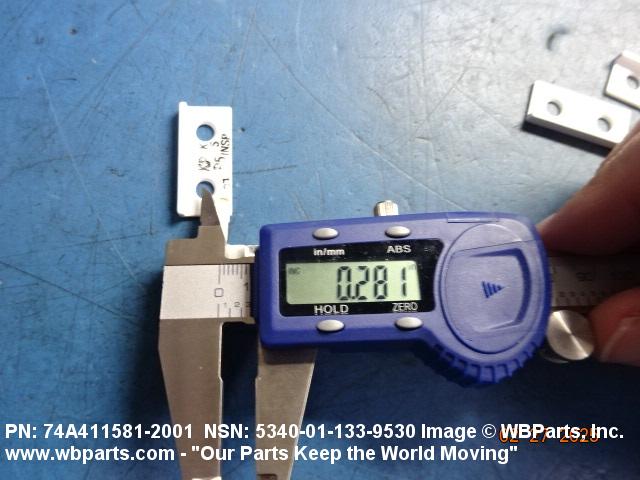

| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.270 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.270 INCHES MINIMUM AND 0.275 INCHES MAXIMUM |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 74A411581-2001 |
Restrictions/Controls & Freight Information | NSN 5340-01-133-9530
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-133-9530
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
