NSN 5340-01-126-3012 MB5699253001, MB569925-300-1, MBS699253001
Product Details | LOOP CLAMP
5340-01-126-3012 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MB5699253001, MB569925-300-1, MBS699253001, MBS69925-300-1, C4503001, C450-300-1, 11731481, 11731-48-1, 26773001, 2677-300-1, 979481, 979-48-1, 5340-01-126-3012, 01-126-3012, 5340011263012, 011263012
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 FEB 1982 | 01-126-3012 | 17532 ( CLAMP, LOOP ) |

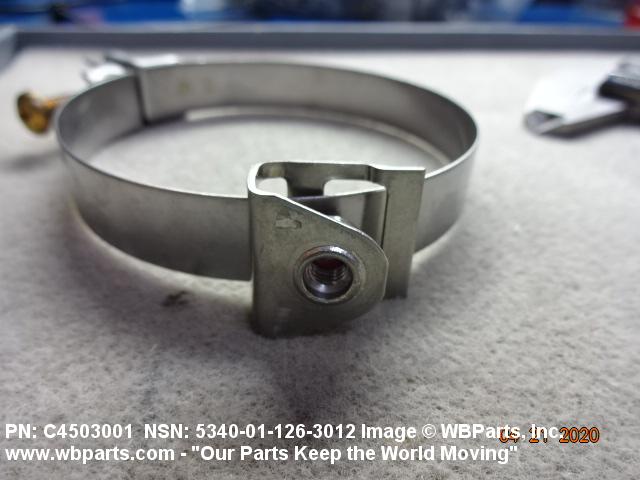

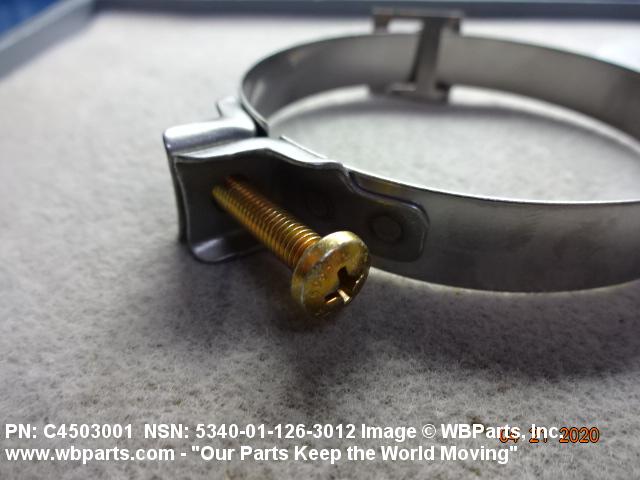

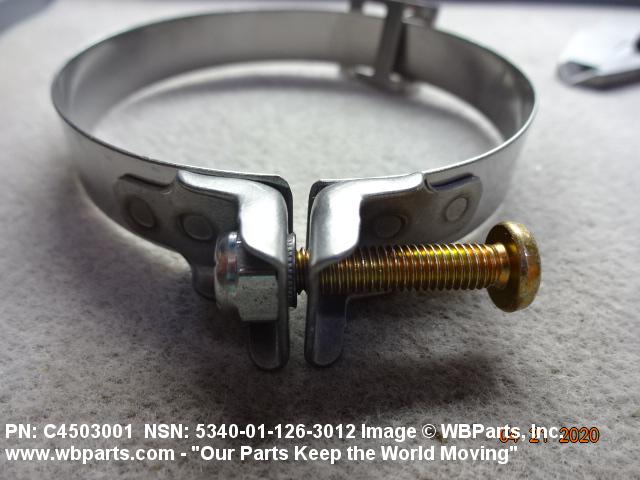

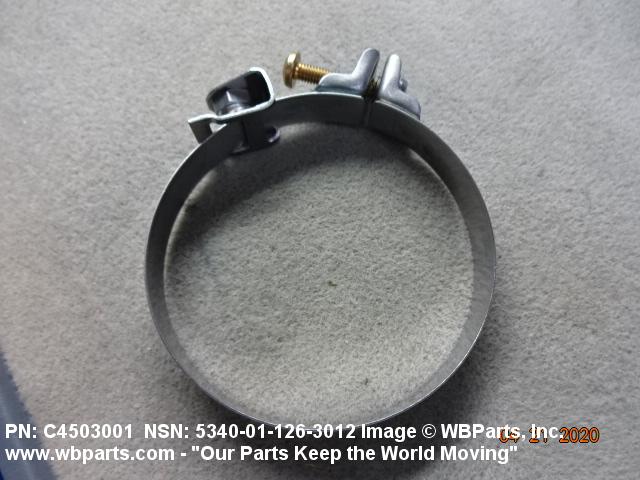

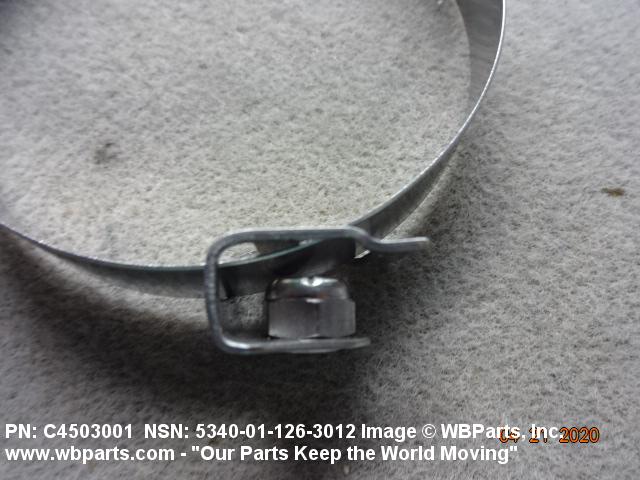

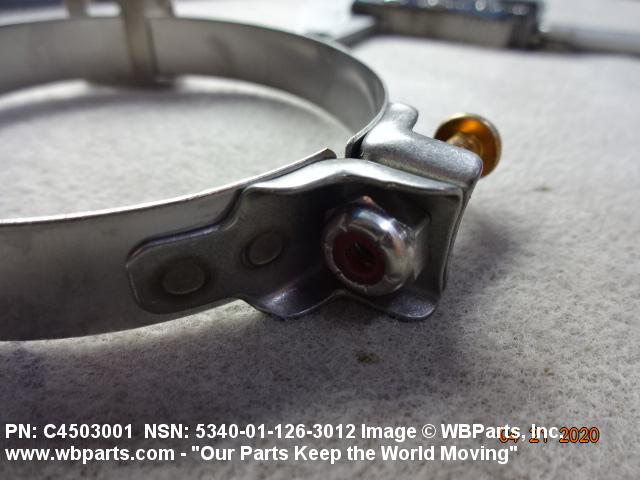

Drawings & Photos | NSN 5340-01-126-3012
Demand History | NSN 5340-01-126-3012
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-126-3012 | 2024-10-288 | 1000 | DIBBS |
| 5340-01-126-3012 | 2024-09-256 | 656 | DIBBS |
| 11731481 | 2024-08-243 | 7 | Japan |
| 26773001 | 2024-08-243 | 7 | Japan |
| C4503001 | 2024-08-243 | 7 | Japan |
| MBS699253001 | 2024-08-243 | 7 | Japan |
| 5340-01-126-3012 | 2024-08-235 | 304 | DIBBS |
| 5340-01-126-3012 | 2024-08-231 | 302 | DIBBS |
| 5340-01-126-3012 | 2024-05-123 | 323 | DIBBS |
| 5340-01-126-3012 | 2024-01-25 | 78 | DIBBS |
| 5340-01-126-3012 | 2023-11-334 | 304 | DIBBS |
| 5340-01-126-3012 | 2023-07-194 | 185 | DIBBS |
| 5340-01-126-3012 | 2023-05-138 | 124 | DIBBS |
| 11731481 | 2020-04-104 | 25 | United States |
| C4503001 | 2020-04-104 | 25 | United States |
| 5340-01-126-3012 | 2018-10-289 | 198 | DIBBS |
| 5340-01-126-3012 | 2018-06-157 | 1 | DIBBS-RFPs |
| 5340-01-126-3012 | 2015-12-335 | 15 | Turkey |
| 5340-01-126-3012 | 2015-11-306 | 410 | DIBBS |
| 5340-01-126-3012 | 2015-02-55 | 375 | DIBBS |
| 5340-01-126-3012 | 2014-07-204 | 343 | DIBBS |
| 5340-01-126-3012 | 2014-01-01 | 293 | DIBBS |
| 5340-01-126-3012 | 2013-11-321 | 232 | DIBBS |
| 5340-01-126-3012 | 2013-07-197 | 219 | DIBBS |
| 5340-01-126-3012 | 2013-04-100 | 443 | DIBBS |
| 5340-01-126-3012 | 2012-11-309 | 270 | DIBBS |
| 5340-01-126-3012 | 2011-12-343 | 278 | DIBBS |
| 5340-01-126-3012 | 2011-07-192 | 200 | DIBBS |
| 5340-01-126-3012 | 2011-06-174 | 321 | DIBBS |
| 5340-01-126-3012 | 2011-04-112 | 168 | DIBBS |
| 5340-01-126-3012 | 2010-12-357 | 203 | DIBBS |
| 5340-01-126-3012 | 2010-12-341 | 204 | DIBBS |
| 5340-01-126-3012 | 2010-07-189 | 204 | DIBBS |
| 5340-01-126-3012 | 2010-01-06 | 172 | DIBBS |
| 5340-01-126-3012 | 2009-10-289 | 400 | DIBBS |
| 5340-01-126-3012 | 2009-08-233 | 256 | DIBBS |
| 5340-01-126-3012 | 2009-07-191 | 207 | DIBBS |
| 5340-01-126-3012 | 2009-04-105 | 142 | DIBBS |
| 5340-01-126-3012 | 2009-01-27 | 500 | DIBBS |

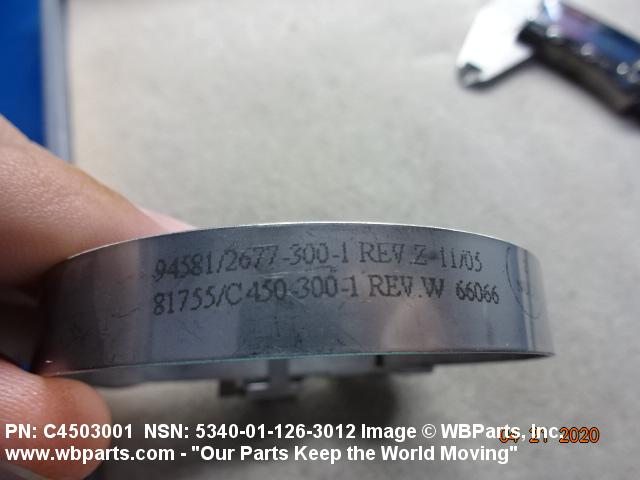

Cross Reference | NSN 5340-01-126-3012
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11731-48-1 | 83930 | TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL |
| 2677-300-1 | 94581 | V I J CORPORATION DBA NUCO |
| 979-48-1 | 83930 | TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL |
| C450-300-1 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| MB569925-300-1 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MBS69925-300-1 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-126-3012
Related Products | NSN 5340-01-126-3012
Technical Data | NSN 5340-01-126-3012
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| STYLE DESIGNATOR | A44 CENTER MOUNT |

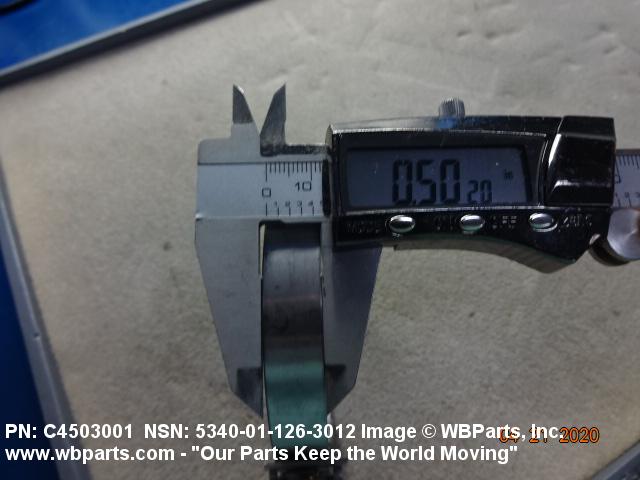

| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.890 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | ANY ACCEPTABLE |

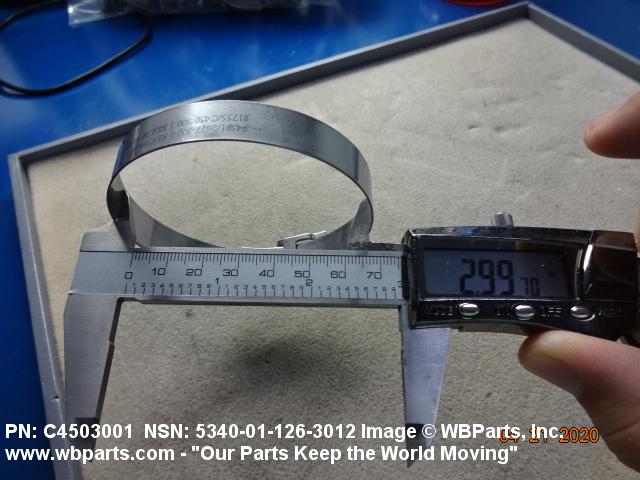

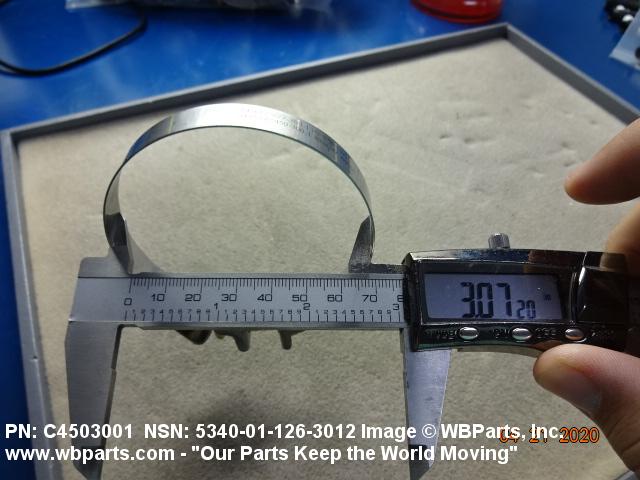

| LOOP INSIDE DIAMETER | 3.000 INCHES NOMINAL |
| FASTENING DEVICE TYPE | LUG |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM |
| INTEGRAL NUT TYPE AND QUANTITY | 1 SELF-LOCKING LUG |
| CUSHIONING ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 83930 |
| DESIGN CONTROL REFERENCE | 11731-48-1 |
Restrictions/Controls & Freight Information | NSN 5340-01-126-3012
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-126-3012
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
