NSN 5340-01-111-3898 NAS17953, NAS1795-3, 01-111-3898
Product Details | RETAINING CLIP
5340-01-111-3898 A clip formed from resilient wire stock into a shape resembling the letter U, with each of the prongs having one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action when fitted into the groove(s) or notch(es) of the item upon which a part, shaft, pin, or a like item is to be held in place. See also PIN, LOCK; RING, RETAINING and CLIP, SPRING TENSION. For items specifically designed for aviaton, see CLIP(1), RETAINING, AVIATION.
Part Alternates: NAS17953, NAS1795-3, 5340-01-111-3898, 01-111-3898, 5340011113898, 011113898
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1981 | 01-111-3898 | 02385 ( CLIP, RETAINING ) |

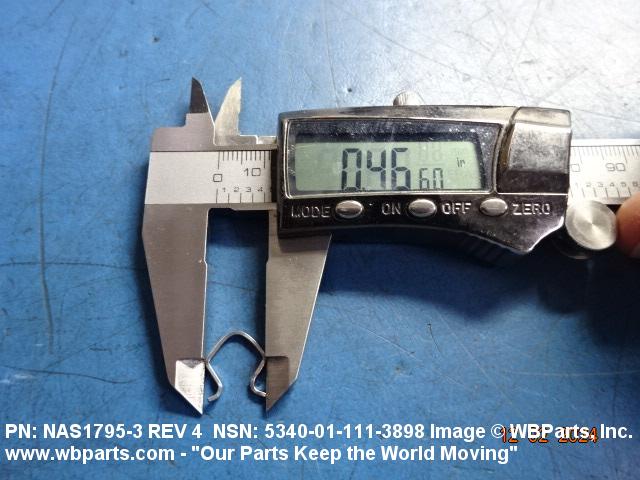

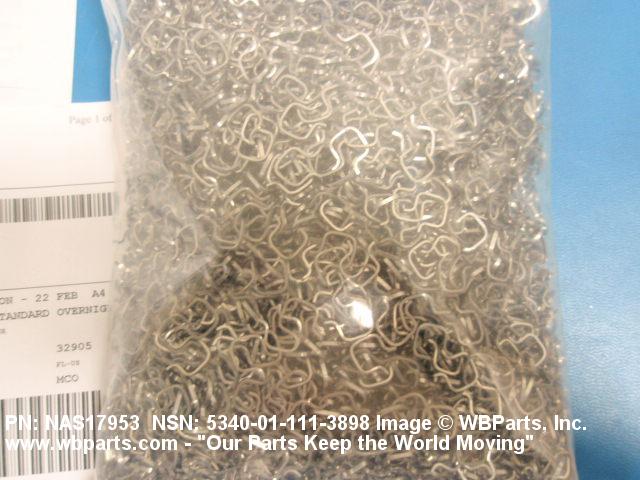

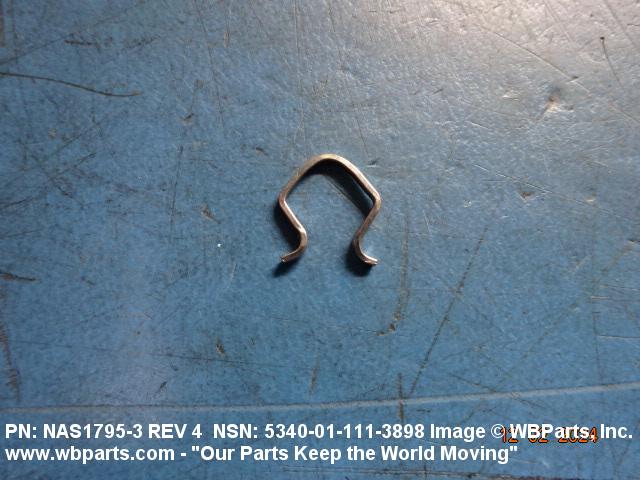

Drawings & Photos | NSN 5340-01-111-3898
Demand History | NSN 5340-01-111-3898
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-111-3898 | 2024-11-327 | 4400 | United States |
| NAS17953 | 2023-05-130 | 800 | us |
| NAS17953 | 2019-12-340 | 60 | US |
| NAS17953 | 2019-12-340 | 120 | US |
| 5340-01-111-3898 | 2019-06-177 | 5000 | us |
| 5340-01-111-3898 | 2018-08-241 | 3123 | DIBBS |
| 5340-01-111-3898 | 2017-12-353 | 3500 | DIBBS |
| 5340-01-111-3898 | 2017-12-344 | 3500 | DIBBS |
| 5340-01-111-3898 | 2017-06-160 | 10000 | Taiwan |
| 5340-01-111-3898 | 2017-06-160 | 10000 | Taiwan |
| 5340-01-111-3898 | 2016-07-196 | 2000 | Taiwan |
| 5340-01-111-3898 | 2014-11-316 | 50 | China |
| 5340-01-111-3898 | 2013-10-288 | 100 | UK |
| 5340-01-111-3898 | 2013-08-240 | 1000 | UK |
| 5340-01-111-3898 | 2013-07-200 | 2318 | DIBBS |
| 5340-01-111-3898 | 2013-07-185 | 2318 | DIBBS |
| 5340-01-111-3898 | 2013-06-156 | 2318 | DIBBS |
| NAS17953 | 2010-02-41 | 5500 | United States |
| 5340-01-111-3898 | 2010-02-41 | 2000 | United States |
| 5340-01-111-3898 | 2010-01-06 | 5500 | United States |
| NAS17953 | 2008-05-134 | 300 | US |
Cross Reference | NSN 5340-01-111-3898
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1795-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-111-3898
Related Products | NSN 5340-01-111-3898
Technical Data | NSN 5340-01-111-3898
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, 18-2MN, ARMCO STEEL CORP OR STEEL, AMS 5688, COMP 302 |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| STYLE DESIGNATOR | A1 PIN |
| WIDTH | 0.414 INCHES MINIMUM AND 0.434 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.560 INCHES NOMINAL |
| STOCK DIAMETER | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-01-111-3898
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094220 | CLIPS SHEET STEEL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZS | Denmark ZT ZU |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-111-3898
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
