NSN 5340-01-109-6963 12295202, 01-109-6963, 011096963
Product Details | MANUAL CONTROL LEVER
5340-01-109-6963 A rigid item of various shapes and cross-sections, specifically designed to manually actuate and/or regulate a variety of mechanisms. It usually has an integral handgrip, knob, or the like, or provisions for the mounting of the same. It may have accommodations for locking and/or positioning. The point of fulcrum may be an integral shaft perpendicular to the axis or a through hole to provide a definite means of securing, and usually has additional accommodation(s) for attachment of CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; and CLEVIS, ROD END; etc.. Excludes ARM (as modified); LEVER, REMOTE CONTROL; and BELL CRANK.20511150037Nuclear Warheads and Warhead Sections11250026Nuclear Demolition Charges11900057Specialized Test and Handling Equipment, Nuclear Ordnance30400042Miscellaneous Power Transmission Equipment53400020Hardware, Commercial
Part Alternates: 12295202, 5340-01-109-6963, 01-109-6963, 5340011096963, 011096963
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 MAR 1981 | 01-109-6963 | 61447 ( LEVER, MANUAL CONTROL ) |

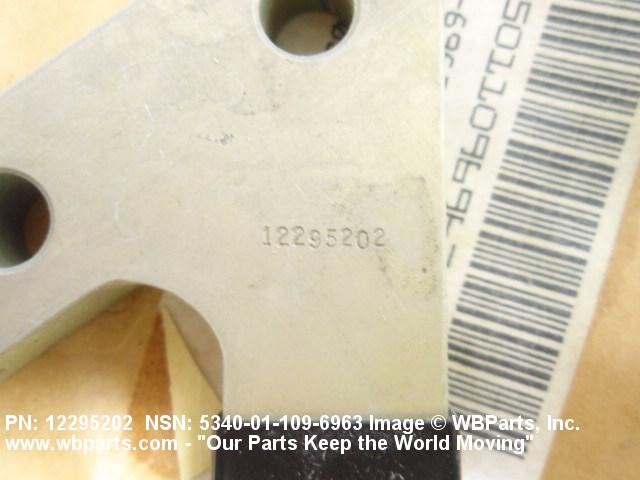

Drawings & Photos | NSN 5340-01-109-6963
Demand History | NSN 5340-01-109-6963
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-109-6963 | 2021-03-90 | 25 | DIBBS |
| 5340-01-109-6963 | 2020-10-281 | 9 | DIBBS |
| 5340-01-109-6963 | 2020-04-103 | 37 | DIBBS |
| 5340-01-109-6963 | 2019-11-309 | 29 | DIBBS |
| 5340-01-109-6963 | 2019-05-126 | 29 | DIBBS |
| 5340-01-109-6963 | 2015-05-133 | 48 | DIBBS |
| 5340-01-109-6963 | 2014-08-218 | 38 | DIBBS |
| 5340-01-109-6963 | 2014-07-203 | 38 | DIBBS |
| 12295202 | 2013-05-142 | 9 | United States |
| 5340-01-109-6963 | 2013-03-77 | 24 | DIBBS |
| 5340-01-109-6963 | 2012-05-150 | 26 | DIBBS |
| 12295202 | 2010-10-277 | 15 | United States |
Cross Reference | NSN 5340-01-109-6963
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12295202 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-109-6963
Technical Data | NSN 5340-01-109-6963
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | MATL: STEEL,CARBON 1010 THRU 1025SPEC ASTM A576 OR STEEL,CARBON 1010 THRU 1025 SPEC ASTM A108 OR INVESTMENTCASTING,STEEL 1C-1020 OR 1C-1030 SPEC MIL-S-22141; CADMIUM PLATE,TYPE II,CLASS 3,SPEC QQ-P-416; OVERALL DIMENSIONS ARE LG 4.267 IN.; WD 2.900 IN.; T 0.558 IN. MIN 0.563 IN. MAX |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12295202 |
Restrictions/Controls & Freight Information | NSN 5340-01-109-6963
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-109-6963
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
