NSN 5340-01-102-8508 ST9M580101, ST9M580-101, ST9M580AC1L
Product Details | ANGLE BRACKET
5340-01-102-8508 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: ST9M580101, ST9M580-101, ST9M580AC1L, ST9M580C1L, 10117628 , 5340-01-102-8508, 01-102-8508, 5340011028508, 011028508
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 OCT 1980 | 01-102-8508 | 16900 ( BRACKET, ANGLE ) |

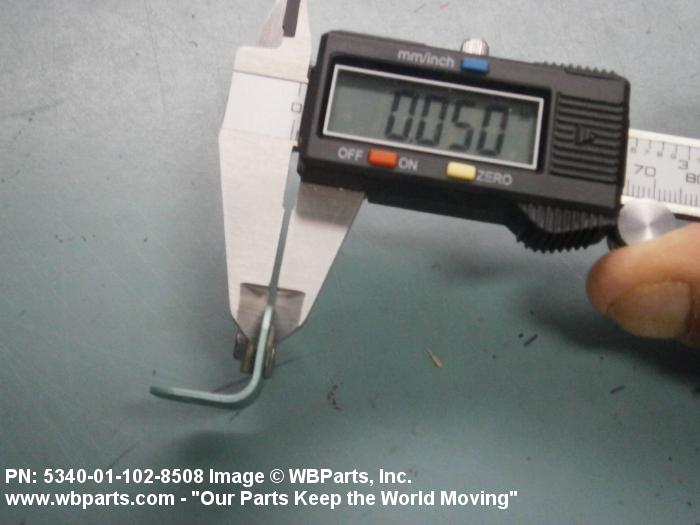

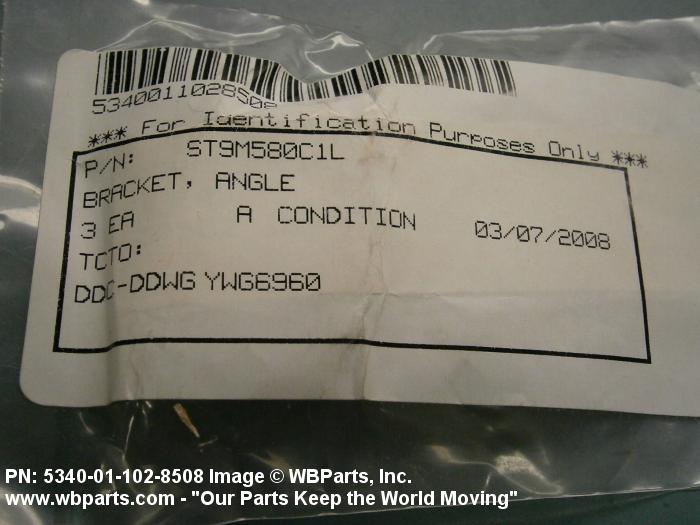

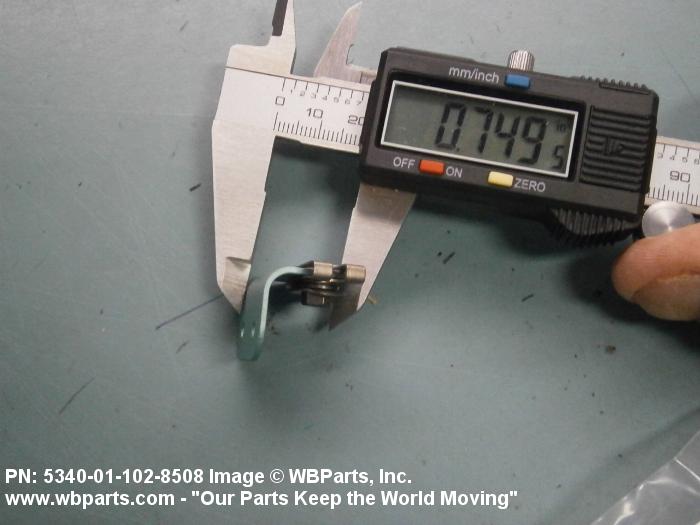

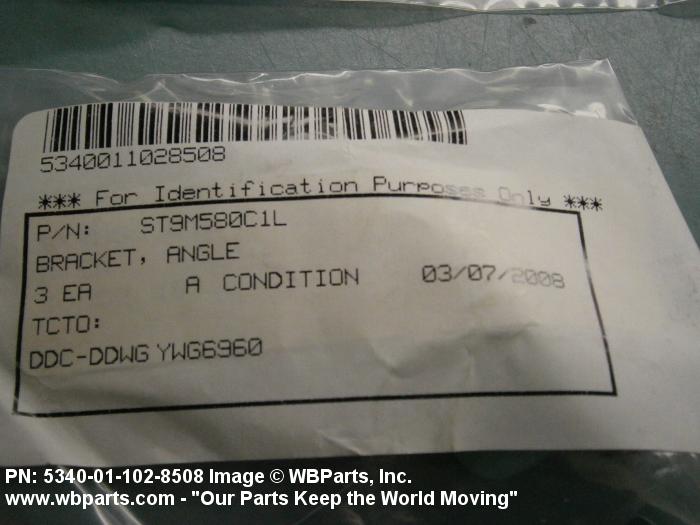

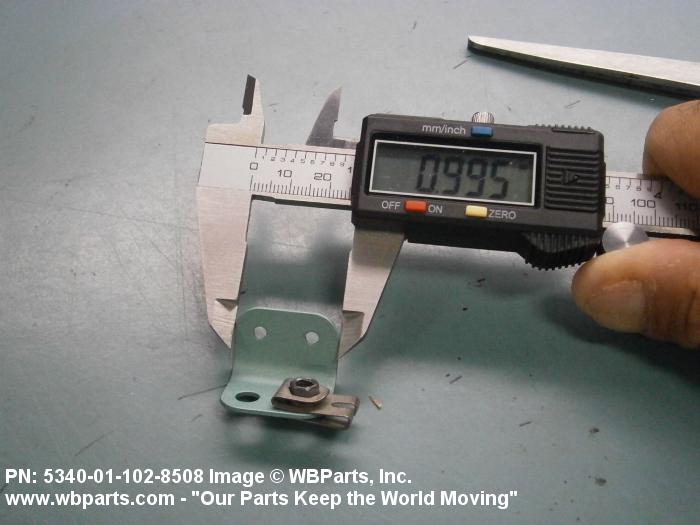

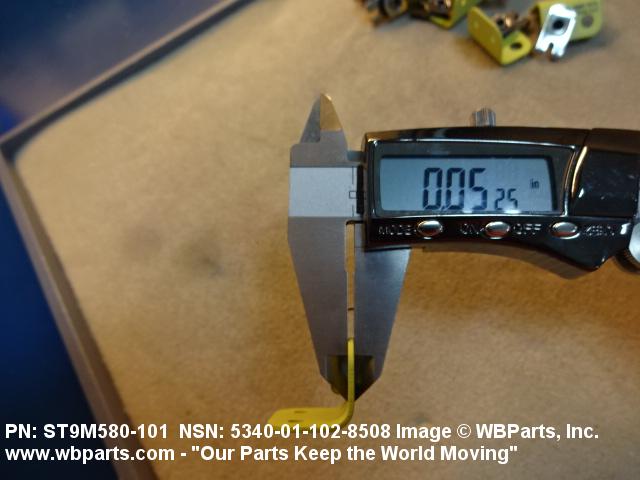

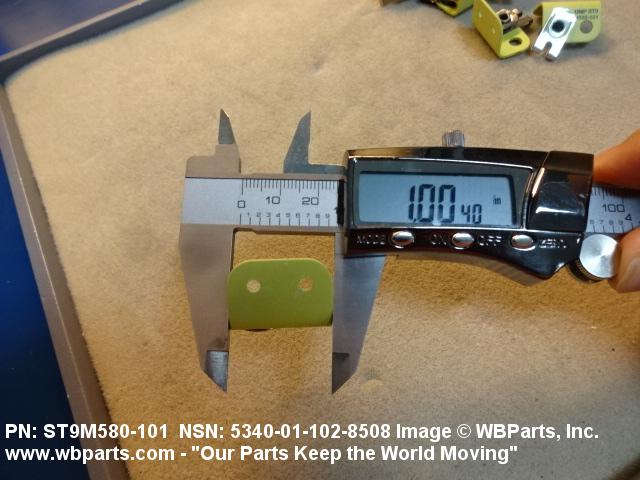

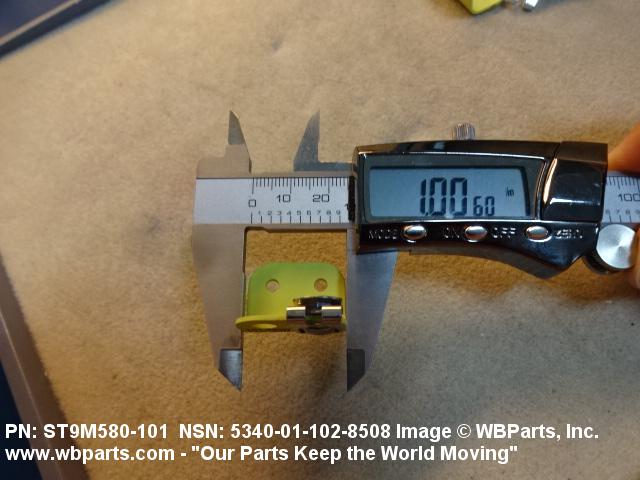

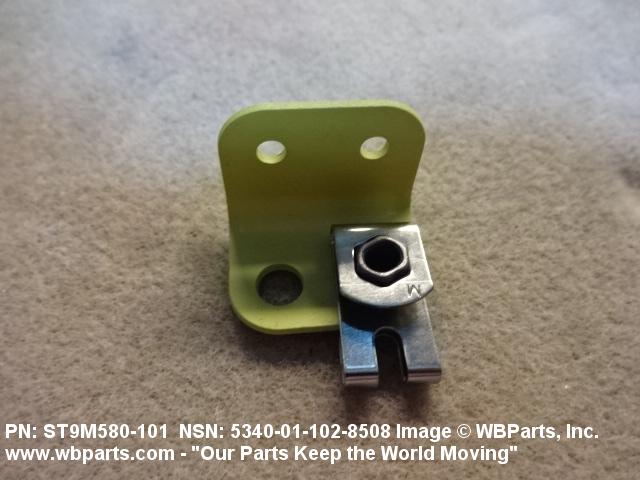

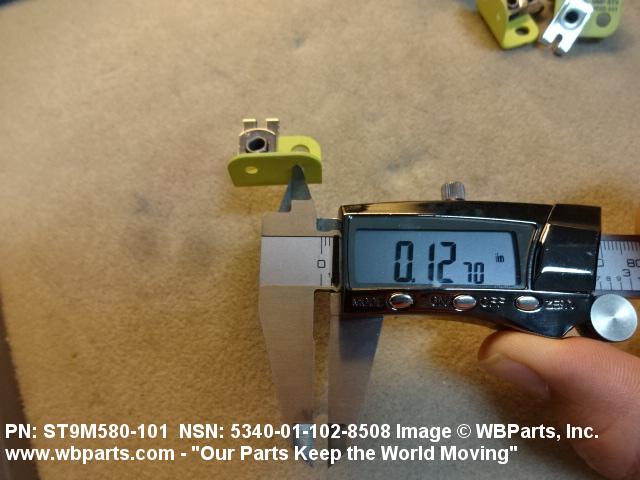

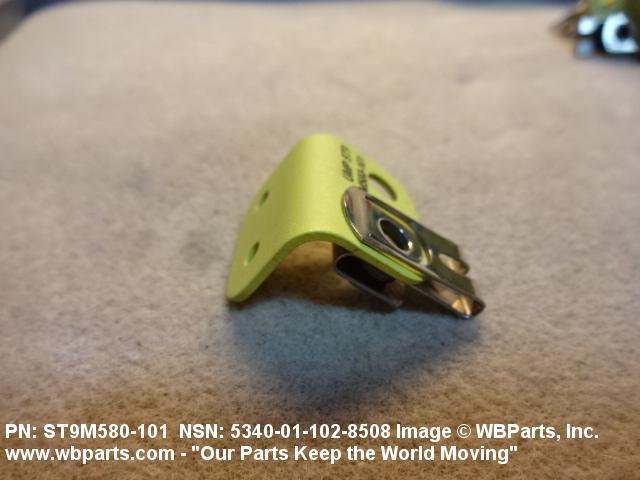

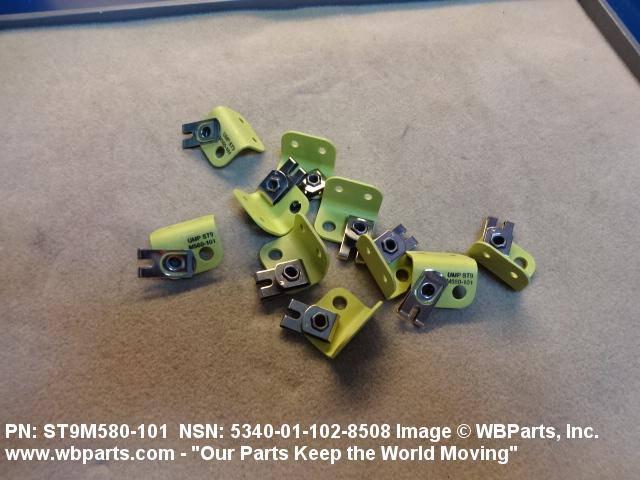

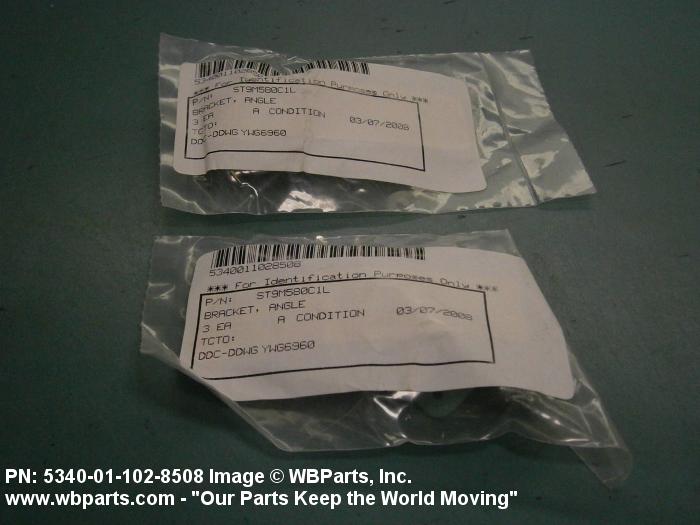

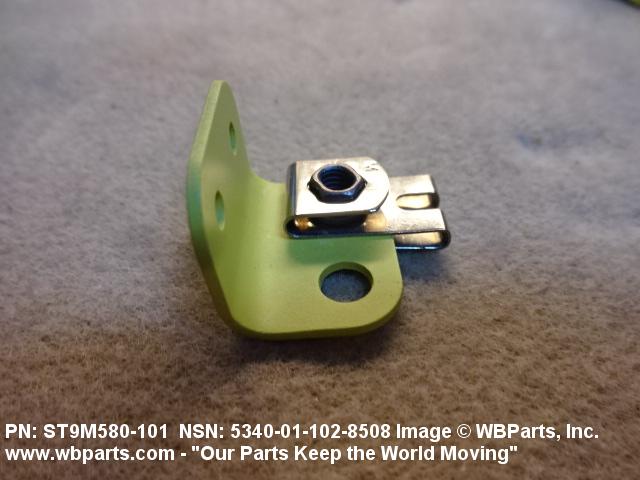

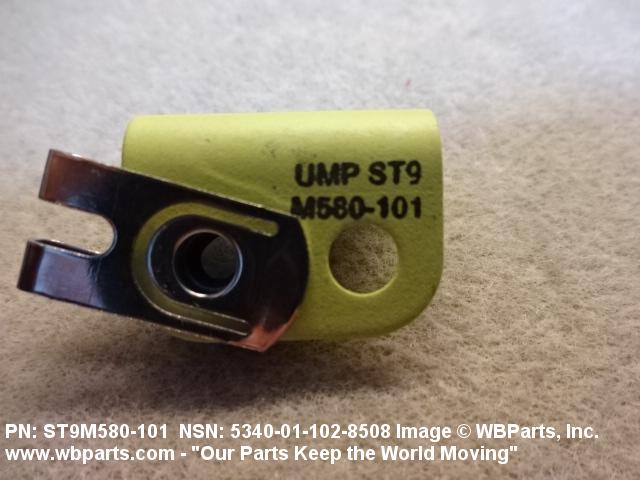

Drawings & Photos | NSN 5340-01-102-8508
Demand History | NSN 5340-01-102-8508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-102-8508 | 2024-03-84 | 3 | DIBBS |
| 5340-01-102-8508 | 2023-11-316 | 95 | DIBBS |
| 5340-01-102-8508 | 2023-03-80 | 54 | DIBBS |
| 5340-01-102-8508 | 2023-01-11 | 246 | DIBBS |
| 5340-01-102-8508 | 2022-03-90 | 51 | DIBBS |
| 5340-01-102-8508 | 2021-08-227 | 44 | DIBBS |
| 5340-01-102-8508 | 2020-10-300 | 20 | DIBBS |
| 5340-01-102-8508 | 2020-10-281 | 9 | DIBBS |
| ST9M580101 | 2018-12-362 | 10 | us |
| ST9M580101 | 2017-07-193 | 138 | US |
| 5340-01-102-8508 | 2015-11-329 | 124 | US |
| 5340-01-102-8508 | 2014-08-217 | 100 | United States |
| ST9M580C1L | 2014-01-03 | 50 | US |
| 5340-01-102-8508 | 2013-08-241 | 6 | United States |
| ST9M580C1L | 2012-07-208 | 38 | United States |
Cross Reference | NSN 5340-01-102-8508
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-102-8508
Related Products | NSN 5340-01-102-8508
Technical Data | NSN 5340-01-102-8508
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,T81 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PAINT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-23377 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |

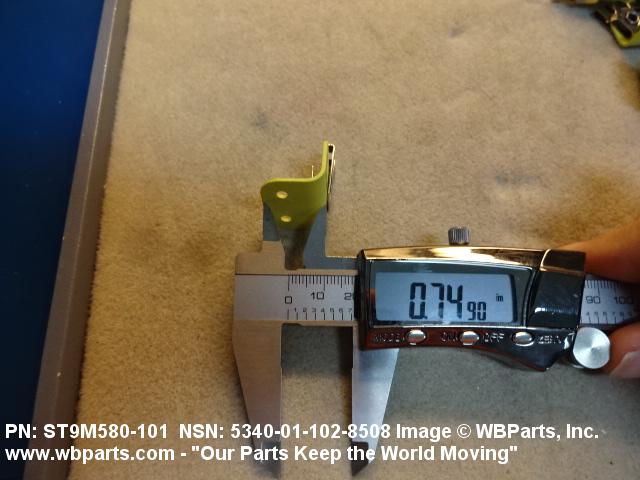

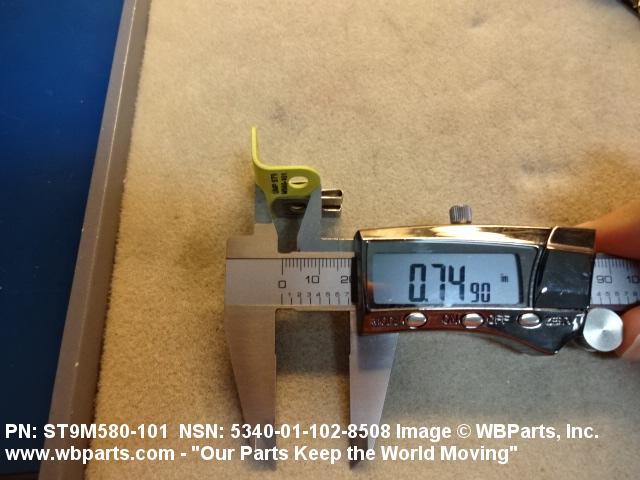

| FIRST LEG LENGTH | 0.750 INCHES NOMINAL |
| SECOND LEG LENGTH | 0.750 INCHES NOMINAL |

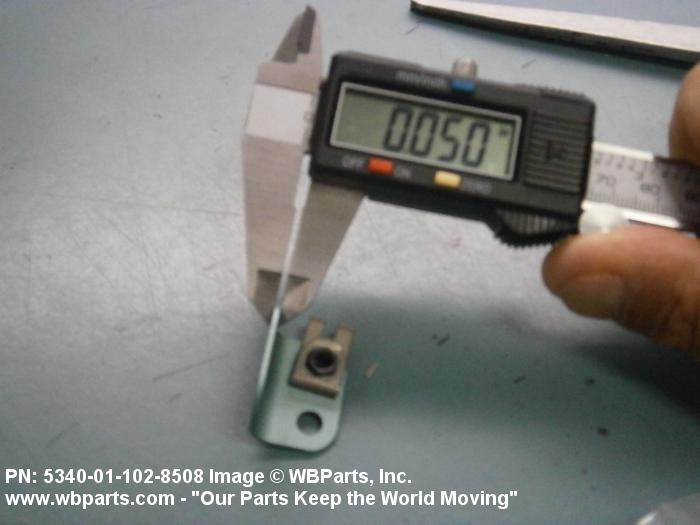

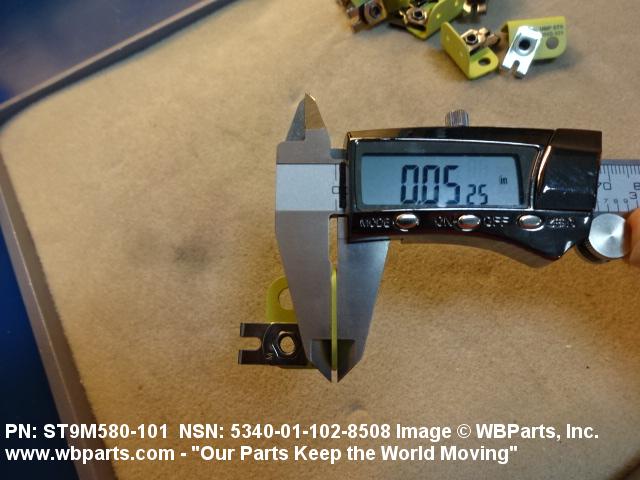

| FIRST LEG THICKNESS | 0.050 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.050 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 105 CORNER RADIUS |
| FIRST LEG WIDTH | 0.980 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |

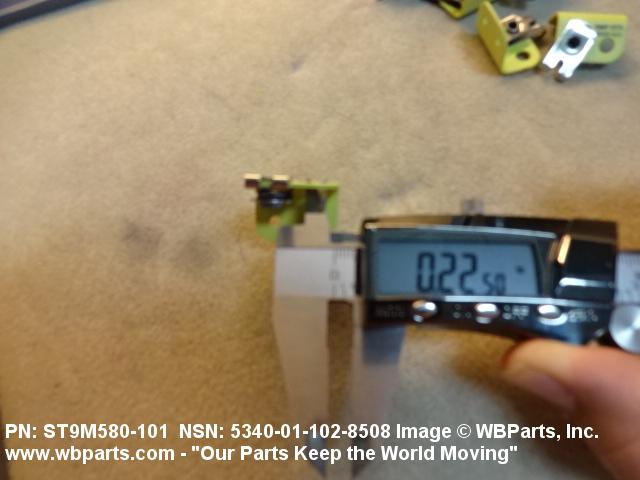

| FIRST LEG CORNER RADIUS | 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| SECOND LEG WIDTH | 0.980 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |
| SECOND LEG CORNER RADIUS | 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| FIRST LEG HOLE ARRANGEMENT STYLE | 133 TWO HOLES |
| FIRST LEG HOLE DIAMETER | 0.129 INCHES MINIMUM AND 0.134 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| SECOND LEG HOLE DIAMETER | 0.220 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.230 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 105 CORNER RADIUS |
| SECOND LEG HOLE ARRANGEMENT STYLE | 133 TWO HOLES |
| (NON-CORE DATA) FABRICATION METHOD | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | ST9M580C1L |
Restrictions/Controls & Freight Information | NSN 5340-01-102-8508
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-102-8508
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
