NSN 5340-01-102-4462 250-4642236 ITEM 2, 2504642236ITEM2, 87725-2302 ITEM 2
Product Details | PAD EYE
5340-01-102-4462 A rigid, metal, platelike item with an edgewise projection containing one or more openings. The opening is usually round or elliptical in shape. It is normally welded, bolted, or otherwise fixed to a structure. It is used as a catch or point of attachment for other items such as hooks, rope, and the like. Excludes, STAPLE, HASP; STRIKE, CATCH; and BRACKET, EYE, NON ROTATING SHAFT. See also ADAPTER (1), AIRCRAFT MOORING; ADAPTER (1), AIRCRAFT TOWING; TOWING EYE, AIRCRAFT; BOLT, EYE; COUPLER (as modified); and HASP, HINGED.20220400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: 250-4642236 ITEM 2, 2504642236ITEM2, 87725-2302 ITEM 2, 877252302ITEM2, 5340-01-102-4462, 01-102-4462, 5340011024462, 011024462
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 OCT 1980 | 01-102-4462 | 15650 ( PAD EYE ) |

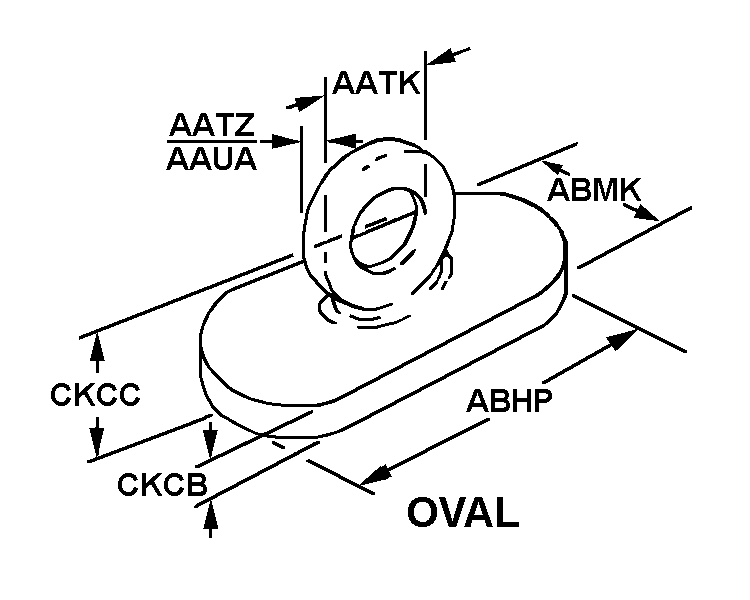

Drawings & Photos | NSN 5340-01-102-4462
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-102-4462
Technical Data | NSN 5340-01-102-4462
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | K3 OVAL |
| EYE INSIDE DIAMETER | 2.250 INCHES NOMINAL |
| EYE STOCK THICKNESS | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 6.250 INCHES NOMINAL |
| OVERALL WIDTH | 6.250 INCHES NOMINAL |
| PAD THICKNESS | 1.250 INCHES NOMINAL |
| DISTANCE BETWEEN EYE CENTERLINE AND PAD BOTTOM | 3.750 INCHES NOMINAL |
| MOUNTING FACILITY QUANTITY | 4 |
| MOUNTING FACILITY DIAMETER | 0.810 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-01-102-4462
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-102-4462
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
