NSN 5340-01-101-6507 CA1317006210FSK, CA13170-06-2-10FSK, CA13766210
Product Details | FLARE LOCK FASTENER
5340-01-101-6507 A shouldered hollow screw and threaded sleeve assembly, designed to be fastened in place by turning the screw, causing one end of the sleeve to flare over the shoulder and against the material through which it has been inserted. Also, a countersunk head hollow screw and flared sleeve-nut assembly, designed to mate with a dimpled hole in the material to which it is fastened. The hollow screws may also have internal threads for attaching screws. See also SHIELD, EXPANSION.
Part Alternates: CA1317006210FSK, CA13170-06-2-10FSK, CA13766210, CA1376-6-2-10, 14517007, 14517-007, 5340-01-101-6507, 01-101-6507, 5340011016507, 011016507
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 OCT 1980 | 01-101-6507 | 20259 ( FASTENER, FLARE LOCK ) |
Drawings & Photos | NSN 5340-01-101-6507
Cross Reference | NSN 5340-01-101-6507
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14517-007 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
| CA13170-06-2-10FSK | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CA13170-06-2-10FSK | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| CA1376-6-2-10 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-101-6507
Technical Data | NSN 5340-01-101-6507
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

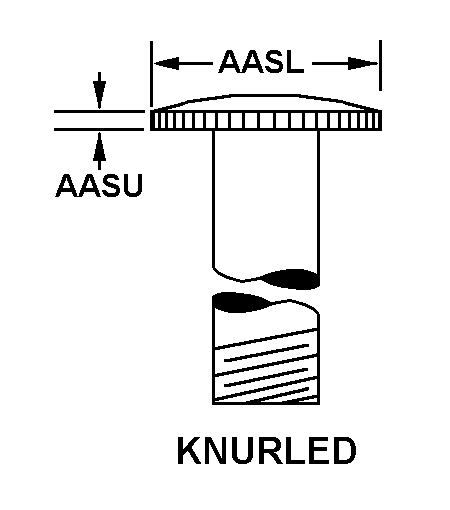

| HEAD STYLE | U9 KNURLED |
| HEAD DIAMETER | 0.248 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| HEAD HEIGHT | 0.175 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | W1 SLOT |
Restrictions/Controls & Freight Information | NSN 5340-01-101-6507
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
