NSN 5340-01-099-7811 SMC447095, SM-C-447095, 01-099-7811
Product Details | FLARE LOCK FASTENER
5340-01-099-7811 A shouldered hollow screw and threaded sleeve assembly, designed to be fastened in place by turning the screw, causing one end of the sleeve to flare over the shoulder and against the material through which it has been inserted. Also, a countersunk head hollow screw and flared sleeve-nut assembly, designed to mate with a dimpled hole in the material to which it is fastened. The hollow screws may also have internal threads for attaching screws. See also SHIELD, EXPANSION.
Part Alternates: SMC447095, SM-C-447095, 5340-01-099-7811, 01-099-7811, 5340010997811, 010997811
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 AUG 1980 | 01-099-7811 | 20259 ( FASTENER, FLARE LOCK ) |
Drawings & Photos | NSN 5340-01-099-7811
Cross Reference | NSN 5340-01-099-7811
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-C-447095 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-099-7811
Technical Data | NSN 5340-01-099-7811
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072,FINISH NO. E300,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | E2 COUNTERBORED SLEEVE |
| MOUNTING METHOD | SCREW |

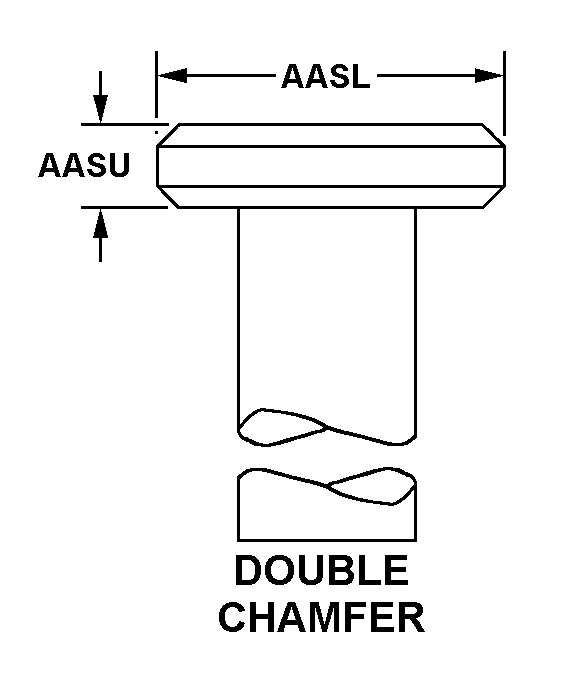

| HEAD STYLE | U7 DOUBLE CHAMFER |
| HEAD DIAMETER | 0.875 INCHES NOMINAL |
| HEAD HEIGHT | 0.090 INCHES NOMINAL |
| HOLE SIZE FOR WHICH DESIGNED | 0.437 INCHES NOMINAL |
