Product Details | THREADED HINGED STANDOFF

5340-01-097-6321 A standoff, internally and/or externally, threaded on both ends with a hinge or pivot point to allow for independent movement of the ends.

Part Alternates: 17317SS0440, 17317-SS-0440, 17317SS04407, 17317-SS-0440-7, 6715049501, 671-504-9501, 5340-01-097-6321, 01-097-6321, 5340010976321, 010976321

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 16 JUL 1980 01-097-6321

Drawings & Photos | NSN 5340-01-097-6321


Cross Reference | NSN 5340-01-097-6321

Part Number Cage Code Manufacturer
17317-SS-0440 1YGB8 CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARE
17317-SS-0440-7 06540 NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV
17317-SS-0440-7 1YGB8 CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARE
671-504-9501 99193 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-097-6321

Technical Data | NSN 5340-01-097-6321

Characteristic Specifications
MATERIAL STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION ASTM A581 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
CROSS-SECTIONAL SHAPE ROUND
DIAMETER 0.250 INCHES NOMINAL

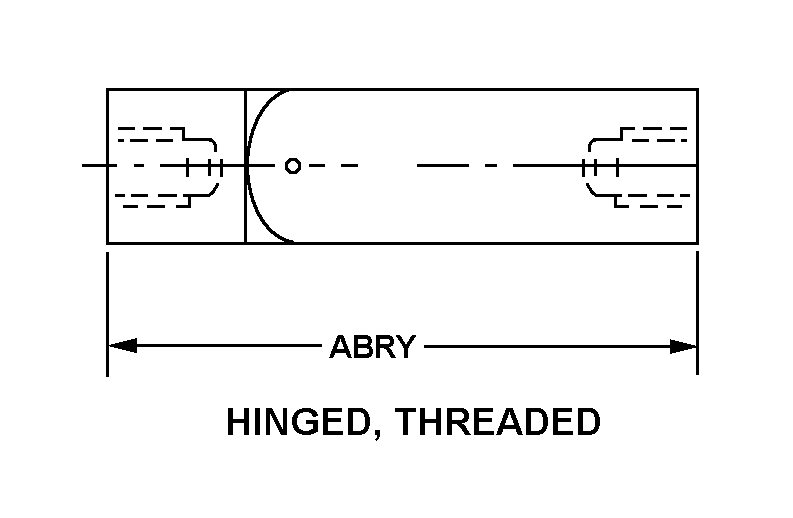

STYLE DESIGNATOR 58 HINGED, THREADED
LENGTH 1.000 INCHES NOMINAL
SPECIAL FEATURES HINGED IN CENTER; THREAD DEPTH 0.250 IN.;1/4 ROUND FEMALE STAINLESS

Restrictions/Controls & Freight Information | NSN 5340-01-097-6321

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5340-01-097-6321

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
