NSN 5340-01-095-0297 C131265, C13-12-65, 01-095-0297

Product Details | DUST AND MOISTURE SEAL PROTECTIVE CAP-PLUG

5340-01-095-0297 An item specifically designed to fit into or over the opening(s) of various items to provide mechanical protection and/or to prevent the entrance of foreign matter during painting, shipping, storage, or the like. It is not designed to retain fluids under pressure during equipment operation. For items designed to fit only into an opening, see PLUG (as modified) and STOPPER (as modified). For items designed to fit only over an opening, see BOOT (as modified); CAP (as modified); COVER (as modified); and HOOD (as modified).

Part Alternates: C131265, C13-12-65, 5340-01-095-0297, 01-095-0297, 5340010950297, 010950297

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 MAY 1980	01-095-0297	13435 ( CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL )

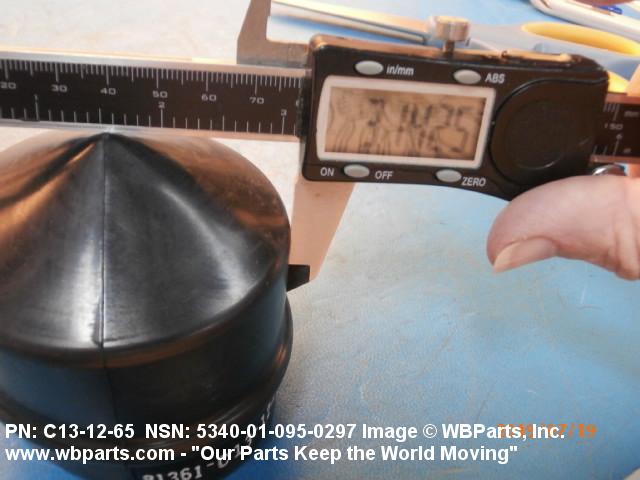

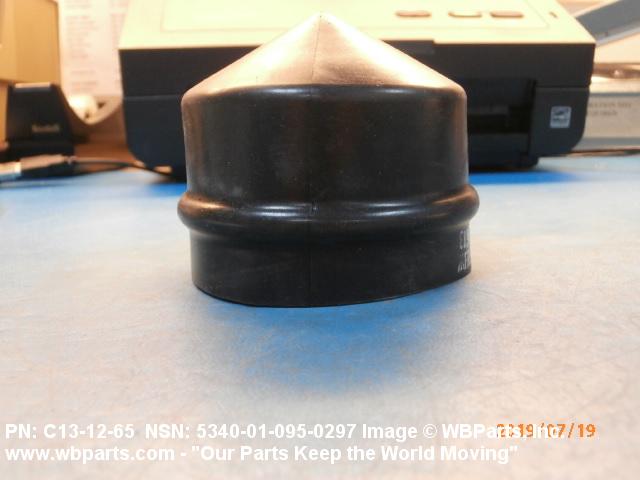

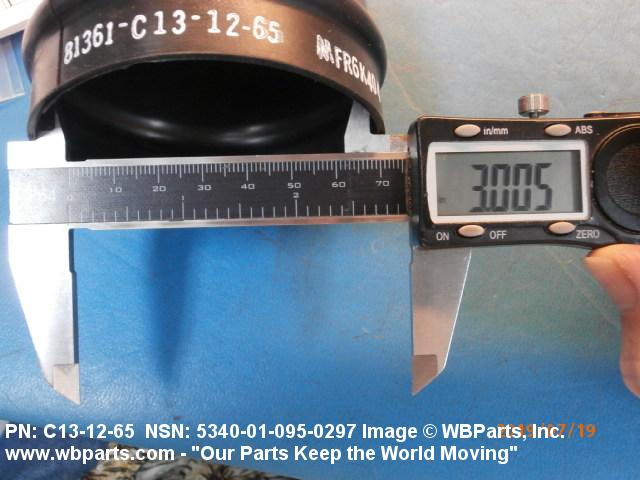

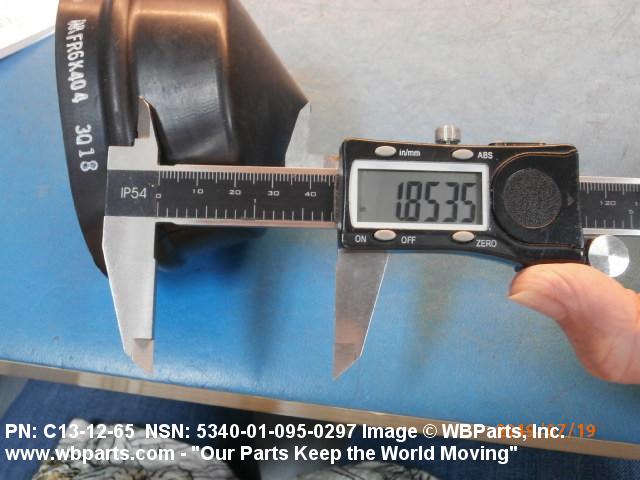

Drawings & Photos | NSN 5340-01-095-0297

Part Number	Request Date	QTY	Origin
5340-01-095-0297	2024-08-214	3000	DIBBS
5340-01-095-0297	2024-03-75	48	United States
5340-01-095-0297	2024-01-28	920	DIBBS
5340-01-095-0297	2023-11-326	20	United States
5340-01-095-0297	2023-09-272	22300	US
5340-01-095-0297	2023-09-263	275	US
5340-01-095-0297	2023-09-261	22285	DIBBS
5340-01-095-0297	2023-08-215	8693	DIBBS
5340-01-095-0297	2023-07-193	4	US
5340-01-095-0297	2023-07-186	24	US
5340-01-095-0297	2023-05-143	8	United States
5340-01-095-0297	2021-03-64	1	DIBBS-RFPs
5340-01-095-0297	2019-04-95	1	US
5340-01-095-0297	2019-04-94	1784	DIBBS
5340-01-095-0297	2019-04-94	22000	DIBBS
5340-01-095-0297	2019-03-67	144	United States
5340-01-095-0297	2019-03-67	144	United States
5340-01-095-0297	2019-03-67	1	United States
5340-01-095-0297	2019-03-60	144	US
5340-01-095-0297	2019-02-52	7000	DIBBS
5340-01-095-0297	2019-02-35	5000	DIBBS
5340-01-095-0297	2018-12-346	14000	DIBBS
5340-01-095-0297	2018-11-309	8500	DIBBS
5340-01-095-0297	2018-10-281	2869	DIBBS
5340-01-095-0297	2017-10-290	2750	DIBBS
5340-01-095-0297	2017-09-256	7119	DIBBS
5340-01-095-0297	2017-07-204	2250	DIBBS
5340-01-095-0297	2015-04-98	10001	DIBBS
5340-01-095-0297	2014-10-275	6972	DIBBS
5340-01-095-0297	2014-09-259	6000	DIBBS
5340-01-095-0297	2014-09-252	1700	United States
5340-01-095-0297	2014-05-146	10	DIBBS
5340-01-095-0297	2014-05-146	120	DIBBS
5340-01-095-0297	2014-05-142	15000	DIBBS
5340-01-095-0297	2014-05-142	200	DIBBS
5340-01-095-0297	2014-05-131	15000	DIBBS
5340-01-095-0297	2011-06-152	9696	DIBBS
5340-01-095-0297	2011-03-67	5692	DIBBS
5340-01-095-0297	2010-12-341	7000	DIBBS
5340-01-095-0297	2010-08-243	7000	DIBBS
C131265	2010-06-168	27000	US

Cross Reference | NSN 5340-01-095-0297

Part Number	Cage Code	Manufacturer
C13-12-65	81361	EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC
C13-12-65	A9271	GORIZIANE GROUP SPA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-095-0297

Compare

Related Products | NSN 5340-01-095-0297

5340-01-095-0299, 5340-01-095-0397, 5340-01-095-0398, 5340-01-095-0403, 5340-01-095-0416

Technical Data | NSN 5340-01-095-0297

Characteristic	Specifications
MATERIAL	RUBBER,ETHYLENE-PROPYLENE,GRADE 60,MIL-R-83285
OPEN END INSIDE DIAMETER	3.000 INCHES NOMINAL
CLOSED END OVERALL DIAMETER	3.120 INCHES NOMINAL
LENGTH UNDER SHOULDER	1.938 INCHES NOMINAL
III SUPPLEMENTARY FEATURES	USED ON LAUNCHER,GRENADE,XM243,XM257
MANUFACTURERS CODE	81361
DESIGN CONTROL REFERENCE	C13-12-65

Restrictions/Controls & Freight Information | NSN 5340-01-095-0297

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	119910	DUST COLLECTORS NOI
Less than car load rating	W	Rating Variable
Less than truck load rating	W	Rating Variable
Water commodity Code	772	unknown
Originating Activity Code	BF	U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT	FF
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-095-0297

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
