NSN 5340-01-093-1805 FDC1575922, FDC-157592-2, 5395152
Product Details | WEBBING STRAP
5340-01-093-1805 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: FDC1575922, FDC-157592-2, 5395152, 539515-2, 5340-01-093-1805, 01-093-1805, 5340010931805, 010931805
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 APR 1980 | 01-093-1805 | 20659 ( STRAP, WEBBING ) |
Drawings & Photos | NSN 5340-01-093-1805
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-093-1805
Related Products | NSN 5340-01-093-1805
Technical Data | NSN 5340-01-093-1805
| Characteristic | Specifications |
|---|---|
| MATERIAL | NYLON, MIL-W-4088, TYPE 17 |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND LIGHT RESISTANT |
| LENGTH | 40.000 INCHES NOMINAL |
| WIDTH | 0.938 INCHES MINIMUM AND 1.062 INCHES MAXIMUM |
| COLOR | NATURAL |
| END TYPE | BOTH W/ATTACHMENTS |
| END ATTACHMENT/FASTENING FACILITY | BUCKLE RING |

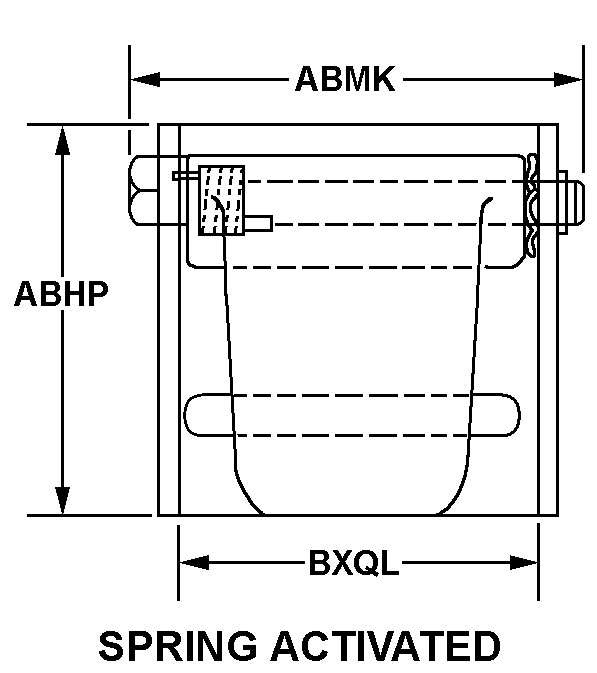

| BUCKLE STYLE DESIGNATOR | B33 SPRING ACTIVATED |
| BUCKLE MATERIAL | ALUMINUM ALLOY, QQ-A-250/4, ALLOY 2024 |
| BUCKLE SURFACE TREATMENT | ANODIZED, MIL-A-8625 |
| BUCKLE LOCATION | 12 IN. FROM END |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | SEWED |
| RING SHAPE | ROUND |
| RING MATERIAL | ALUMINUM ALLOY, QQ-A-250/4, ALLOY 2024 |
| FASTENED RING FEATURE | INCLUDED |
| RING FASTENING METHOD | SEWED |
| RING LOCATION | LOCATED ON END |
| RIVET HOLE QUANTITY | 4 |
| MANUFACTURERS CODE | 98313 |
| DESIGN CONTROL REFERENCE | FDC-157592-2 |
Restrictions/Controls & Freight Information | NSN 5340-01-093-1805
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-093-1805
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
