NSN 5340-01-093-0524 76816, 768-16, 01-093-0524
Product Details | LOOP CLAMP
5340-01-093-0524 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 76816, 768-16, 5340-01-093-0524, 01-093-0524, 5340010930524, 010930524
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 APR 1980 | 01-093-0524 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-01-093-0524
Cross Reference | NSN 5340-01-093-0524
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 768-16 | 83930 | TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-093-0524
Technical Data | NSN 5340-01-093-0524
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BAND |

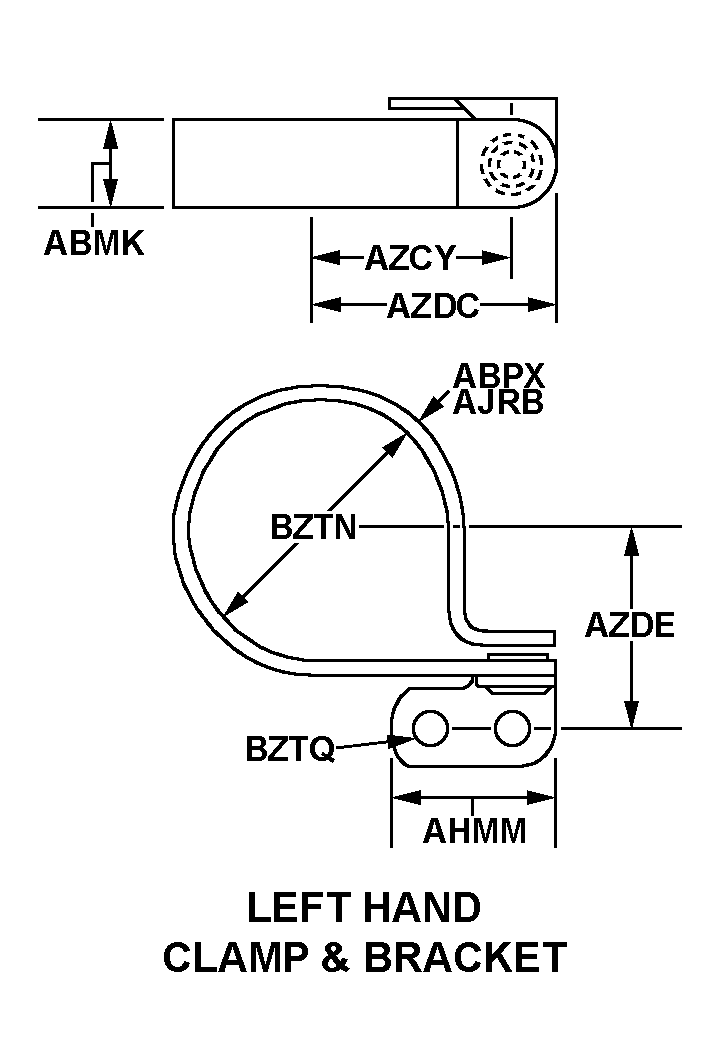

| STYLE DESIGNATOR | A38 LEFT HAND CLAMP AND BRACKET |
| OVERALL WIDTH | 0.688 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.051 INCHES NOMINAL |
| LUG WIDTH | 1.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.906 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.156 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND LUG HOLE | 1.000 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| LUG HOLE DIAMETER | 0.199 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.199 INCHES NOMINAL |
| CUSHIONING ENVIRONMENTAL PROTECTION | HEAT AND OIL RESISTANT AND WEATHER RESISTANT |
Restrictions/Controls & Freight Information | NSN 5340-01-093-0524
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
