NSN 5340-01-088-1337 132D1414, 01-088-1337, 010881337
Product Details | ACCESS COVER
5340-01-088-1337 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 132D1414, 5340-01-088-1337, 01-088-1337, 5340010881337, 010881337
Hardware and Abrasives | Hardware, Commercial
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 06 JAN 1980 | 01-088-1337 | 29785 ( COVER, ACCESS ) |
Demand History | NSN 5340-01-088-1337
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5340-01-088-1337 | 2020-11-331 | 5 | DIBBS |
5340-01-088-1337 | 2019-04-93 | 2 | DIBBS |
5340-01-088-1337 | 2018-08-227 | 3 | DIBBS |
5340-01-088-1337 | 2018-08-219 | 3 | DIBBS |
5340-01-088-1337 | 2018-05-135 | 1 | DIBBS |
Cross Reference | NSN 5340-01-088-1337
Part Number | Cage Code | Manufacturer |
---|---|---|
132D1414 | 05606 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5340-01-088-1337
Technical Data | NSN 5340-01-088-1337
Characteristic | Specifications |
---|---|
PERIPHERAL SHAPE STYLE | 22 RECTANGLE, MULTI HOLES |
WIDTH | 6.560 INCHES MINIMUM AND 6.600 INCHES MAXIMUM |
LENGTH | 8.160 INCHES MINIMUM AND 8.200 INCHES MAXIMUM |
DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 0.532 INCHES NOMINAL |
DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH | 1.682 INCHES NOMINAL |
DISTANCE BETWEEN HOLES ALONG LENGTH | 3.782 INCHES MINIMUM AND 7.032 INCHES MAXIMUM |
DISTANCE BETWEEN HOLES ALONG WIDTH | 3.610 INCHES MINIMUM AND 3.650 INCHES MAXIMUM |
HOLE QUANTITY ALONG LENGTH | 5 |
HOLE QUANTITY ALONG WIDTH | 4 |
CROSS-SECTIONAL SHAPE STYLE | 27 FLAT W/OPEN CENTER |
BODY THICKNESS | 0.300 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
MATERIAL | ALUMINUM ALLOY 6061 |
MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11,T6 FED SPEC SINGLE MATERIAL RESPONSE |
SECURING DEVICE TYPE | THREADED FASTENER |

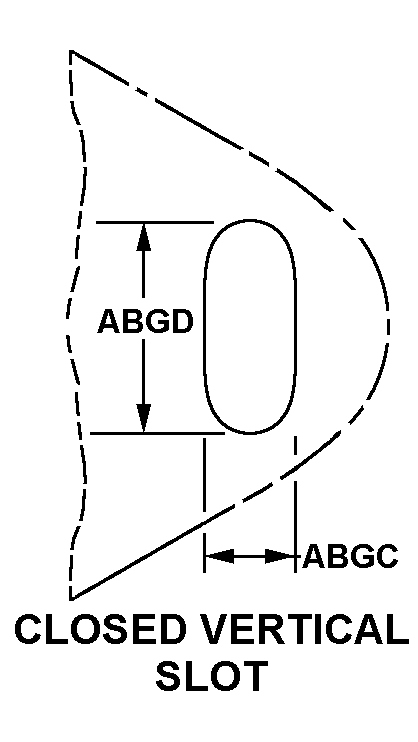

MOUNTING OPENING SHAPE STYLE | 5 CLOSED VERTICAL SLOT |
SLOT WIDTH | 1.370 INCHES MINIMUM AND 1.430 INCHES MAXIMUM |
SLOT LENGTH | 3.610 INCHES MINIMUM AND 3.650 INCHES MAXIMUM |
FEATURES PROVIDED | OBSERVATION FACILITY |
MANUFACTURERS CODE | 05606 |
DESIGN CONTROL REFERENCE | 132D1414 |
Restrictions/Controls & Freight Information | NSN 5340-01-088-1337
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
Less than car load rating | J | 100.2 |
Less than truck load rating | J | 100.2 |
Water commodity Code | 713 | unknown |
Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
