Product Details | RETAINING STRAP

5340-01-081-9740 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.

Part Alternates: 5883921, 588392-1, 5340-01-081-9740, 01-081-9740, 5340010819740, 010819740

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 23 AUG 1979 01-081-9740

Drawings & Photos | NSN 5340-01-081-9740


Cross Reference | NSN 5340-01-081-9740

Part Number Cage Code Manufacturer
588392-1 3B150 RAYTHEON TECHNICAL SERVICES COMPANY LLC
588392-1 49956 RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-081-9740

Technical Data | NSN 5340-01-081-9740

Characteristic Specifications
MATERIAL NICKEL
SURFACE TREATMENT OXIDE

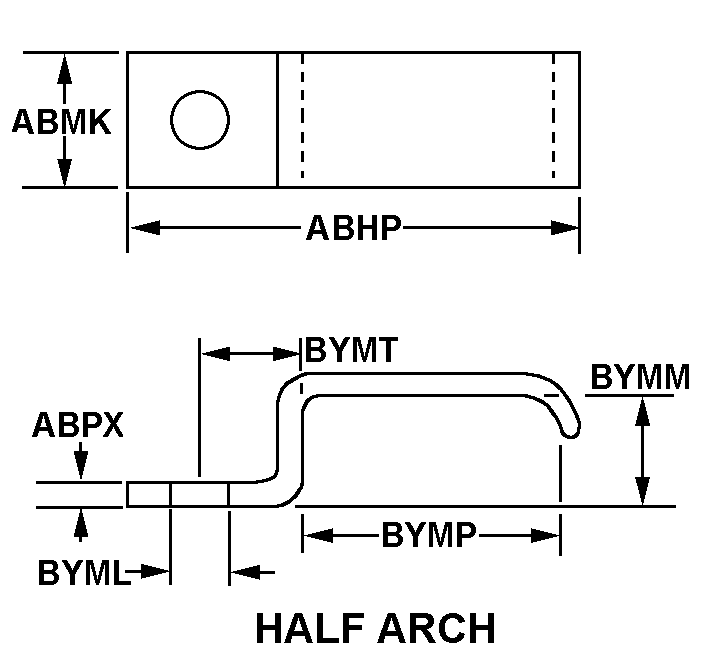

STYLE DESIGNATOR A6 HALF ARCH
OVERALL LENGTH 0.680 INCHES NOMINAL
OVERALL WIDTH 0.375 INCHES NOMINAL
MATERIAL THICKNESS 0.063 INCHES NOMINAL
MOUNTING HOLE SIZE 0.166 INCHES NOMINAL
DISTANCE BETWEEN BASE AND INSIDE OF ARCH 0.265 INCHES NOMINAL
INSIDE DIAMETER/ARCH LENGTH 0.125 INCHES NOMINAL
DISTANCE BETWEEN MOUNTING HOLE CENTER AND INSIDE EDGE OF ARCH 0.281 INCHES NOMINAL
CUSHION NOT INCLUDED
MOUNTING PAD NOT INCLUDED
UNIT PACKAGE QUANTITY 50
UNIT PACKAGE TYPE BOX
MANUFACTURERS CODE 3B150
DESIGN CONTROL REFERENCE 588392-1
