NSN 5340-01-069-3298 74722, 747-22, 01-069-3298
Product Details | LOOP CLAMP
5340-01-069-3298 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 74722, 747-22, 5340-01-069-3298, 01-069-3298, 5340010693298, 010693298
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 DEC 1978 | 01-069-3298 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-01-069-3298
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-069-3298
Technical Data | NSN 5340-01-069-3298
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BAND RUBBER SYNTHETIC CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,ALCLAD T4 FED SPEC SINGLE MATERIAL RESPONSE BAND |

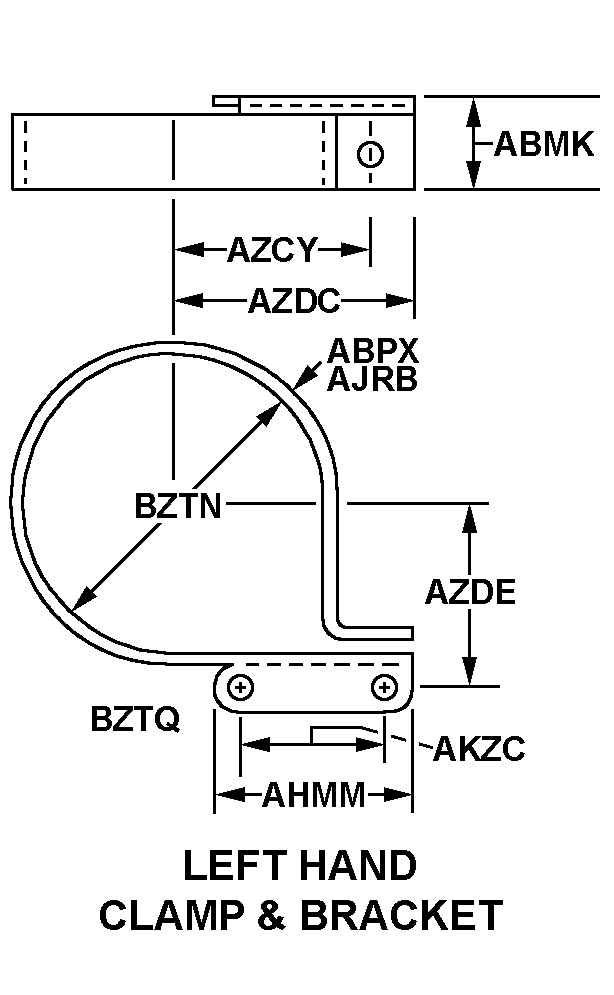

| STYLE DESIGNATOR | A14A LEFT HAND CLAMP AND BRACKET |
| OVERALL WIDTH | 0.688 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.064 INCHES NOMINAL |
| LUG WIDTH | 1.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.062 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND LUG HOLE | 1.188 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 1.375 INCHES NOMINAL |
| LUG HOLE DIAMETER | 0.141 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.199 INCHES NOMINAL |
| CUSHIONING ENVIRONMENTAL PROTECTION | FLAME RESISTANT AND HEAT AND OIL RESISTANT AND WEATHER RESISTANT |
| MANUFACTURERS CODE | 81982 |
| DESIGN CONTROL REFERENCE | 747-22 |
Restrictions/Controls & Freight Information | NSN 5340-01-069-3298
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
