NSN 5340-01-061-2296 MS21919WDG19, AS21919WDG19, AS21919WDG19LAR

Product Details | LOOP CLAMP

5340-01-061-2296 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: MS21919WDG19, AS21919WDG19, AS21919WDG19LAR, 10117580 , 5340-01-061-2296, 01-061-2296, 5340010612296, 010612296

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	14 JUN 1978	01-061-2296	17532 ( CLAMP, LOOP )

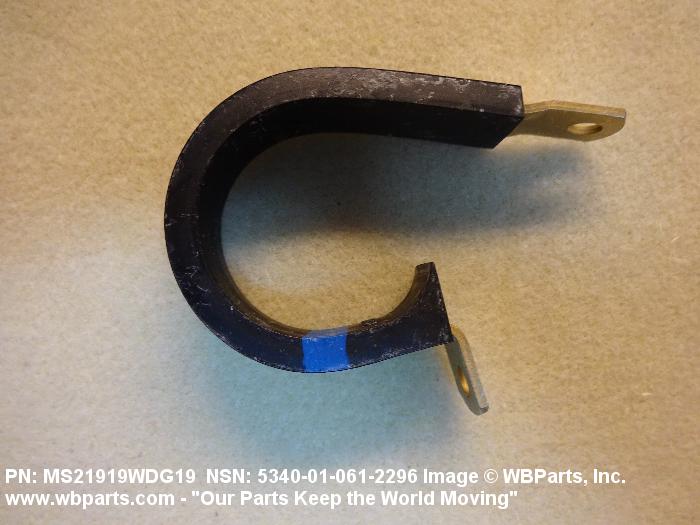

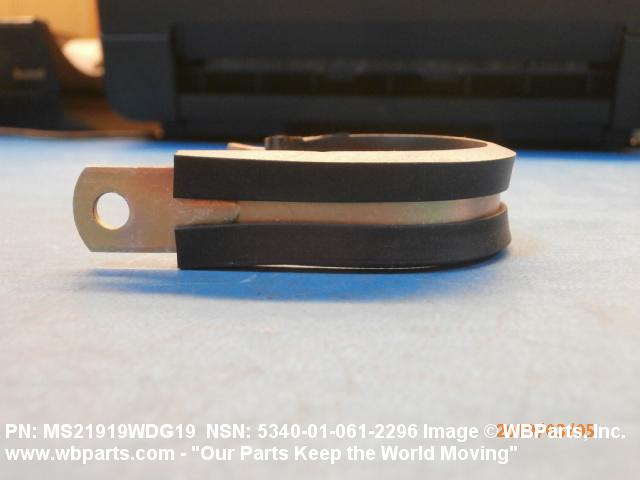

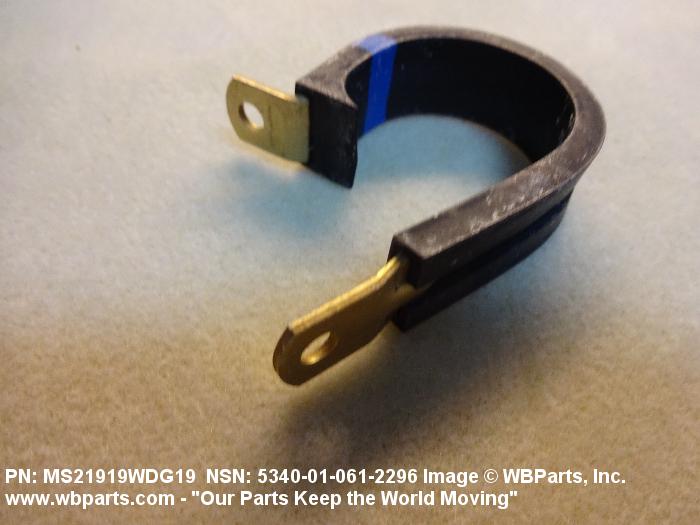

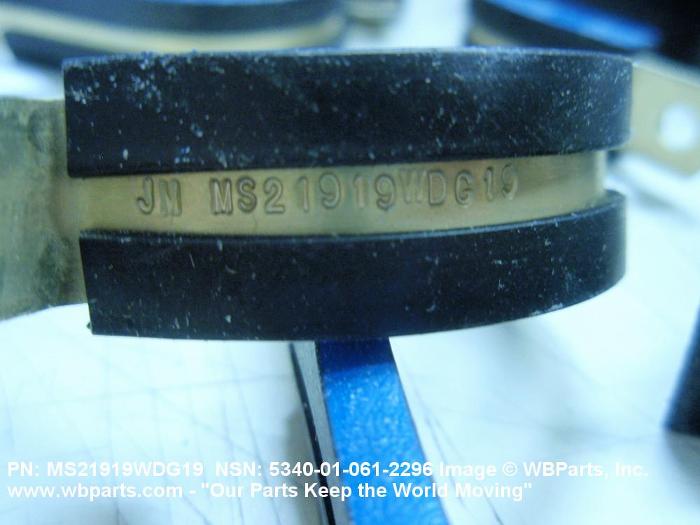

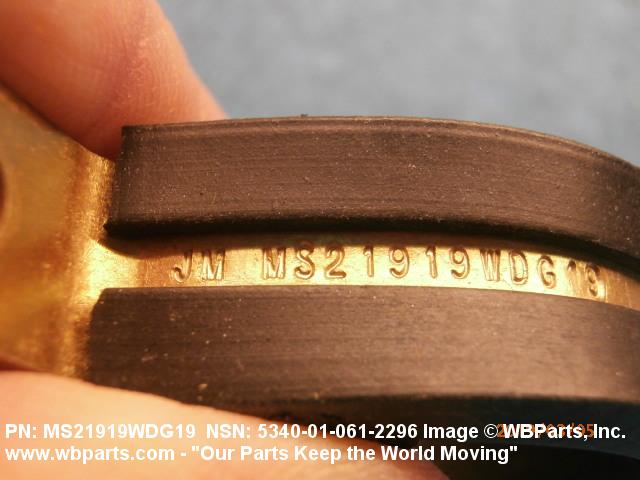

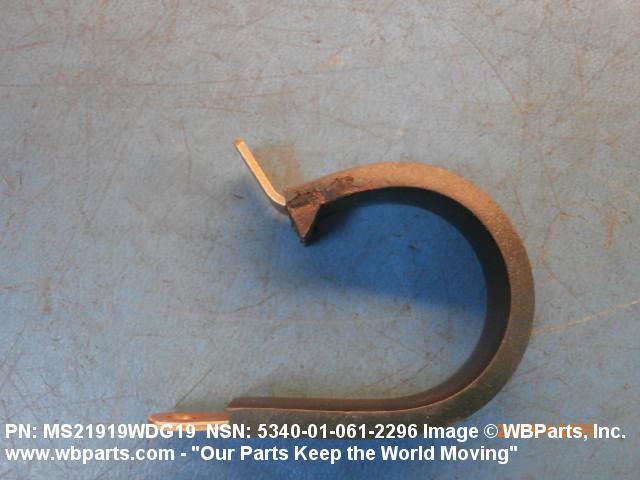

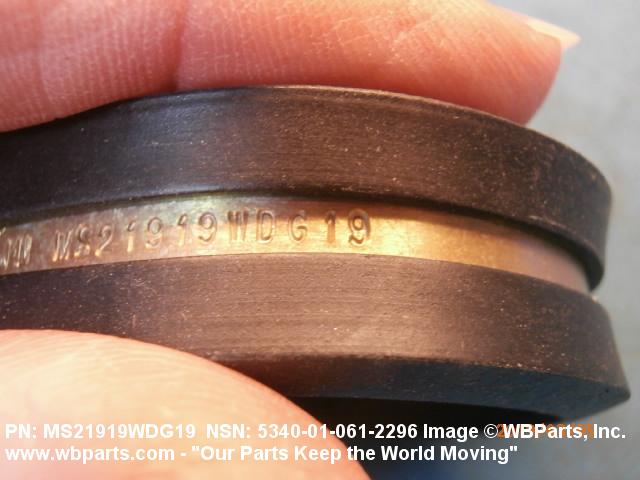

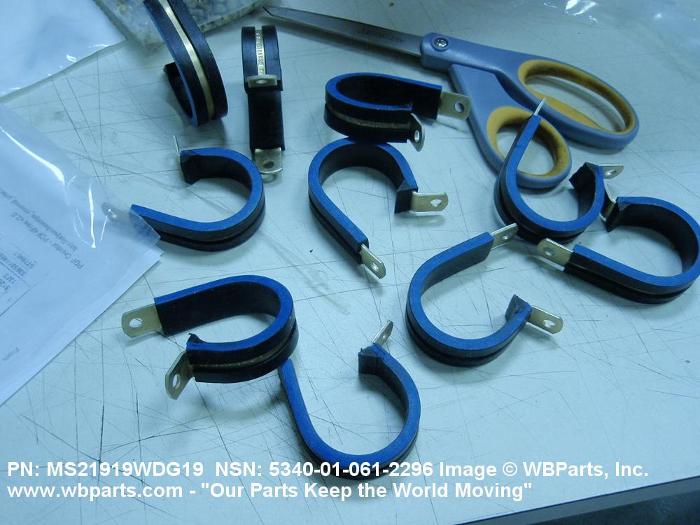

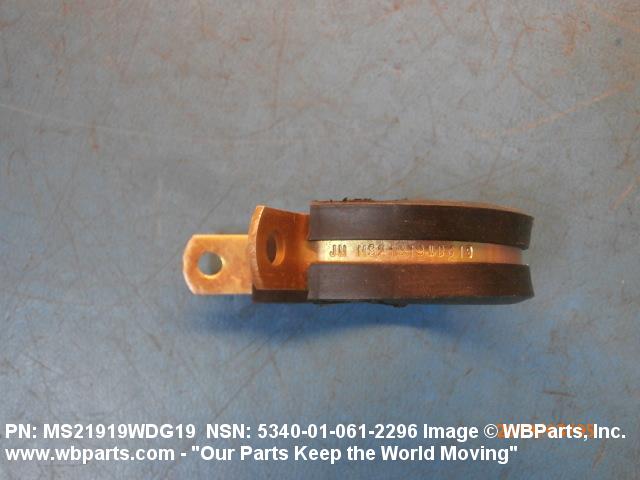

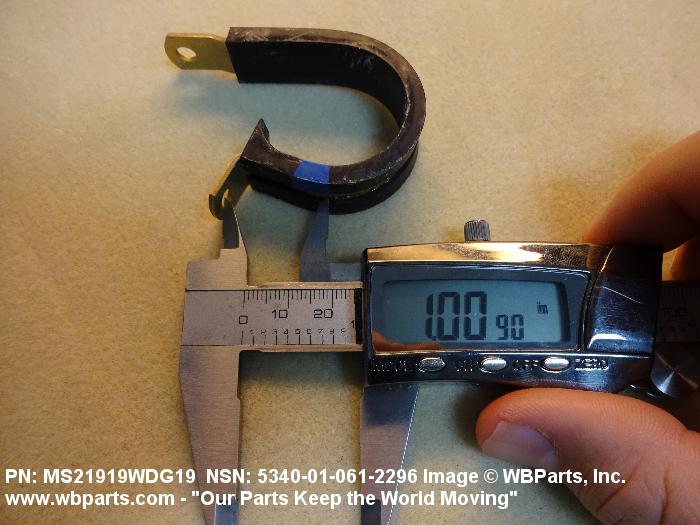

Drawings & Photos | NSN 5340-01-061-2296

Part Number	Request Date	QTY	Origin
MS21919WDG19	2024-09-263	10	Croatia
5340-01-061-2296	2024-08-228	3806	DIBBS
5340-01-061-2296	2024-02-60	4584	DIBBS
5340-01-061-2296	2024-01-22	7387	DIBBS
AS21919WDG19	2023-03-81	73	United States
5340-01-061-2296	2022-09-244	7387	DIBBS
5340-01-061-2296	2022-03-87	230	US
5340-01-061-2296	2021-08-217	8354	DIBBS
5340-01-061-2296	2020-10-302	8500	DIBBS
5340-01-061-2296	2020-04-99	100	United States
MS21919WDG19	2019-09-248	50	Sri Lanka
5340-01-061-2296	2019-06-165	2	United States
MS21919WDG19	2019-03-60	500	Czech Republic
MS21919WDG19	2019-02-52	500	Czech Republic
MS21919WDG19	2017-02-59	50	Pakistan
MS21919WDG19	2017-02-58	50	Pakistan
5340-01-061-2296	2016-03-82	4445	DIBBS
5340-01-061-2296	2016-01-24	12680	DIBBS
5340-01-061-2296	2015-09-246	8736	DIBBS
5340-01-061-2296	2015-06-176	1	DIBBS-RFPs
5340-01-061-2296	2014-02-56	5000	DIBBS
5340-01-061-2296	2013-10-275	3653	DIBBS
5340-01-061-2296	2013-09-245	2014	DIBBS
MS21919WDG19	2012-11-310	50
5340-01-061-2296	2012-06-166	6500	DIBBS
5340-01-061-2296	2012-05-144	2784	DIBBS
5340-01-061-2296	2012-05-125	1138	DIBBS
MS21919WDG19	2012-04-93	10	US
5340-01-061-2296	2012-03-90	2961	DIBBS
5340-01-061-2296	2012-02-39	937	DIBBS
MS21919WDG19	2011-04-112	10	United States
MS21919WDG19	2011-04-112	10	United States
MS21919WDG19	2010-09-272	9	United States
AS21919WDG19	2008-05-136	500	US

Cross Reference | NSN 5340-01-061-2296

Part Number	Cage Code	Manufacturer
AS21919WDG19	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21919WDG19LAR	01CM4	CENTON INDUSTRIES INC. DIV CENTON WEST
MS21919WDG19	01CM4	CENTON INDUSTRIES INC. DIV CENTON WEST
MS21919WDG19	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-061-2296

Compare

Related Products | NSN 5340-01-061-2296

5340-01-061-2297, 5340-01-061-2329, 5340-01-061-2330, 5340-01-061-2345, 5340-01-061-2562

Technical Data | NSN 5340-01-061-2296

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY BAND RUBBER SYNTHETIC CUSHION
STYLE DESIGNATOR	A5 OFFSET MOUNT

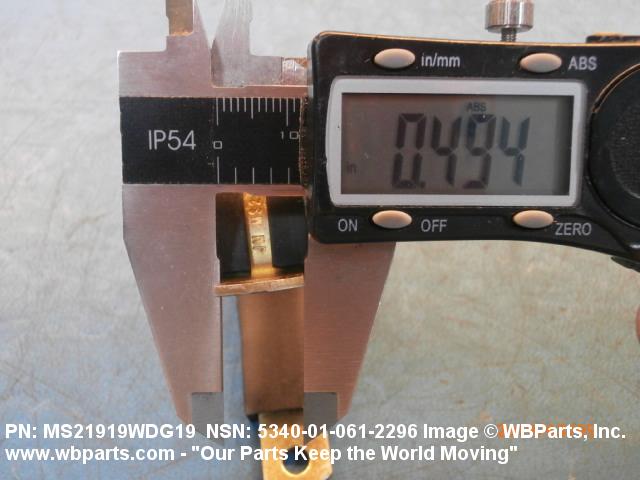

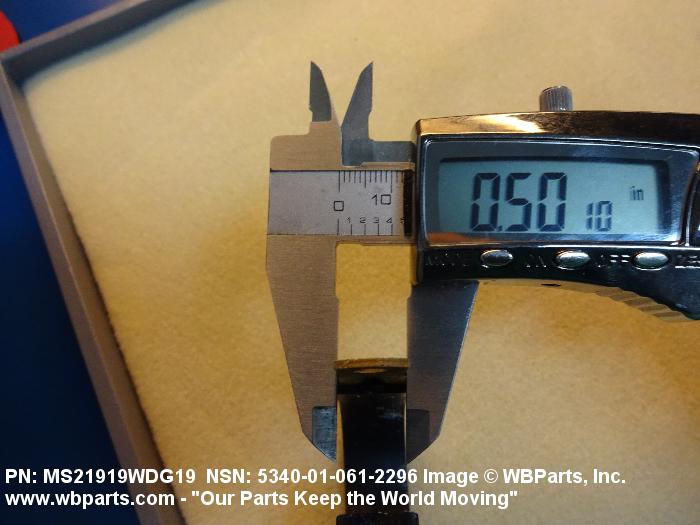

OVERALL WIDTH	0.500 INCHES NOMINAL

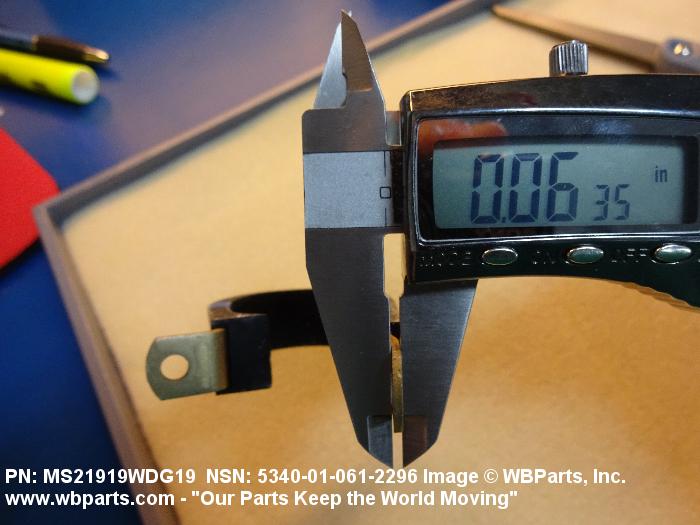

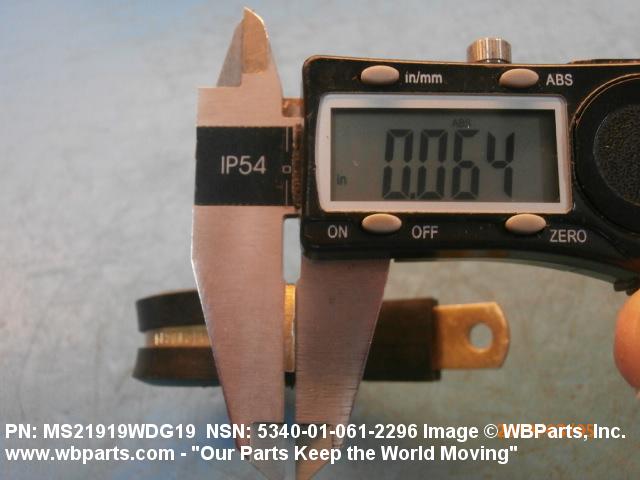

MATERIAL THICKNESS	0.063 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	1.093 INCHES NOMINAL

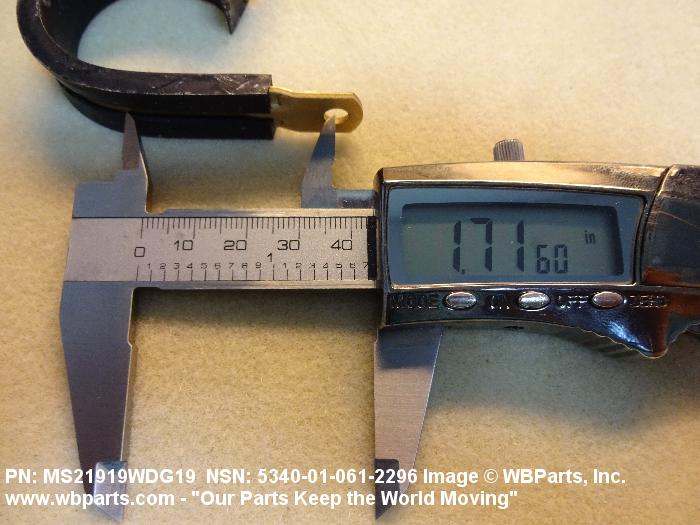

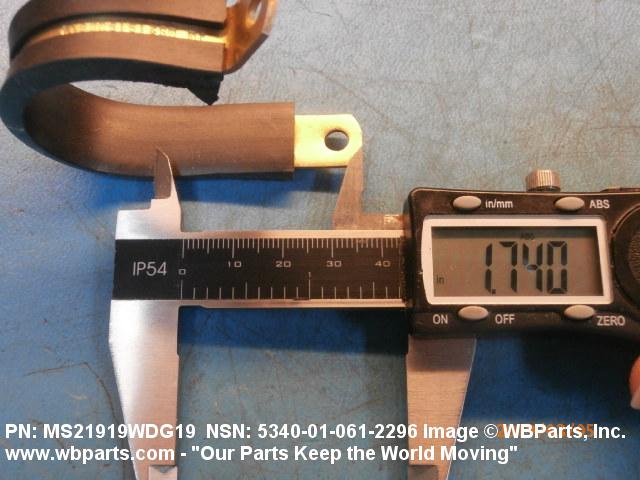

DISTANCE FROM LOOP CENTER TO TONGUE END	1.749 INCHES MAXIMUM

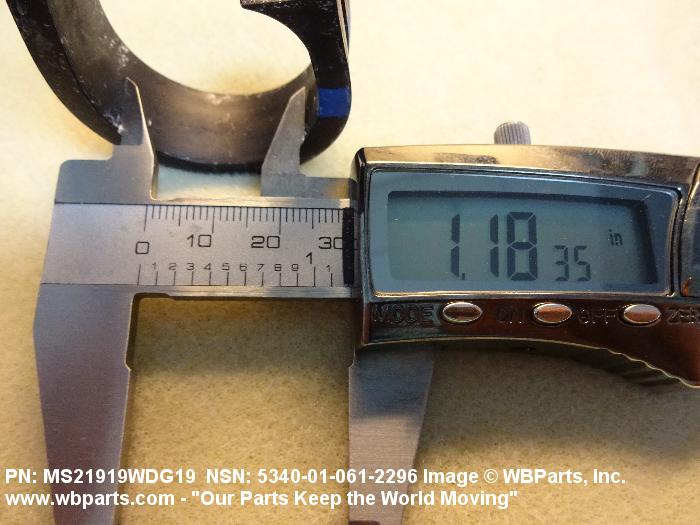

LOOP INSIDE DIAMETER	1.188 INCHES NOMINAL

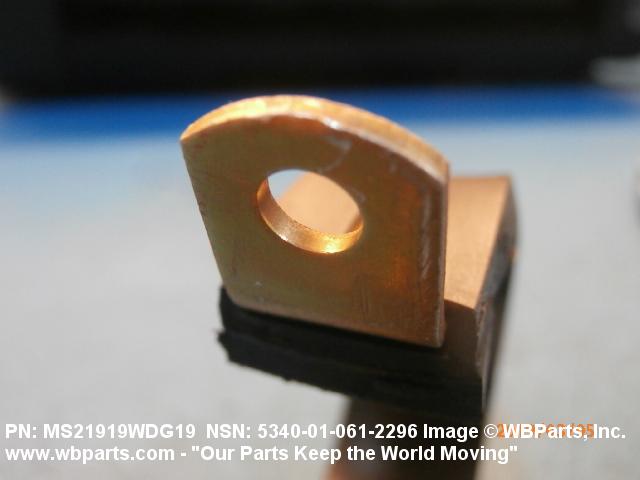

TONGUE HOLE TYPE	ROUND, UNTHREADED

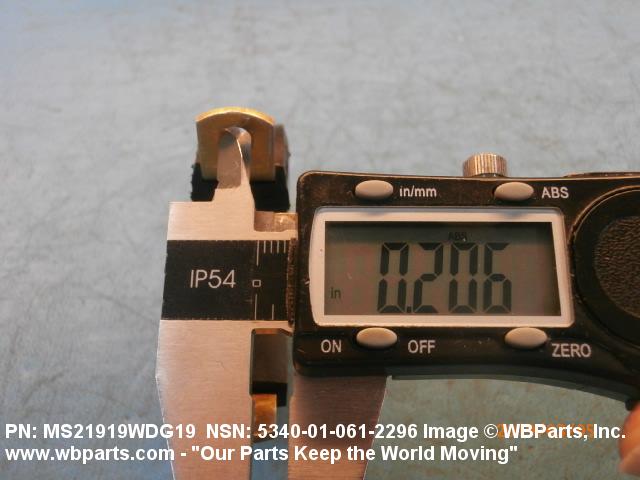

DIAMETER	0.204 INCHES NOMINAL
SPECIAL FEATURES	WEDGE

Restrictions/Controls & Freight Information | NSN 5340-01-061-2296

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Y	180 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	DX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-061-2296

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GC	TG:UH/60A BLACKHAWK
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	6	Critical Repair Part to a Non-Combat Essential End Item. Those parts or components whose failure in a noncombat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 EA : Each
