NSN 5340-01-059-7914 2184354, 21843-54, 8457672

Product Details | SNAP HOOK

5340-01-059-7914 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.

Part Alternates: 2184354, 21843-54, 8457672 , 5340-01-059-7914, 01-059-7914, 5340010597914, 010597914

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	15 APR 1978	01-059-7914	16954 ( SNAP HOOK )

Drawings & Photos | NSN 5340-01-059-7914

Part Number	Request Date	QTY	Origin
5340-01-059-7914	2023-11-332	2	US
21843-54	2023-03-78	60	DIBBS
21843-54	2022-05-131	76	DIBBS
21843-54	2022-05-125	76	DIBBS
21843-54	2022-03-89	17	DIBBS
21843-54	2021-12-340	14	DIBBS
21843-54	2021-11-329	14	DIBBS
21843-54	2021-10-286	48	DIBBS
21843-54	2021-07-207	40	DIBBS
21843-54	2021-07-199	40	DIBBS
21843-54	2021-04-98	50	DIBBS

Cross Reference | NSN 5340-01-059-7914

Part Number	Cage Code	Manufacturer
21843-54	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
21843-54	32707	TELAIR INTERNATIONAL INCORPORATED DBA NORDISK AVIATION PRODUCTS
8457672	18894	AIR ARMAMENT CENTER/ EN

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-059-7914

Compare

Related Products | NSN 5340-01-059-7914

5340-01-059-7919, 5340-01-059-7920, 5340-01-059-7923, 5340-01-059-7924, 5340-01-059-7925

Technical Data | NSN 5340-01-059-7914

Characteristic	Specifications

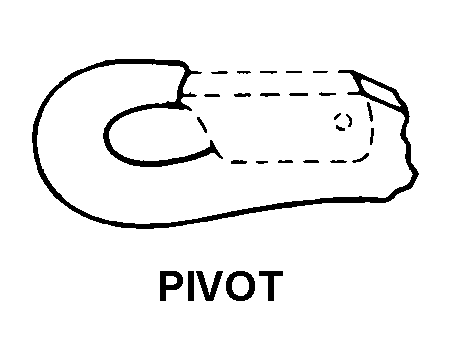

HOOK STYLE DESIGNATOR	3A PIVOT
DESIGN TYPE	FIXED
END POSITION	CONNECTION END IN SAME PLANE AS HOOK END

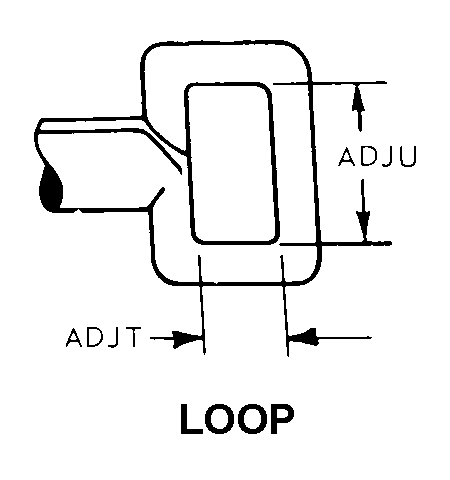

END CONNECTION STYLE	16 LOOP
INSIDE WIDTH	0.340 INCHES MINIMUM
INSIDE LENGTH	1.750 INCHES NOMINAL
HOOK MATERIAL	STEEL
CONNECTION END MATERIAL	STEEL
SURFACE TREATMENT	CADMIUM
RUBBER COVERED FEATURE	NOT INCLUDED
UNATTACHED RING	NOT INCLUDED
MANUFACTURERS CODE	32707
DESIGN CONTROL REFERENCE	21843-54

Restrictions/Controls & Freight Information | NSN 5340-01-059-7914

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095370	HOOKS NOI I/S GALVANIZE/PLAIN ETC
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-059-7914

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
