Product Details | CORNER BRACE

5340-01-051-0112 An item of rigid flat material usually shaped to a 90 degree angle (1.5705 radians), designed to be mounted on a single plane. For items designed to be mounted on more than one plane, see BRACKET, ANGLE.

Part Alternates: P2227, 5340-01-051-0112, 01-051-0112, 5340010510112, 010510112

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 19 NOV 1977 01-051-0112

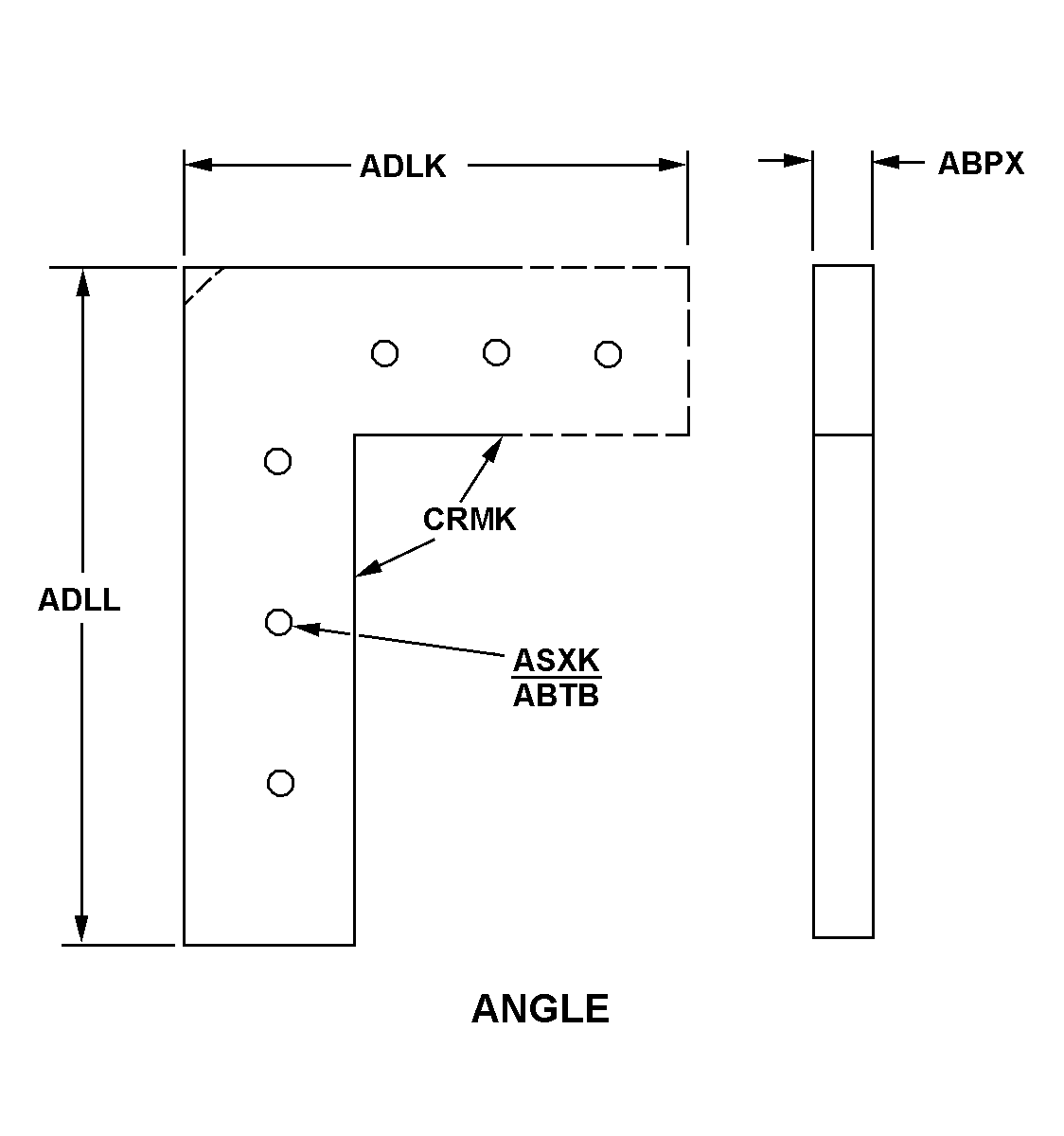

Drawings & Photos | NSN 5340-01-051-0112


Cross Reference | NSN 5340-01-051-0112

Part Number Cage Code Manufacturer
P2227 96195 UNISTRUT INTERNATIONAL CORPORATION DBA UNISTRUT DIVERSIFIED PRODUCTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-051-0112

Technical Data | NSN 5340-01-051-0112

Characteristic Specifications
MATERIAL STEEL
STYLE DESIGNATOR 1 ANGLE
FIRST LEG LENGTH 2.000 INCHES NOMINAL
SECOND LEG LENGTH 5.406 INCHES NOMINAL
ANGLE 90.0 DEGREES NOMINAL
FIRST LEG STYLE 104 SQUARE
SECOND LEG RELATIONSHIP TO FIRST LEG NOT IDENTICAL

Restrictions/Controls & Freight Information | NSN 5340-01-051-0112

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
