NSN 5340-01-047-5730 P1913, P191-3, 01-047-5730

Product Details | ANGLE BRACKET

5340-01-047-5730 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000

Part Alternates: P1913, P191-3, 5340-01-047-5730, 01-047-5730, 5340010475730, 010475730

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 SEP 1977	01-047-5730	16900 ( BRACKET, ANGLE )

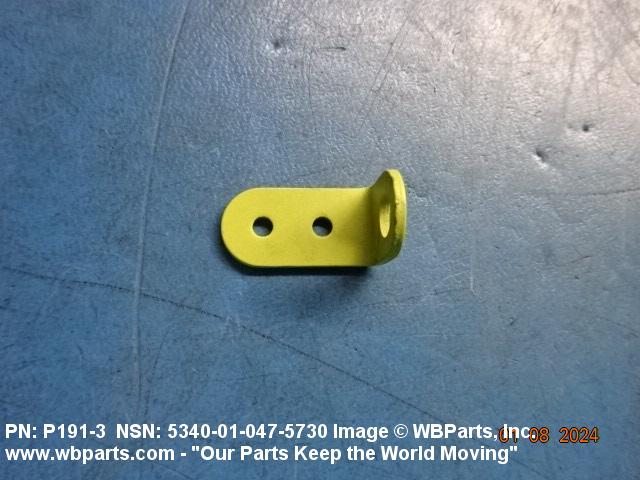

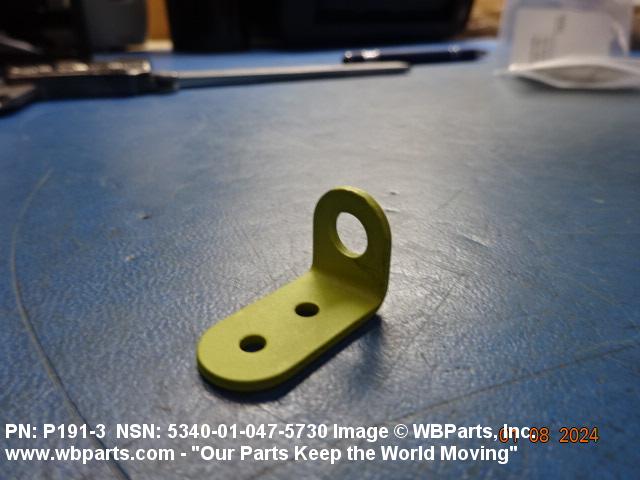

Drawings & Photos | NSN 5340-01-047-5730

Part Number	Request Date	QTY	Origin
5340-01-047-5730	2024-08-221	81	DIBBS
5340-01-047-5730	2024-01-04	118	DIBBS
P1913	2023-12-361	1	United States
P1913	2023-12-354	1	United States
5340-01-047-5730	2023-09-262	104	DIBBS
P1913	2023-06-166	1	US
5340-01-047-5730	2018-03-88	212	DIBBS
5340-01-047-5730	2017-02-47	225	DIBBS
5340-01-047-5730	2017-02-39	225	DIBBS

Cross Reference | NSN 5340-01-047-5730

Part Number	Cage Code	Manufacturer
P191-3	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-047-5730

Compare

Related Products | NSN 5340-01-047-5730

5340-01-047-5884, 5340-01-047-5892, 5340-01-047-6031, 5340-01-047-6032, 5340-01-047-6066

Technical Data | NSN 5340-01-047-5730

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-250/5,ALCLAD T3 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT	ANODIZE
STYLE DESIGNATOR	6 ANGLE
III FIRST LEG LENGTH	0.625 INCHES NOMINAL

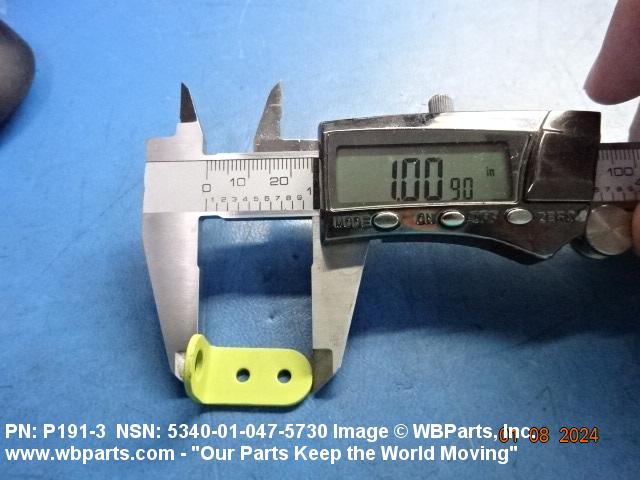

III SECOND LEG LENGTH	1.000 INCHES NOMINAL

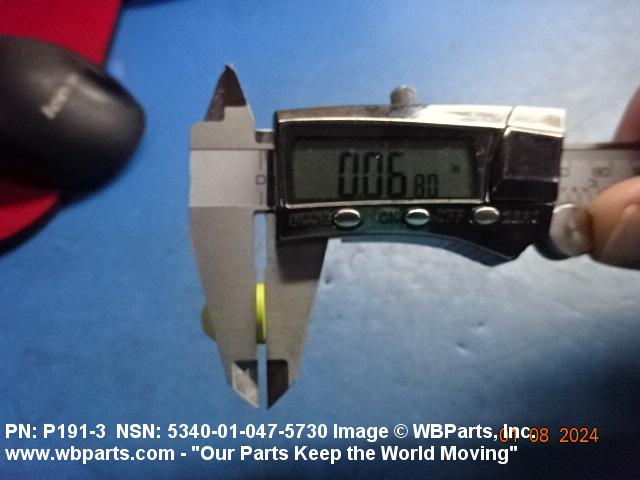

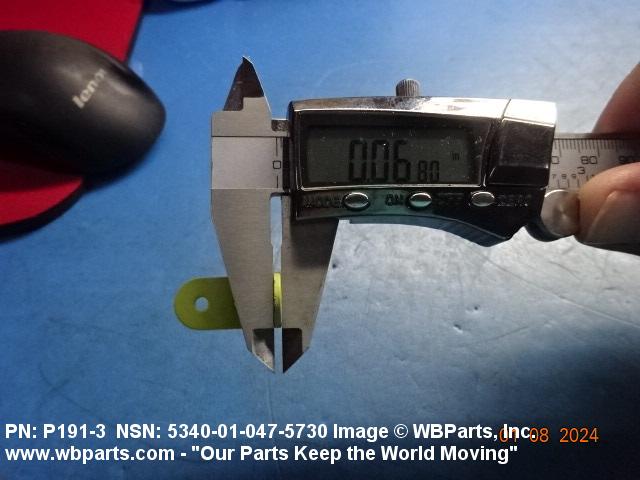

III FIRST LEG THICKNESS	0.063 INCHES NOMINAL
III SECOND LEG THICKNESS	0.063 INCHES NOMINAL
III FIRST LEG ANGLE	90.0 DEGREES NOMINAL
FIRST LEG STYLE	102 END RADIUS

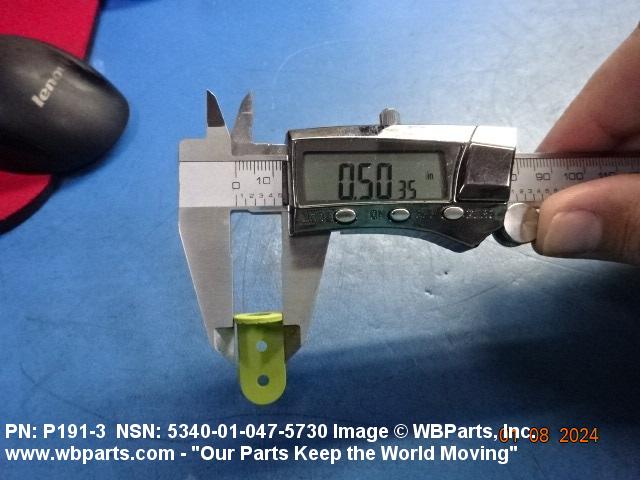

FIRST LEG WIDTH	0.500 INCHES NOMINAL
FIRST LEG END RADIUS	0.250 INCHES NOMINAL
FIRST LEG HOLE ARRANGEMENT STYLE	132 ONE HOLE

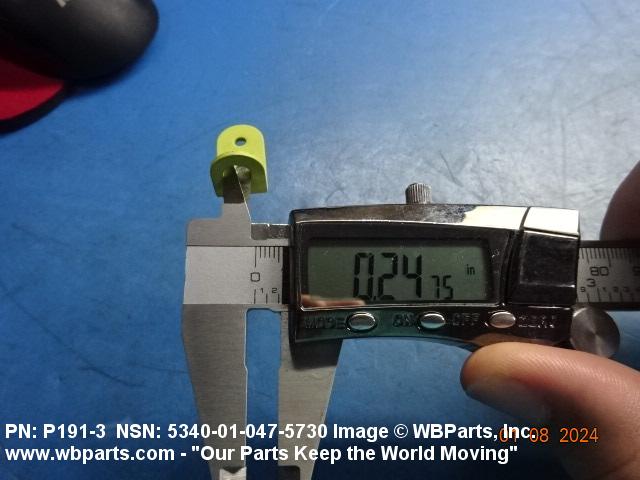

FIRST LEG HOLE DIAMETER	0.250 INCHES MINIMUM AND 0.258 INCHES MAXIMUM
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH	0.250 INCHES NOMINAL
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH	0.250 INCHES NOMINAL
SECOND LEG RELATIONSHIP TO FIRST LEG	NOT IDENTICAL
SECOND LEG STYLE	102 END RADIUS

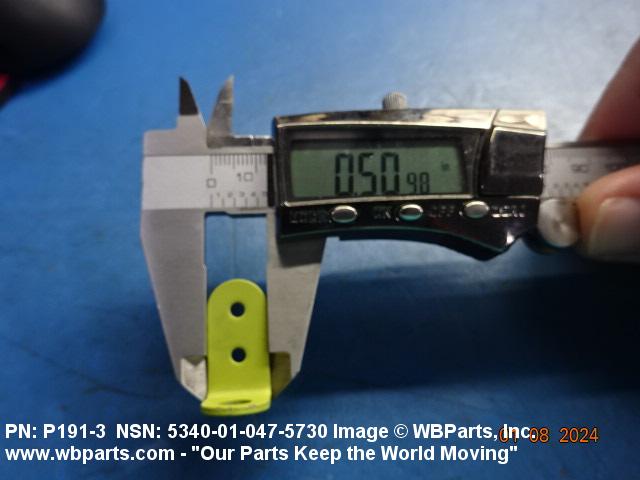

SECOND LEG WIDTH	0.500 INCHES NOMINAL
SECOND LEG END RADIUS	0.250 INCHES NOMINAL
SECOND LEG HOLE ARRANGEMENT STYLE	134 TWO HOLES
SECOND LEG HOLE DIAMETER	0.128 INCHES NOMINAL
SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH	0.375 INCHES NOMINAL
SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH	0.250 INCHES NOMINAL
SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH	0.250 INCHES NOMINAL
MANUFACTURERS CODE	81755
DESIGN CONTROL REFERENCE	P191-3

Restrictions/Controls & Freight Information | NSN 5340-01-047-5730

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093600	BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC
Less than car load rating	Q	70
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-047-5730

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Materiel Management Aggregation Code	WF	SU:F-16 AIR COMBAT FIGHTER
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
