NSN 5340-01-042-2719 68A5207032001, 68A520703-2001, 01-042-2719
Product Details | ANGLE BRACKET
5340-01-042-2719 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 68A5207032001, 68A520703-2001, 5340-01-042-2719, 01-042-2719, 5340010422719, 010422719
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 JUN 1977 | 01-042-2719 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-042-2719
Demand History | NSN 5340-01-042-2719
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-042-2719 | 2024-03-71 | 60 | DIBBS |
| 5340-01-042-2719 | 2021-05-133 | 150 | DIBBS |
| 5340-01-042-2719 | 2021-02-40 | 150 | DIBBS |
| 5340-01-042-2719 | 2020-09-247 | 101 | DIBBS |
| 5340-01-042-2719 | 2020-08-231 | 16 | DIBBS |
| 5340-01-042-2719 | 2018-08-225 | 318 | DIBBS |
| 5340-01-042-2719 | 2018-07-197 | 320 | DIBBS |
| 5340-01-042-2719 | 2018-07-196 | 58 | DIBBS |
| 5340-01-042-2719 | 2017-10-290 | 58 | DIBBS |
| 5340-01-042-2719 | 2017-06-180 | 49 | DIBBS |
| 5340-01-042-2719 | 2016-12-357 | 61 | DIBBS |
| 5340-01-042-2719 | 2016-06-164 | 34 | DIBBS |
| 5340-01-042-2719 | 2011-10-299 | 57 | DIBBS |
| 5340-01-042-2719 | 2011-06-179 | 35 | DIBBS |
| 5340-01-042-2719 | 2010-11-314 | 44 | DIBBS |
| 5340-01-042-2719 | 2010-07-188 | 50 | DIBBS |
Cross Reference | NSN 5340-01-042-2719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68A520703-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-042-2719
Related Products | NSN 5340-01-042-2719
Technical Data | NSN 5340-01-042-2719
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 5.250 INCHES NOMINAL |
| SECOND LEG LENGTH | 5.250 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.120 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.120 INCHES NOMINAL |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |
| FIRST LEG WIDTH | 1.000 INCHES NOMINAL |
| SECOND LEG WIDTH | 1.000 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 133 TWO HOLES |
| FIRST LEG HOLE DIAMETER | 0.215 INCHES MINIMUM AND 0.223 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 1.810 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.370 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.480 INCHES NOMINAL |
| SECOND LEG HOLE DIAMETER | 0.257 INCHES MINIMUM AND 0.264 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN UPPER HOLE CENTERS ALONG WIDTH | 4.500 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN LOWER HOLE CENTERS ALONG WIDTH | 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 0.090 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH | 1.740 INCHES MINIMUM AND 1.750 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.370 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.280 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 SQUARE |

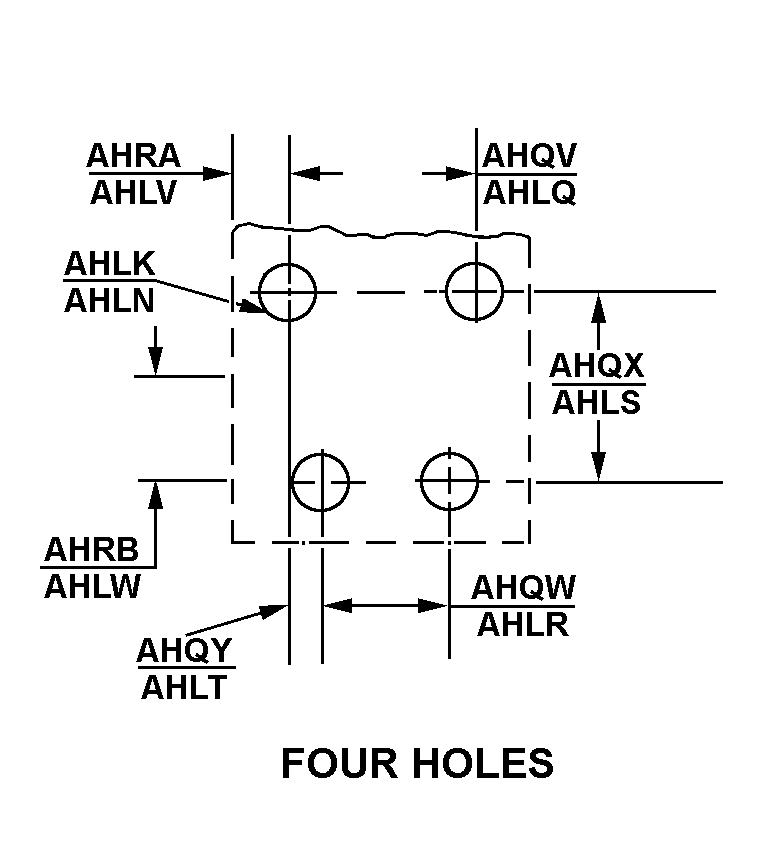

| SECOND LEG HOLE ARRANGEMENT STYLE | 143 FOUR HOLES |
| MOUNTING HOLE TYPE | COUNTERSUNK |
| (NON-CORE DATA) FABRICATION METHOD | MACHINED |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 68A520703-2001 |
Restrictions/Controls & Freight Information | NSN 5340-01-042-2719
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-042-2719
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
