Product Details | HANDWHEEL
5340-01-040-7000 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.
Part Alternates: 12008210, 5340-01-040-7000, 01-040-7000, 5340010407000, 010407000
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 MAY 1977 | 01-040-7000 | 13379 ( HANDWHEEL ) |
Drawings & Photos | NSN 5340-01-040-7000
Demand History | NSN 5340-01-040-7000
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-040-7000 | 2015-12-337 | 6 | Pakistan |
Cross Reference | NSN 5340-01-040-7000
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12008210 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-040-7000
Related Products | NSN 5340-01-040-7000
Technical Data | NSN 5340-01-040-7000

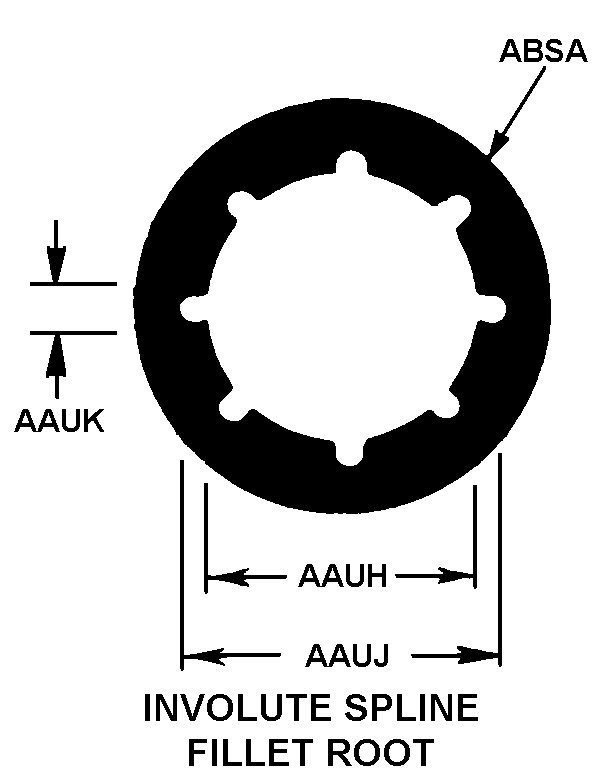

| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | POLYETHER URETHANE,CURED WITH 4,4-1-METHYLENE-BIS-2-CLORO ANILINE |
| COLOR AND LOCATION | OLIVE DRAB OVERALL |
| HANDWHEEL STYLE | 36 SPOKES |
| OUTSIDE DIAMETER | 12.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.250 INCHES NOMINAL |
| HUB LENGTH | 1.500 INCHES NOMINAL |
| HUB OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| SPOKE ANGLE IN DEG | 120.0 |
| SPOKE QUANTITY | 3 |
| DRIVE FACILITY STYLE | 116 INVOLUTE SPLINE FILLET ROOT |
