NSN 5340-01-033-9540 030-001188, 030-001200, 01-033-9540
Product Details | BOW HANDLE
5340-01-033-9540 An item, usually basically U-shaped, designed to be rigidly attached to another item such as a drawer, door, or window to provide a grip for opening, closing, pulling, and the like. Includes sash lifts of the bow type and handles designed for the purpose of carrying an item. It may or may not include a mounting plate. Excludes HANDLE,DOOR.
Part Alternates: 030-001188, 030-001200, 5340-01-033-9540, 01-033-9540, 5340010339540, 010339540, 030001188, 030001200
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JAN 1977 | 01-033-9540 | 20350 ( HANDLE, BOW ) |

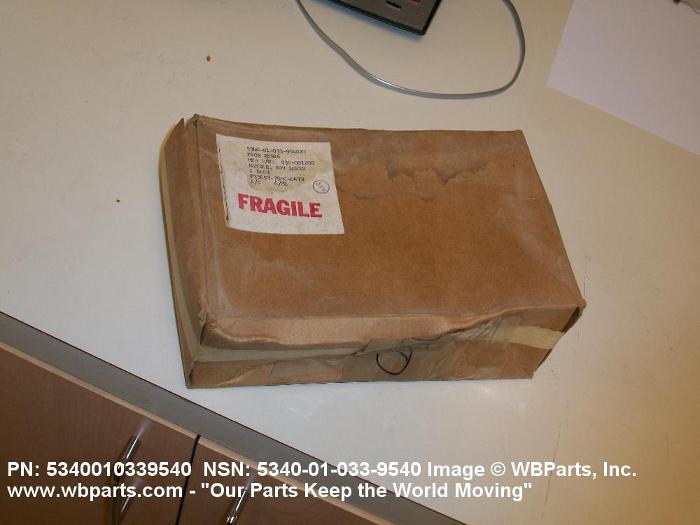

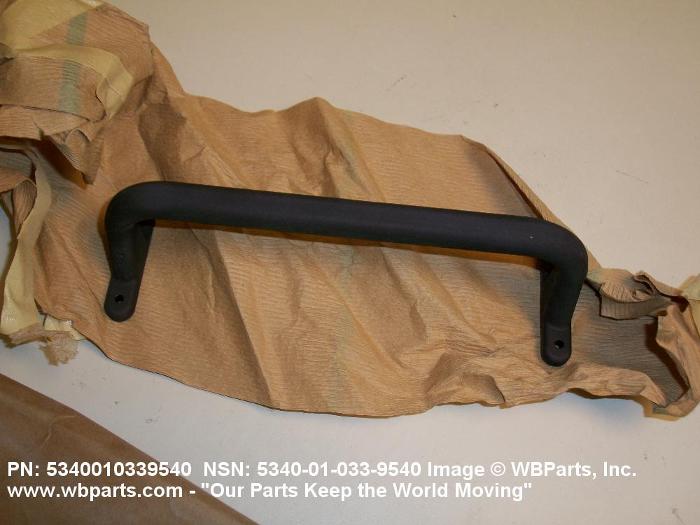

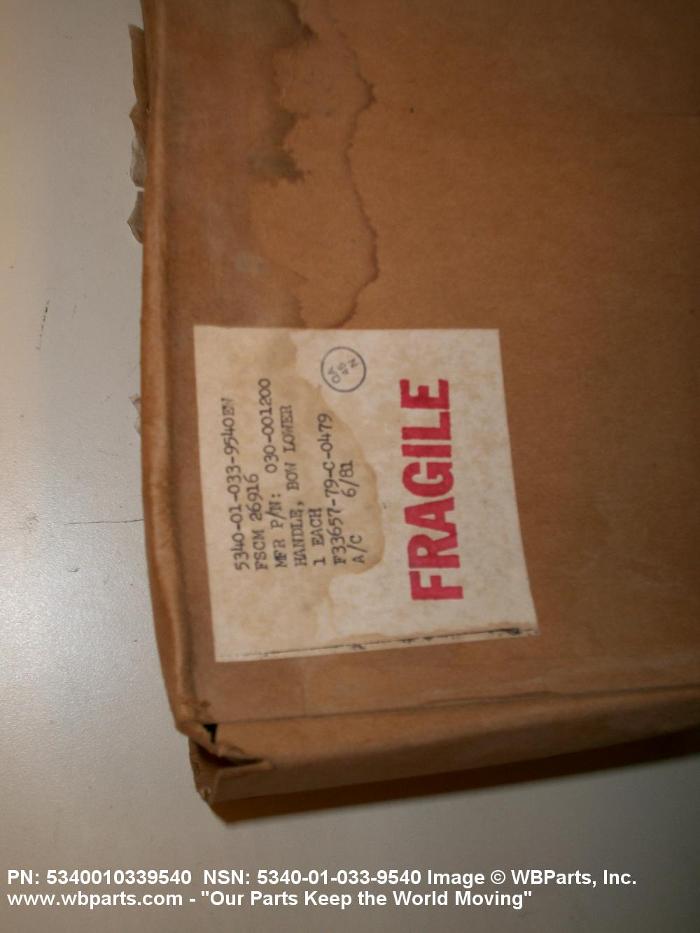

Drawings & Photos | NSN 5340-01-033-9540
Demand History | NSN 5340-01-033-9540
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-033-9540 | 2010-03-26 | 20 | United States |
| 5340-01-033-9540 | 2010-03-24 | 40 | DIBBS |
| 5340-01-033-9540 | 2010-03-22 | 20 | United States |
| 5340-01-033-9540 | 2010-03-11 | 20 | DIBBS |
| 5340-01-033-9540 | 2010-03-09 | 17 | United States |
| 5340-01-033-9540 | 2010-03-03 | 29 | US |
| 5340-01-033-9540 | 2010-03-03 | 29 | United States |
| 5340-01-033-9540 | 2010-03-03 | 29 | US |
| 5340-01-033-9540 | 2010-02-24 | 20 | DIBBS |
| 5340-01-033-9540 | 2010-02-22 | 17 | DIBBS |
| 5340-01-033-9540 | 2009-11-04 | 8 | DIBBS |
| 5340-01-033-9540 | 2009-08-10 | 4 | DIBBS |
| 5340-01-033-9540 | 2009-08-05 | 9 | DIBBS |
| 5340-01-033-9540 | 2009-06-11 | 10 | DIBBS |
| 5340-01-033-9540 | 2009-04-21 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-033-9540
Related Products | NSN 5340-01-033-9540
Technical Data | NSN 5340-01-033-9540
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 8.000 INCHES NOMINAL |
| HANDLE CLEARANCE | 1.940 INCHES NOMINAL |
| MOUNTING FACILITY QUANTITY | 4 |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.625 INCHES NOMINAL |
| SPECIAL FEATURES | HELICAL COIL INSERT,MS21209-C0615 IN COUNTERSUNK BLIND HOLE,MS33537,4 PLACES |
| III END ITEM IDENTIFICATION | AN/ALQ-135(V) |
| MANUFACTURERS CODE | 26916 |
| DESIGN CONTROL REFERENCE | 030-001200 |
Restrictions/Controls & Freight Information | NSN 5340-01-033-9540
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-033-9540
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EW | TG:AIRBORNE ELECTRONIC WARFARE EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
