NSN 5340-01-031-7696 2510056, 01-031-7696, 010317696
Product Details | SYNCHRO CLAMP
5340-01-031-7696 A clamp designed to hold an item in position, alignment or in close proximity by rigidly gripping the projecting rim, ridge, collar or edge of the item. A lockwasher, bolt, screw or the like may be a part of the item of supply.
Part Alternates: 2510056, 5340-01-031-7696, 01-031-7696, 5340010317696, 010317696
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 DEC 1976 | 01-031-7696 | 40268 ( CLAMP, SYNCHRO ) |
Drawings & Photos | NSN 5340-01-031-7696
Cross Reference | NSN 5340-01-031-7696
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2510056 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-031-7696
Related Products | NSN 5340-01-031-7696
Technical Data | NSN 5340-01-031-7696
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35, TY II OR VIII MIL SPEC ALL TREATMENT RESPONSES |

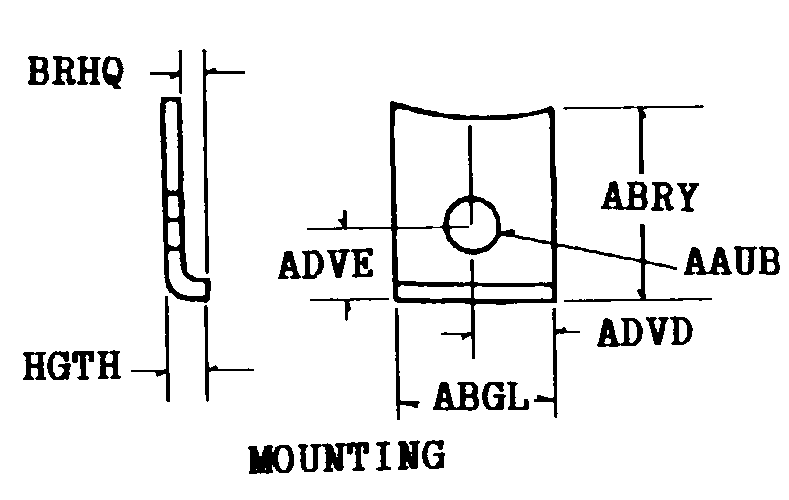

| STYLE DESIGNATOR | C7 MOUNTING |
| WIDTH | 1.574 INCHES NOMINAL |
| LENGTH | 0.656 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 0.188 INCHES NOMINAL |
| HEIGHT | 0.313 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL CRES AISI TY 17-17PH;HEAT TREAT IN ACCORDANCE MIL-H-6875, AGE TEMPER AT 1050 DEG F PORM 10 DEG F FOR 90 MINUTES MINIMUN; PENETRANT INSPECT PER MIL-STD-6866 OR MAGNETIC PARTICLE INSPECT PER MIL-STD-1949; NO CRACKS OR LINEAR INDICATIONS PERMITTED |
Restrictions/Controls & Freight Information | NSN 5340-01-031-7696
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-031-7696
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
