NSN 5340-01-016-3340 SL375001, SL-375-001, SL37500103
Product Details | QUICK RELEASE PLUNGER
5340-01-016-3340 An externally threaded tubular item containing a spring loaded device (pin, ball, etc.). The device is held in the thrown position by the spring and recedes when pressure is exerted against it. It is used as a locator, detent, and the like.
Part Alternates: SL375001, SL-375-001, SL37500103, SL375-001-03, 4219943, 421994-3, 5340-01-016-3340, 01-016-3340, 5340010163340, 010163340
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 FEB 1976 | 01-016-3340 | 19876 ( PLUNGER, QUICK RELEASE ) |

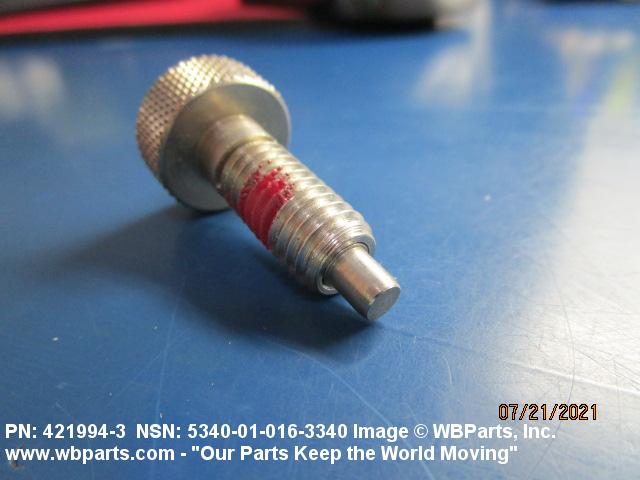

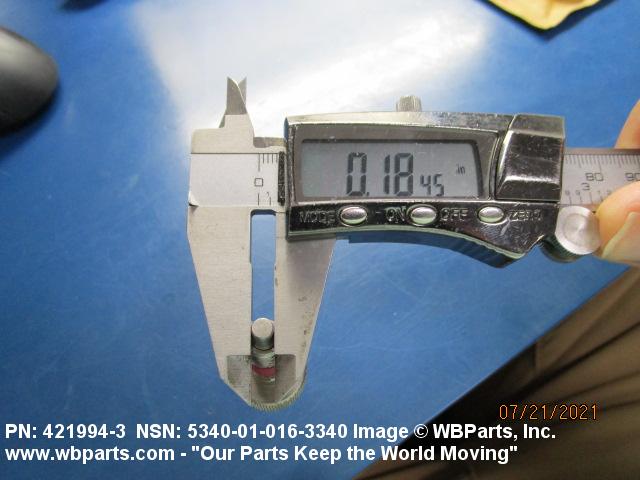

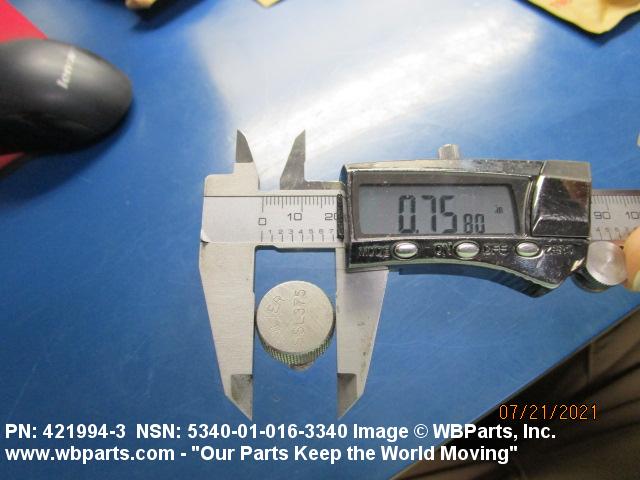

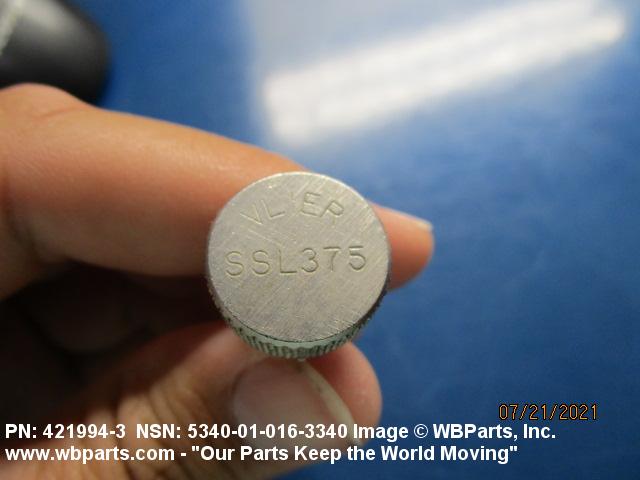

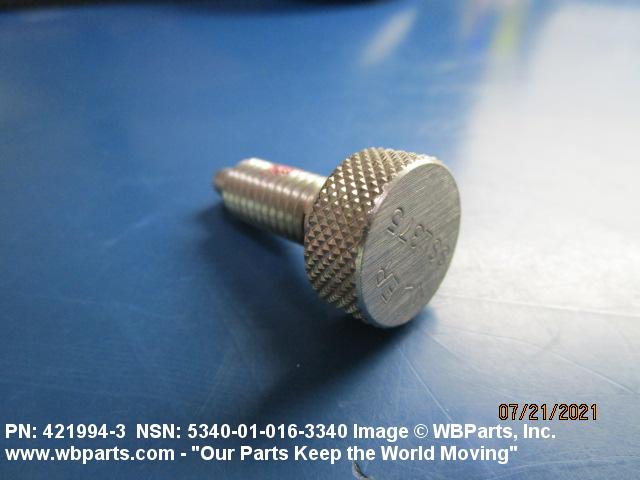

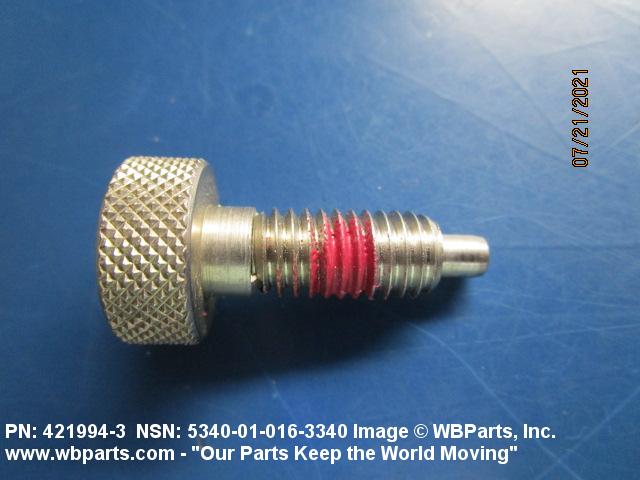

Drawings & Photos | NSN 5340-01-016-3340
Demand History | NSN 5340-01-016-3340
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-016-3340 | 2021-06-174 | 1 | Spain |
| 5340-01-016-3340 | 2018-03-64 | 100 | DIBBS |
| 5340-01-016-3340 | 2015-03-63 | 105 | DIBBS |
| 5340-01-016-3340 | 2014-04-93 | 84 | DIBBS |
| 5340-01-016-3340 | 2013-08-219 | 79 | DIBBS |
| 5340-01-016-3340 | 2013-04-107 | 76 | DIBBS |
| 5340-01-016-3340 | 2012-12-362 | 83 | DIBBS |
| 5340-01-016-3340 | 2010-12-341 | 74 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-016-3340
Related Products | NSN 5340-01-016-3340
Technical Data | NSN 5340-01-016-3340
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |

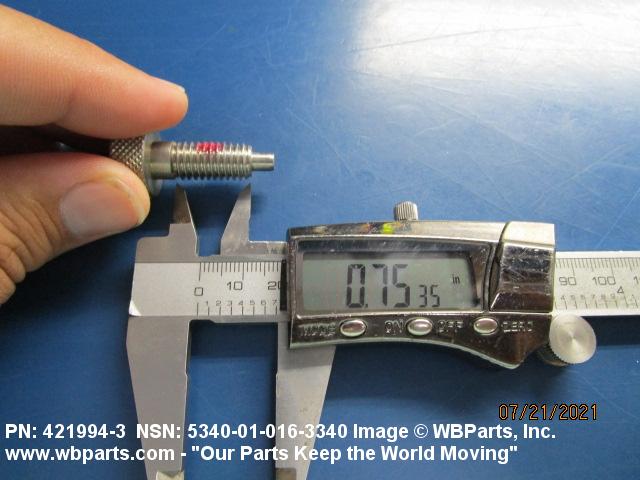

| THREAD LENGTH | 0.750 INCHES NOMINAL |

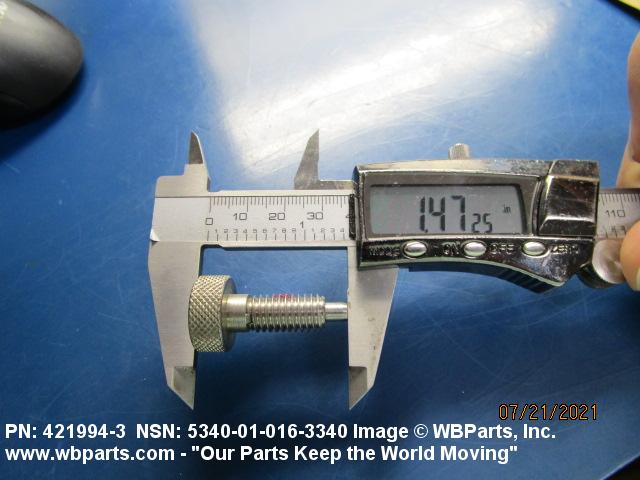

| OVERALL LENGTH | 1.469 INCHES NOMINAL |
| SHAPE | ROUND |
| MANUFACTURERS CODE | 01226 |
| DESIGN CONTROL REFERENCE | SL375-001-03 |
Restrictions/Controls & Freight Information | NSN 5340-01-016-3340
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-016-3340
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
