NSN 5340-01-015-2615 9111M75P17, 01-015-2615, 010152615
Product Details | LOOP CLAMP
5340-01-015-2615 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 9111M75P17, 5340-01-015-2615, 01-015-2615, 5340010152615, 010152615
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JAN 1976 | 01-015-2615 | 17532 ( CLAMP, LOOP ) |

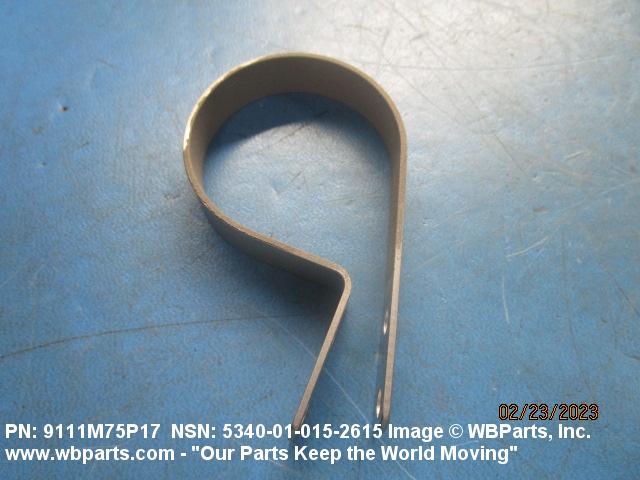

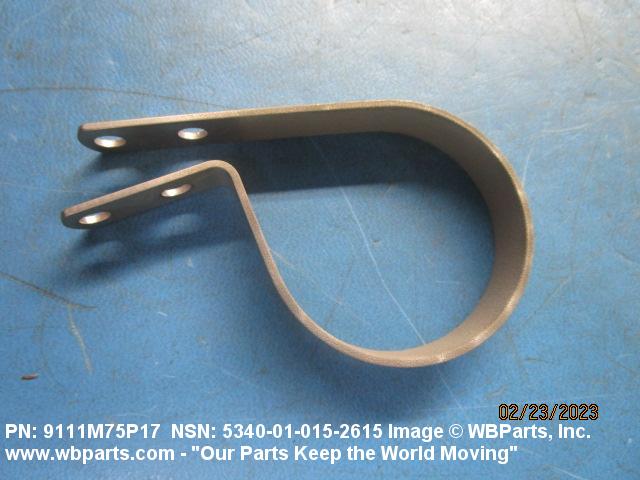

Drawings & Photos | NSN 5340-01-015-2615
Demand History | NSN 5340-01-015-2615
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9111M75P17 | 2023-02-54 | 10 | United States |
| 5340-01-015-2615 | 2022-11-311 | 6 | United States |
| 5340-01-015-2615 | 2014-10-297 | 68 | DIBBS |
| 5340-01-015-2615 | 2014-10-286 | 68 | DIBBS |
| 5340-01-015-2615 | 2014-04-94 | 52 | DIBBS |
| 5340-01-015-2615 | 2014-03-83 | 52 | DIBBS |
| 5340-01-015-2615 | 2012-11-318 | 61 | DIBBS |
| 5340-01-015-2615 | 2012-09-258 | 10 | Taiwan |
| 5340-01-015-2615 | 2008-02-36 | 93 | DIBBS |
Cross Reference | NSN 5340-01-015-2615
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9111M75P17 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-015-2615
Technical Data | NSN 5340-01-015-2615
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 BAND |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE BAND |
| STYLE DESIGNATOR | A17 SINGLE LOOP |

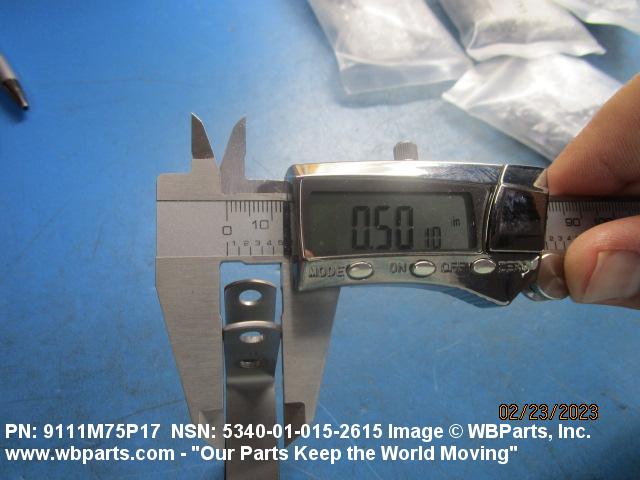

| OVERALL WIDTH | 0.480 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

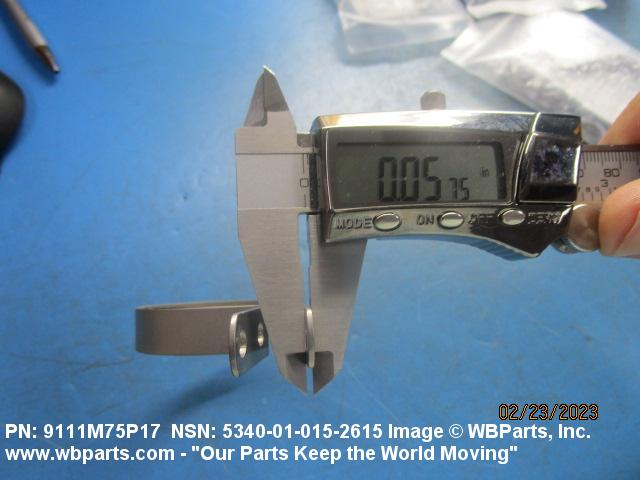

| MATERIAL THICKNESS | 0.057 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 0.610 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.980 INCHES MINIMUM AND 2.030 INCHES MAXIMUM |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 2.180 INCHES MINIMUM AND 2.260 INCHES MAXIMUM |
| LOOP INSIDE DIAMETER | 1.810 INCHES MINIMUM AND 1.830 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

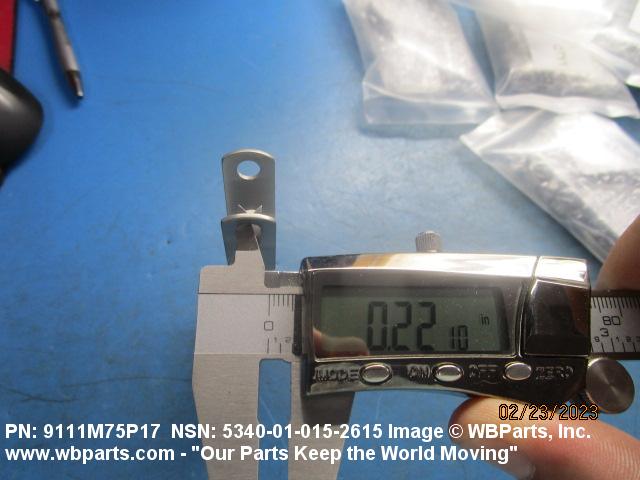

| DIAMETER | 0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM |
| MANUFACTURERS CODE | 07482 |

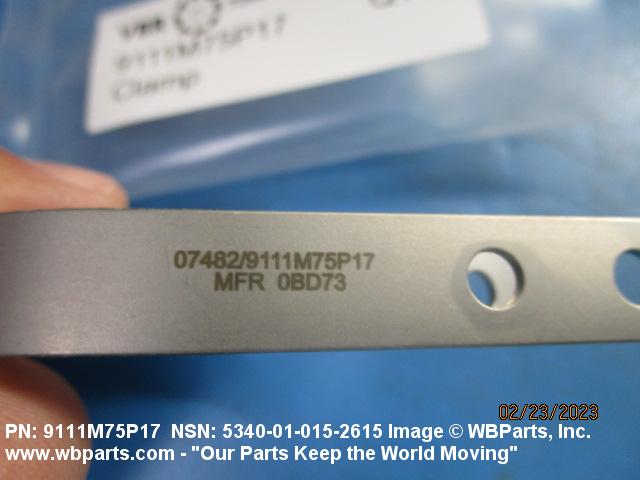

| DESIGN CONTROL REFERENCE | 9111M75P17 |
Restrictions/Controls & Freight Information | NSN 5340-01-015-2615
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-015-2615
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
