NSN 5340-01-007-4559 TA1718SS4X, 2115019112, 211-501-9112
Product Details | LOOP CLAMP
5340-01-007-4559 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: TA1718SS4X, 2115019112, 211-501-9112, 5340-01-007-4559, 01-007-4559, 5340010074559, 010074559
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05-AUG-75 | 01-007-4559 | 17532 ( CLAMP, LOOP ) |

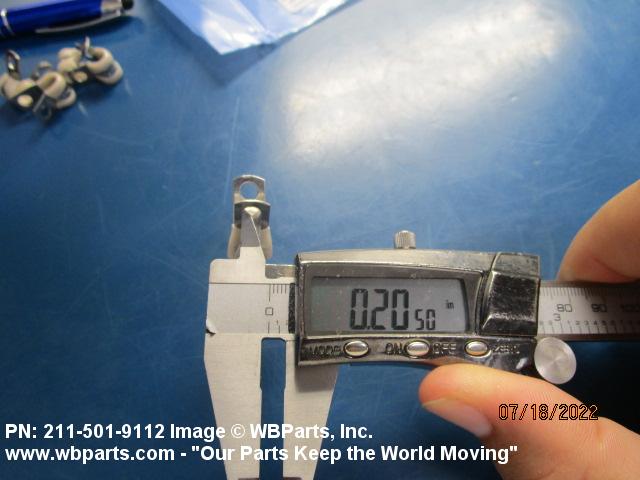

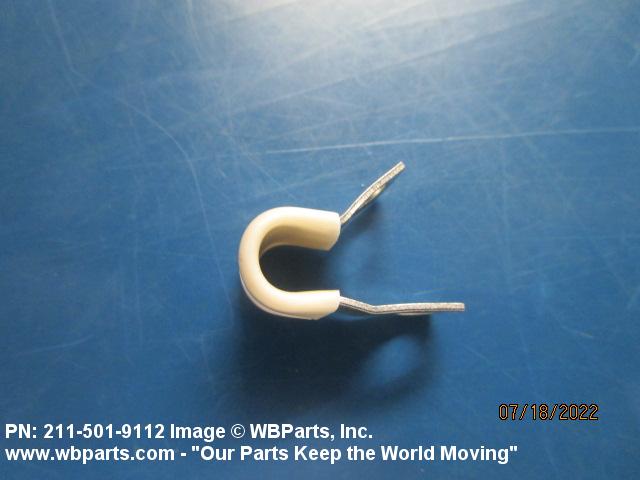

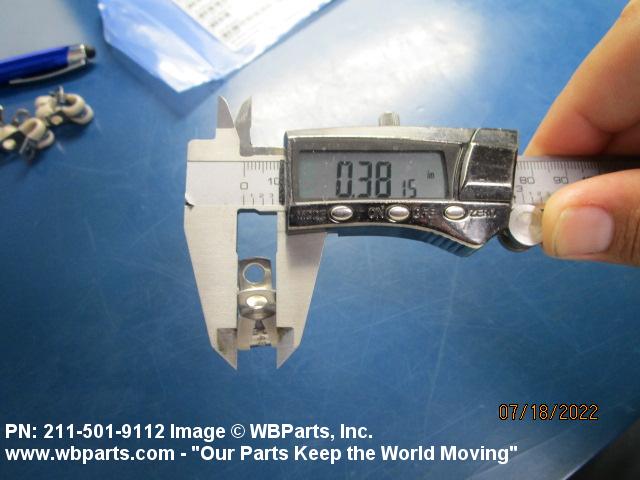

Drawings & Photos | NSN 5340-01-007-4559
Demand History | NSN 5340-01-007-4559
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2115019112 | 2022-07-186 | 5 | Sweden |
Cross Reference | NSN 5340-01-007-4559
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 211-501-9112 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| JM43LC2SS4X | 22175 | J & M PRODUCTS, INC. |
| JM43LC3SS4X | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| TA1718SS04X | 84971 | KIRKHILL-TA CO. DBA TA DIVISION |
| TA1718SS4X | 84971 | KIRKHILL-TA CO. DBA TA DIVISION |
| TA724SS4X | 84971 | KIRKHILL-TA CO. DBA TA DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-007-4559
Technical Data | NSN 5340-01-007-4559
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 321 BAND PLASTIC POLYTETRAFLUOROETHYLENE CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC 1ST MATERIAL RESPONSE OR AMS 5510 ASSN STD 2ND MATERIAL RESPONSE BAND AMS 3651 ASSN STD SINGLE MATERIAL RESPONSE CUSHION |
| SURFACE TREATMENT | PASSIVATE BAND |
| STYLE DESIGNATOR | A2 SINGLE LOOP |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.0285 INCHES MINIMUM AND 0.0355 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.514 INCHES MINIMUM AND 0.544 INCHES MAXIMUM |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.717 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.199 INCHES MINIMUM AND 0.209 INCHES MAXIMUM |
| CUSHIONING ENVIRONMENTAL PROTECTION | HEAT |
Restrictions/Controls & Freight Information | NSN 5340-01-007-4559
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
