NSN 5340-00-997-4448 H10, 00-997-4448, 009974448
Product Details | HAND CRANK
5340-00-997-4448 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial
Part Alternates: H10, 5340-00-997-4448, 00-997-4448, 5340009974448, 009974448
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 APR 1967 | 00-997-4448 | 17533 ( CRANK, HAND ) |
Drawings & Photos | NSN 5340-00-997-4448
Demand History | NSN 5340-00-997-4448
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B286 | 2021-02-56 | 30 | DIBBS |
| H10 | 2020-10-281 | 11 | DIBBS |
| H10 | 2020-05-135 | 11 | DIBBS |
| H10 | 2020-04-104 | 1 | DIBBS |
| H10 | 2020-04-98 | 4 | DIBBS |
| 5340-00-997-4448 | 2015-02-35 | 1 | DIBBS |
| 5340-00-997-4448 | 2013-11-332 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-997-4448
Technical Data | NSN 5340-00-997-4448
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| COLOR AND LOCATION | RED HANDLE |
| ARM STYLE | 10 OFFSET |
| OFFSET HEIGHT | 2.500 INCHES NOMINAL |
| CRANK THROW LENGTH | 18.000 INCHES NOMINAL |

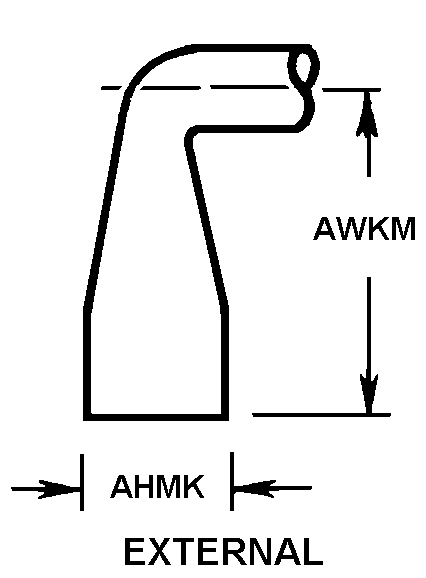

| DRIVE END STYLE | 104 EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | ANY ACCEPTABLE |
| LENGTH FROM END TO ARM CENTER | 6.250 INCHES NOMINAL |

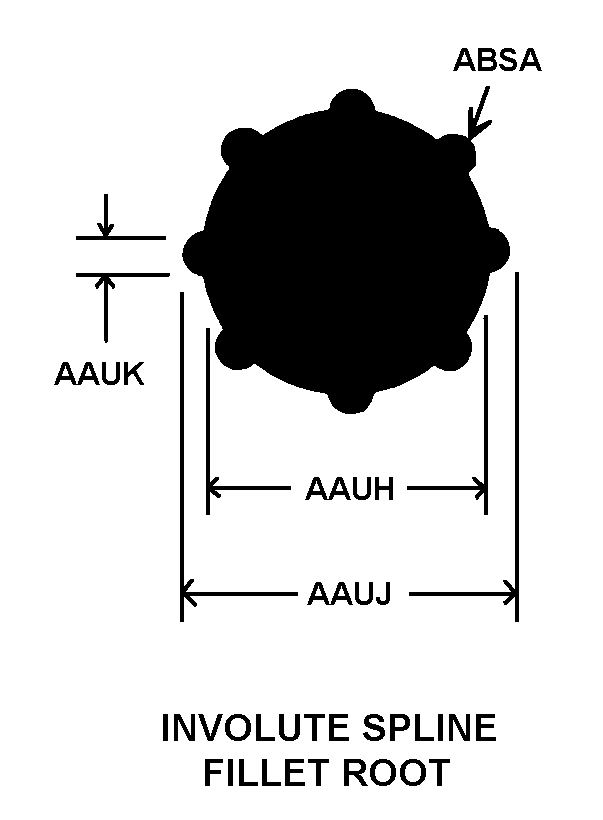

| DRIVE FACILITY STYLE | 151 INVOLUTE SPLINE FILLET ROOT |
| SPLINE MINOR DIAMETER | 1.750 INCHES NOMINAL |
| SPLINE MAJOR DIAMETER | 2.500 INCHES NOMINAL |
| SPLINE WIDTH | 0.375 INCHES NOMINAL |
| OVERALL DEPTH | 1.375 INCHES NOMINAL |
| DRIVE FACILITY OUTSIDE DIAMETER | ANY ACCEPTABLE |
| SPLINE QUANTITY | 10 |
| CRANK OVERALL LENGTH | 21.000 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | INTEGRAL |
| HANDLE STYLE | 64 ROUND |
| HANDLE LENGTH | 9.000 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | INCLUDED |
| RATCHET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-00-997-4448
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-997-4448
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
