NSN 5340-00-994-5244 9696X2RP, 00-994-5244, 009945244
Product Details | SWIVEL CASTER
5340-00-994-5244 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: 9696X2RP, 5340-00-994-5244, 00-994-5244, 5340009945244, 009945244
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-994-5244 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-00-994-5244
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-994-5244
Related Products | NSN 5340-00-994-5244
Technical Data | NSN 5340-00-994-5244
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | RUBBER, SYNTHETIC OVERALL |
| SAFE OPERATING LOAD RATING | 75.0 POUNDS NOMINAL |
| STYLE DESIGNATOR | 6 SWIVEL OFFSET |
| WHEEL DIAMETER | 2.000 INCHES NOMINAL |
| TREAD WIDTH | 0.812 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 2.500 INCHES NOMINAL |

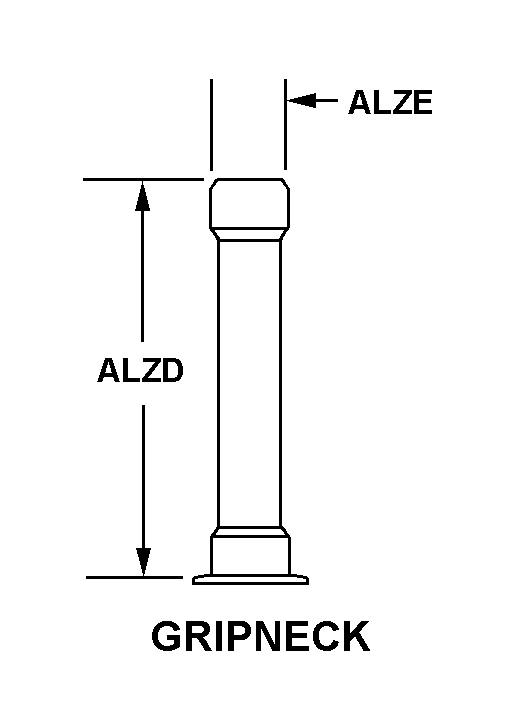

| STEM STYLE | 1 GRIPNECK |
| STEM LENGTH | 1.375 INCHES NOMINAL |
| STEM DIAMETER | 0.487 INCHES NOMINAL |

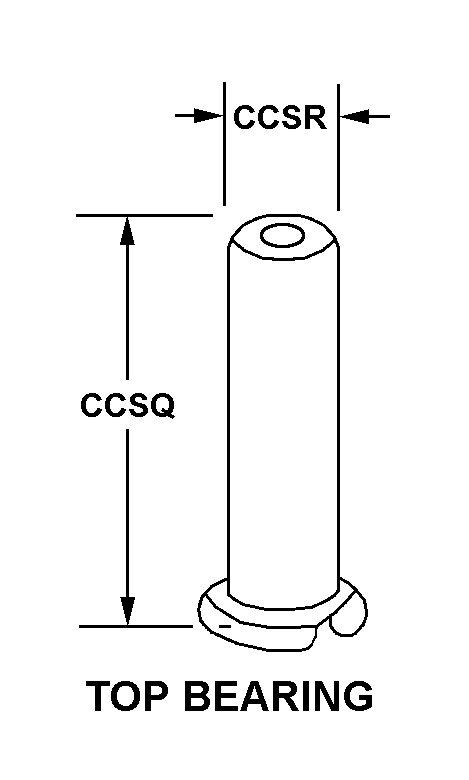

| STEM SOCKET STYLE | 6 TOP BEARING |
| STEM SOCKET DEPTH | 1.500 INCHES NOMINAL |
| STEM SOCKET DIAMETER | 0.438 INCHES NOMINAL |
| WHEEL BEARING TYPE | SLEEVE |
| SWIVEL BEARING TYPE | BALL |
| SWIVEL BEARING ARRANGEMENT | ONE ROW |
| KING BOLT BEARING TYPE | ANNULAR BALL |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
Restrictions/Controls & Freight Information | NSN 5340-00-994-5244
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-994-5244
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
