NSN 5340-00-988-3210 MS252814W, MS25281-4W, MS25281R4
Product Details | LOOP CLAMP
5340-00-988-3210 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS252814W, MS25281-4W, MS25281R4, MS25281-R4, NMCCL141N4, NMCST9M5294, NMC-ST9M529-4, NMCST9M529-4, OP23004, OP2300-4, PPC4, 5M194, 5M19-4, 5340-00-988-3210, 00-988-3210, 5340009883210, 009883210
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-988-3210 | 17532 ( CLAMP, LOOP ) |

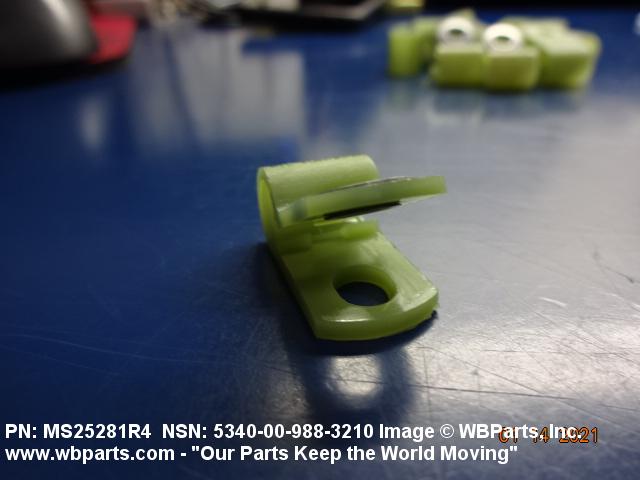

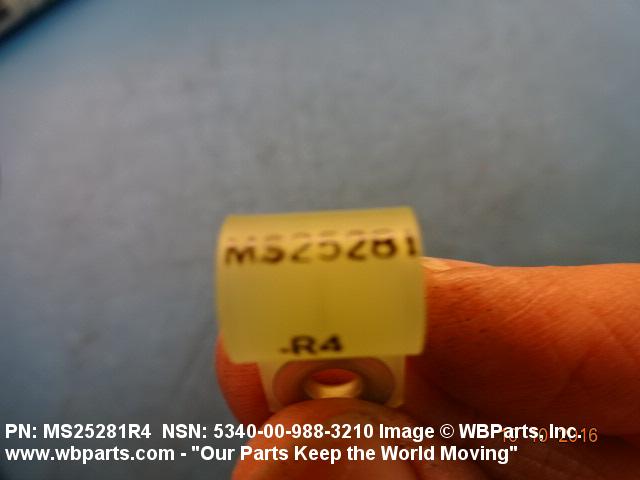

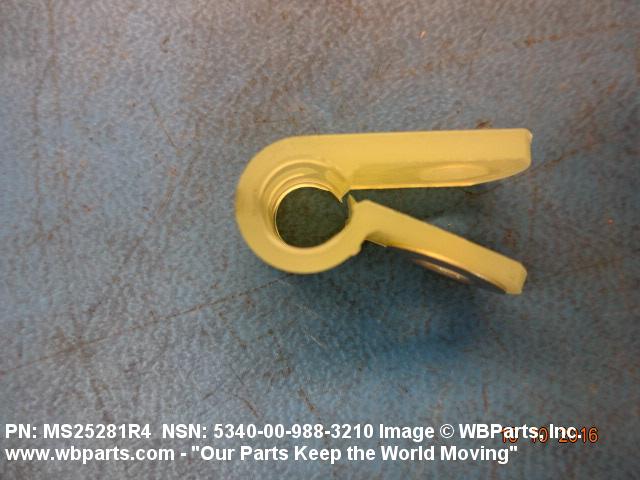

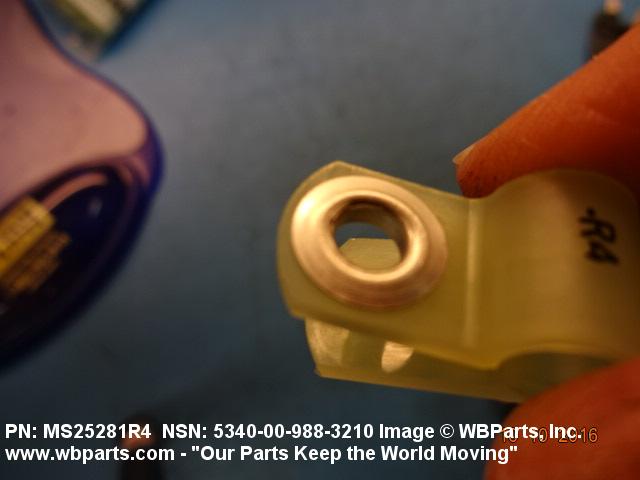

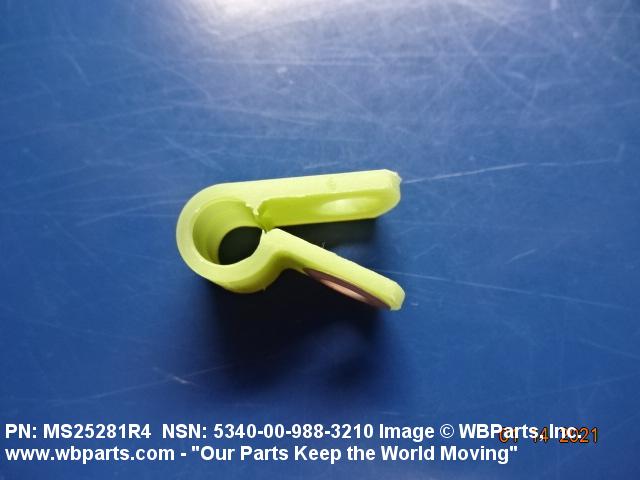

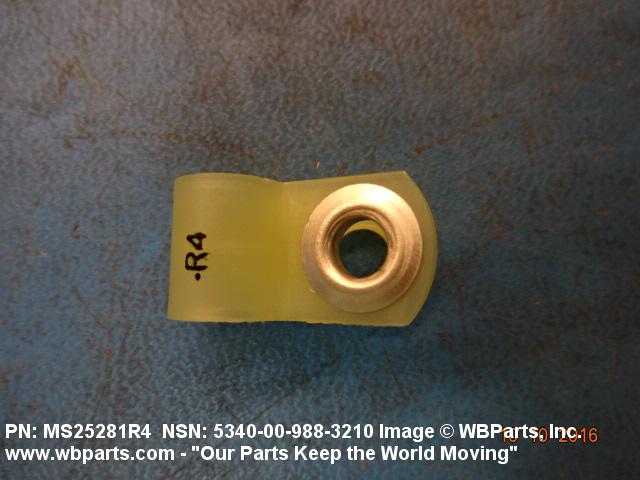

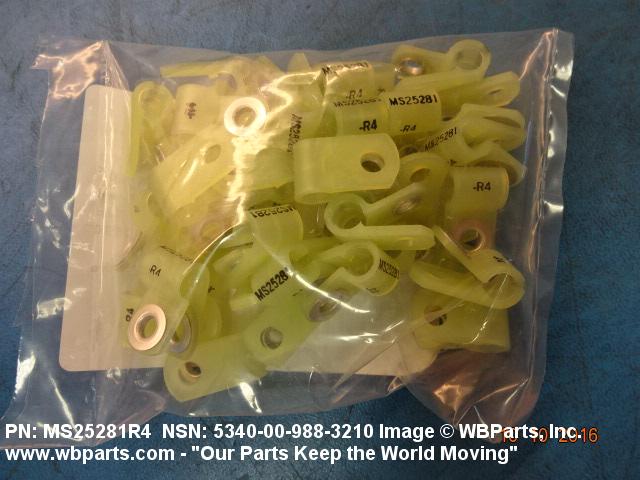

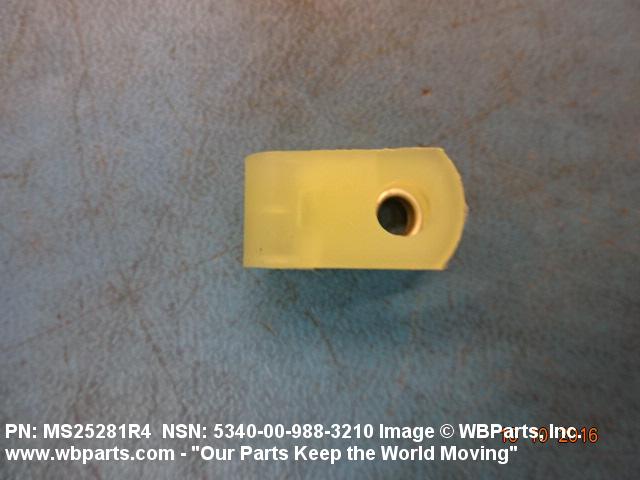

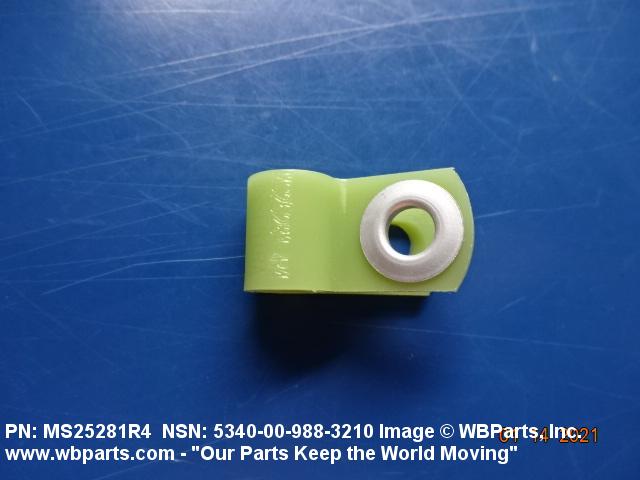

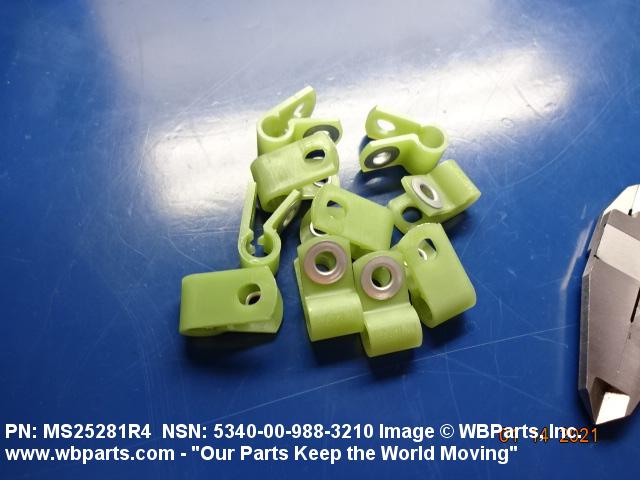

Drawings & Photos | NSN 5340-00-988-3210
Demand History | NSN 5340-00-988-3210
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS25281R4 | 2024-10-283 | 124 | United States |
| 5340-00-988-3210 | 2024-05-149 | 7200 | DIBBS |
| 5340-00-988-3210 | 2023-10-292 | 1285 | DIBBS |
| 5340-00-988-3210 | 2021-12-341 | 6681 | DIBBS |
| 5340-00-988-3210 | 2016-11-309 | 6300 | DIBBS |
| NMCCL141N4 | 2016-08-222 | 15 | Thailand |
| 5340-00-988-3210 | 2016-04-117 | 2000 | DIBBS |
| 5340-00-988-3210 | 2016-03-81 | 41 | MANUAL |
| NMCCL141N4 | 2016-03-81 | 41 | United States |
| MS25281R4 | 2016-01-08 | 130 | United States |
| MS25281R4 | 2013-01-04 | 4 | United States |
| 5340-00-988-3210 | 2012-02-53 | 2997 | DIBBS |
| MS25281R4 | 2011-07-187 | 1250 | United States |
| 5340-00-988-3210 | 2009-01-30 | 3885 | DIBBS |
| 5340-00-988-3210 | 2008-03-77 | 1894 | DIBBS |
Cross Reference | NSN 5340-00-988-3210
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5M19-4 | 76301 | BOEING COMPANY, THE DBA BOEING |
| AS25281 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS25281-4W | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS25281-R4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS25281R4 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS25281R4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NMC-ST9M529-4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NMCCL141N4 | 03296 | NMC GROUP, INC. |
| NMCST9M529-4 | 03296 | NMC GROUP, INC. |
| OP2300-4 | 81872 | OLYMPIC PLASTICS CO SUBSIDIARY OF INTERCONTINENTAL DIAMOND CORP |
| PPC4 | 81074 | ITT HOLUB INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-988-3210
Technical Data | NSN 5340-00-988-3210
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYHEXAMETHYLENE AMIDE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D4066 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A2 SINGLE LOOP |

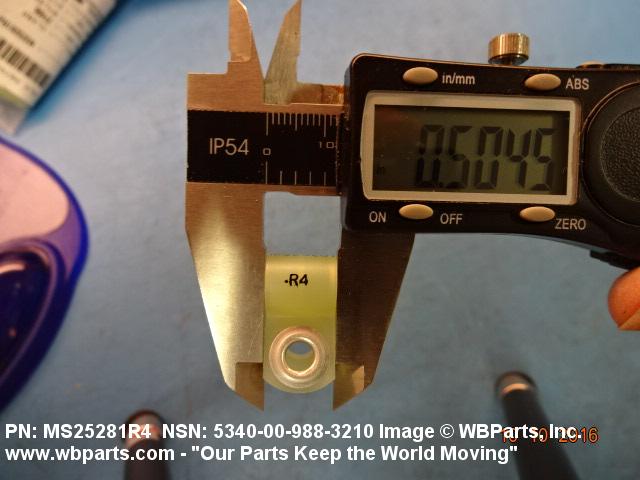

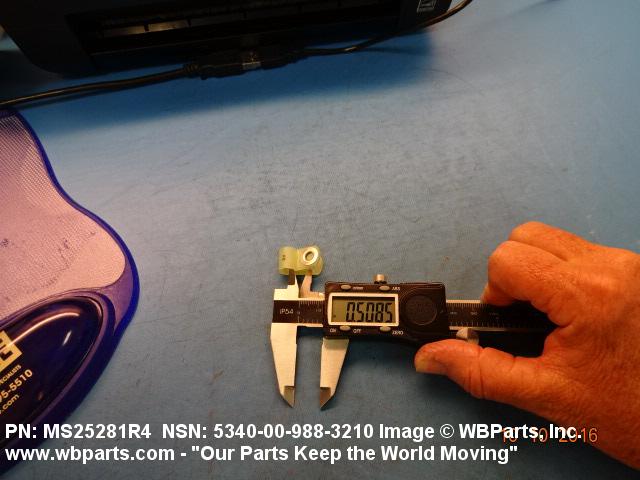

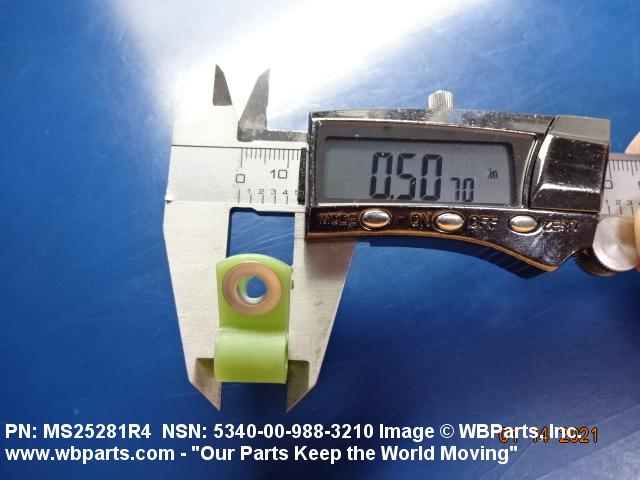

| OVERALL WIDTH | 0.495 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

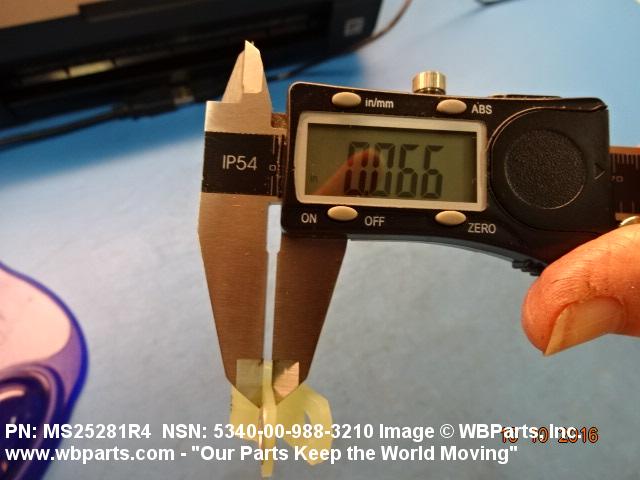

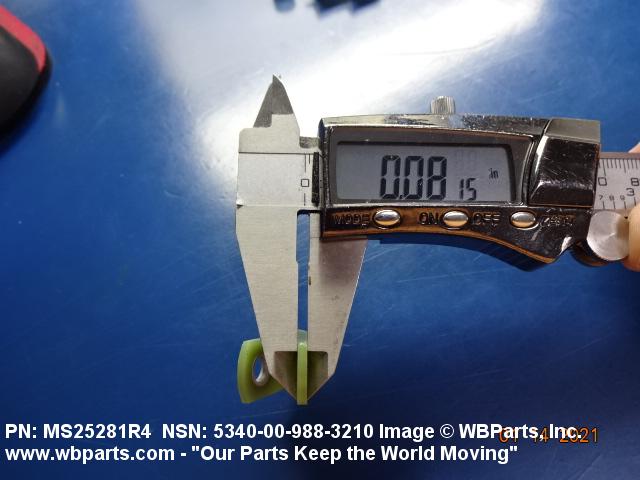

| MATERIAL THICKNESS | 0.060 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.510 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.760 INCHES NOMINAL |

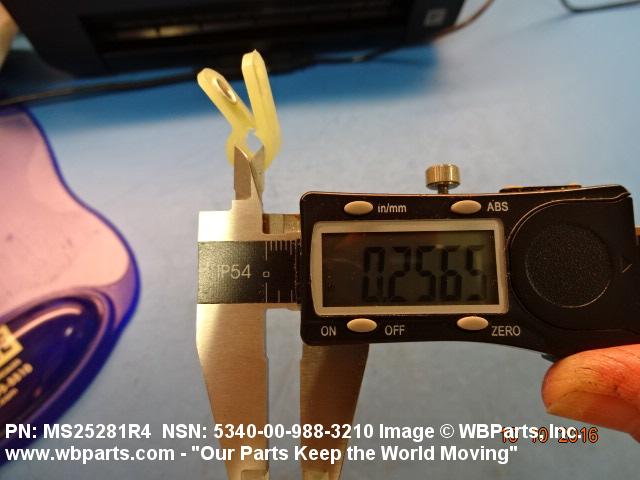

| LOOP INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

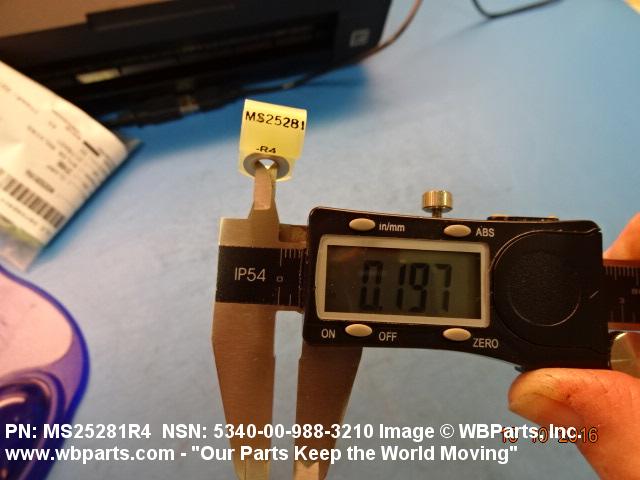

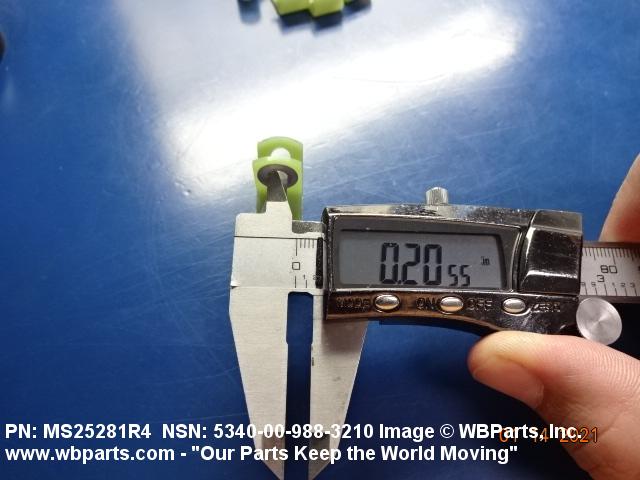

| DIAMETER | 0.198 INCHES MINIMUM AND 0.213 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25281-4W |
Restrictions/Controls & Freight Information | NSN 5340-00-988-3210
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
