NSN 5340-00-986-7015 009867015
Product Details | HINGE TORSION BAR
5340-00-986-7015 A straight metal item of various cross-sectional shapes, with serrations, flats, or the like, on each end. It is designed to withstand a severe twisting action along its longitudinal axis while held fast at both ends. It is used in lieu of a hinge pin and creates tension on a hatch(es), door(s), gate(s), or the like, when in a closed or open position. Excludes TORSION BAR, SUSPENSION.
Part Alternates: 009867015
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-986-7015 | 21948 ( TORSION BAR, HINGE ) |

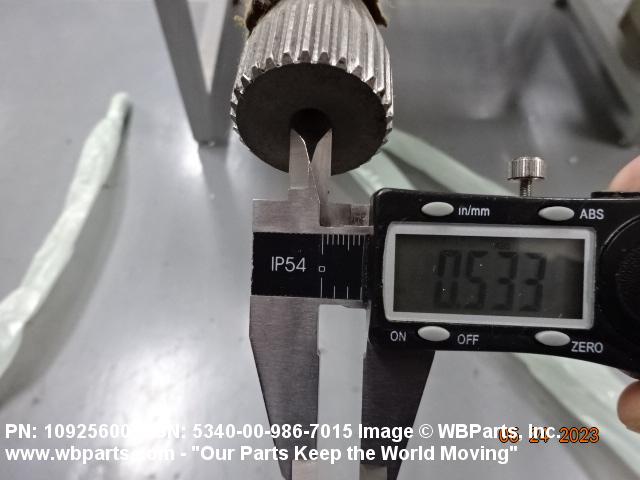

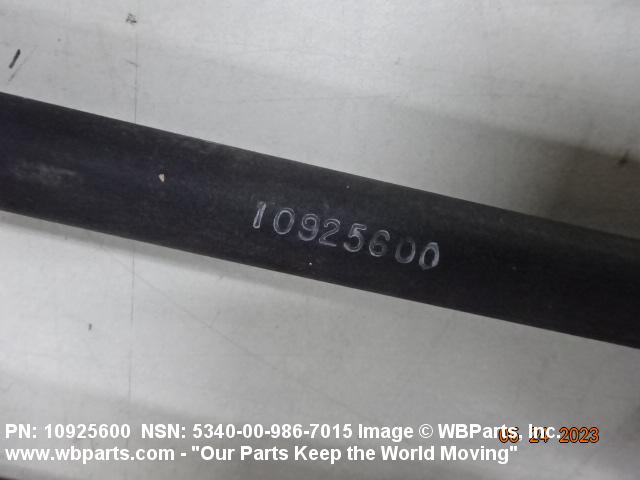

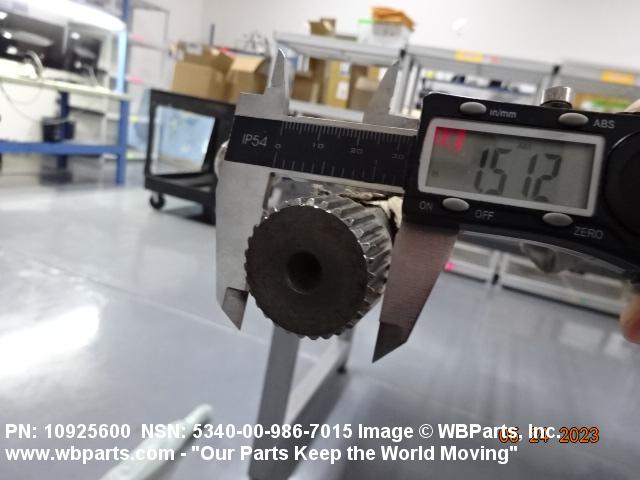

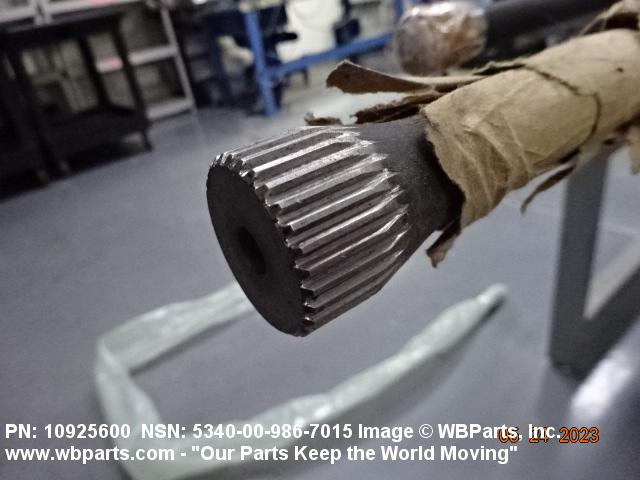

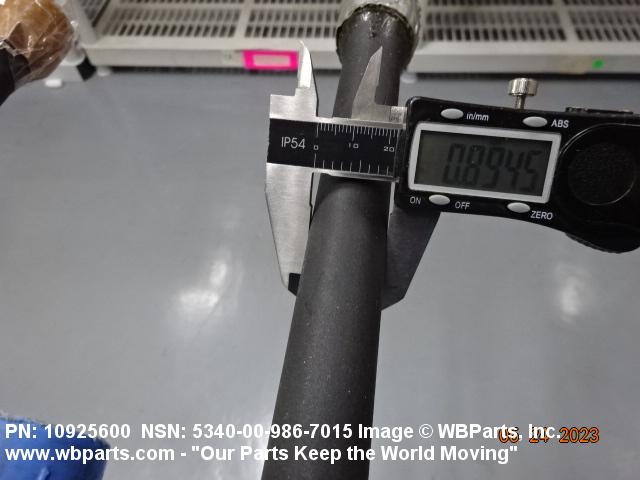

Drawings & Photos | NSN 2510-00-986-7015
Demand History | NSN 5340-00-986-7015
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2510-00-986-7015 | 2023-07-209 | 6 | Brazil |
| 2510-00-986-7015 | 2010-04-106 | 3 | United Arab Emirates |
| 2510-00-986-7015 | 2009-09-265 | 5 | Belgium |
| 2510-00-986-7015 | 2008-01-31 | 400 | DIBBS |
| 2510-00-986-7015 | 2007-10-289 | 391 | DIBBS |
| 2510-00-986-7015 | 2007-04-93 | 335 | DIBBS |
| 2510-00-986-7015 | 2007-03-89 | 10 | DIBBS |
| 2510-00-986-7015 | 2007-03-72 | 30 | DIBBS |
| 2510-00-986-7015 | 2007-02-58 | 370 | DIBBS |
| 2510-00-986-7015 | 2006-06-174 | 73 | DIBBS |
| 2510-00-986-7015 | 2006-06-170 | 35 | DIBBS |
| 2510-00-986-7015 | 2006-06-167 | 184 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-986-7015
Technical Data | NSN 5340-00-986-7015
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL,SPEC DATA,FED,FED QQ-S-624,AMEND 2,8650 4150,6150H,9850H; SOLID BAR,77-15/16 IN. MINUS 1/8 IN. LG O/A,0.876 IN. OD; CONNECTING END DATA,W/INVOLUTE SPLINES,SPLINE DATA,30 SPLINE,30 DEG PRESSURE ANGLE,1.2500 IN. PICH DIA,5/8 IN. LG |
Restrictions/Controls & Freight Information | NSN 5340-00-986-7015
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
