NSN 5340-00-976-1808 SCRHD1212SAASRHD12, SCRHD12-12SAASRHD12, SCRHD1212SAASRRHD12
Product Details | SWIVEL CASTER
5340-00-976-1808 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: SCRHD1212SAASRHD12, SCRHD12-12SAASRHD12, SCRHD1212SAASRRHD12, SCRHD12-12SAASRRHD12, 5340-00-976-1808, 00-976-1808, 5340009761808, 009761808
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-976-1808 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-00-976-1808
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-976-1808
Related Products | NSN 5340-00-976-1808
Technical Data | NSN 5340-00-976-1808
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY QQ-A-225/2 WHEEL RIM,BODY AND PLATE |
| SAFE OPERATING LOAD RATING | 2600.0 POUNDS MINIMUM AND 3200.0 POUNDS MAXIMUM |
| STYLE DESIGNATOR | 2 SWIVEL OFFSET |
| WHEEL DIAMETER | 12.000 INCHES NOMINAL |
| TREAD WIDTH | 3.750 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 16.100 INCHES NOMINAL |

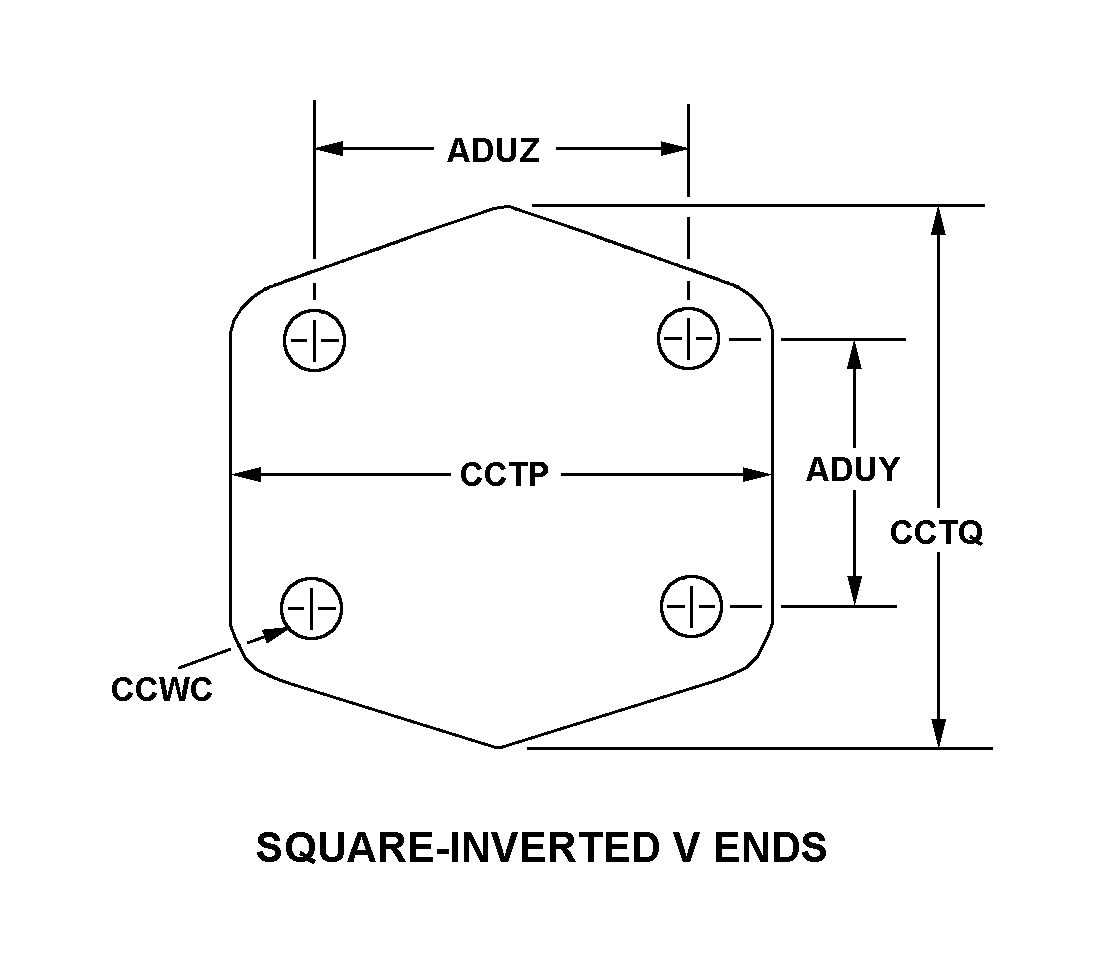

| PLATE STYLE | 11 SQUARE-INVERTED V ENDS |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 4.875 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 6.750 INCHES NOMINAL |
| CASTER PLATE LENGTH | 8.120 INCHES NOMINAL |
| CASTER PLATE WIDTH | 7.000 INCHES NOMINAL |
| CASTER PLATE MOUNTING HOLE DIAMETER | 0.625 INCHES NOMINAL |
| WHEEL BEARING TYPE | THRUST |
| SWIVEL BEARING TYPE | ANNULAR BALL |
| SWIVEL BEARING ARRANGEMENT | ONE ROW |
| KING BOLT BEARING TYPE | ROLLER |
| WHEEL QUANTITY | 2 |
| WHEEL TYPE | BUILT UP |
| FEATURES PROVIDED | SHOCK ABSORBER AND SWIVEL LOCK |
Restrictions/Controls & Freight Information | NSN 5340-00-976-1808
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-976-1808
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
