NSN 5340-00-964-6980 117, 00-964-6980, 009646980
Product Details | SHELF BRACKET
5340-00-964-6980 An item having two legs forming a 90 degree angle (1.5705 radians) and may be rigid or folding. It is to be fastened to a wall and so designed to hold and support a shelf.
Part Alternates: 117, 5340-00-964-6980, 00-964-6980, 5340009646980, 009646980
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-964-6980 | 06604 ( BRACKET, SHELF ) |

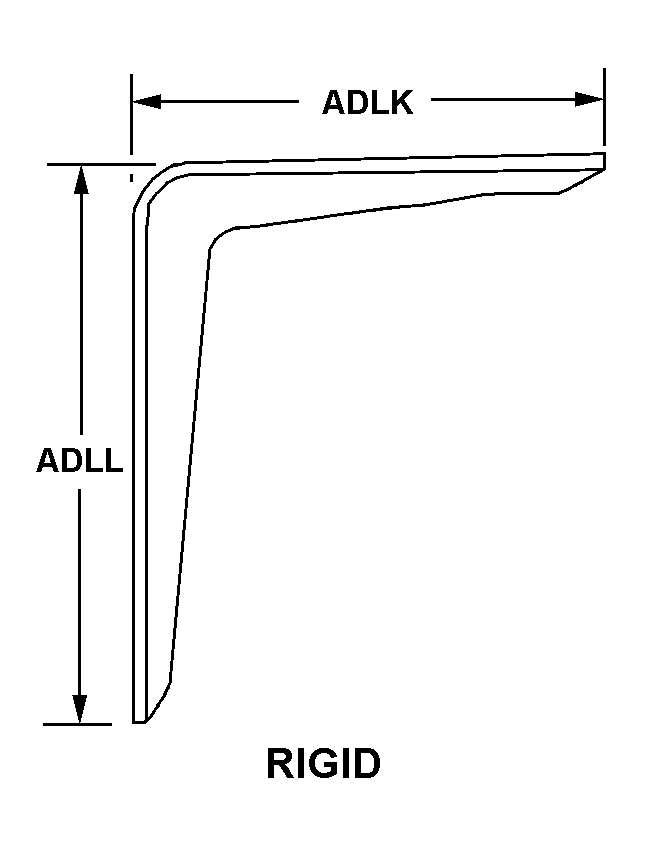

Drawings & Photos | NSN 5340-00-964-6980
Demand History | NSN 5340-00-964-6980
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 117 | 2024-07-206 | 50 | United States |
Cross Reference | NSN 5340-00-964-6980
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 117 | 19090 | NATIONAL INSTITUTES OF HEALTH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-964-6980
Technical Data | NSN 5340-00-964-6980
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 25 RIGID |
| III FIRST LEG LENGTH | 11.250 INCHES NOMINAL |
| III SECOND LEG LENGTH | 5.000 INCHES NOMINAL |
| FIRST LEG STYLE | 104 SQUARE |
| FIRST LEG WIDTH | 1.438 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 138 THREE HOLES |
| FIRST LEG HOLE DIAMETER | 0.312 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.719 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.750 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG LENGTH | 4.500 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG LENGTH | 4.500 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 104 SQUARE |
| SECOND LEG WIDTH | 1.438 INCHES NOMINAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 134 TWO HOLES |
| SECOND LEG HOLE DIAMETER | 0.312 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 4.000 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.719 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.500 INCHES NOMINAL |
| REINFORCEMENT METHOD | WEB OVERALL |
| SPECIAL FEATURES | REINFORCEMENT LOCATED ON LEFT SIDE,FINISH MUST BE ACID RESISTANT GRAY |
| (NON-CORE DATA) FABRICATION METHOD | MACHINED |
Restrictions/Controls & Freight Information | NSN 5340-00-964-6980
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
