Product Details | FLARE LOCK FASTENER
5340-00-953-8825 A shouldered hollow screw and threaded sleeve assembly, designed to be fastened in place by turning the screw, causing one end of the sleeve to flare over the shoulder and against the material through which it has been inserted. Also, a countersunk head hollow screw and flared sleeve-nut assembly, designed to mate with a dimpled hole in the material to which it is fastened. The hollow screws may also have internal threads for attaching screws. See also SHIELD, EXPANSION.
Part Alternates: BACF34D4B4, C39244, C392-4-4, PAF2044, PAF20-4-4, 192044, 1920-4-4, 5340-00-953-8825, 00-953-8825, 5340009538825, 009538825
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 MAY 1966 | 00-953-8825 | 20259 ( FASTENER, FLARE LOCK ) |
Drawings & Photos | NSN 5340-00-953-8825
Demand History | NSN 5340-00-953-8825
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1920-4-4 | 2019-03-64 | 1100 | DIBBS |
| BACF34D4B4 | 2019-03-64 | 1100 | DIBBS |
| C392-4-4 | 2019-03-64 | 1100 | DIBBS |
| PAF20-4-4 | 2019-03-64 | 1100 | DIBBS |
| 1920-4-4 | 2019-03-63 | 1100 | DIBBS |
| BACF34D4B4 | 2019-03-63 | 1100 | DIBBS |
| C392-4-4 | 2019-03-63 | 1100 | DIBBS |
| PAF20-4-4 | 2019-03-63 | 1100 | DIBBS |
| 5340-00-953-8825 | 2018-11-318 | 385 | DIBBS |
| 5340-00-953-8825 | 2018-11-308 | 385 | DIBBS |
| 5340-00-953-8825 | 2014-01-28 | 294 | DIBBS |
| 5340-00-953-8825 | 2012-04-108 | 285 | DIBBS |
| 5340-00-953-8825 | 2012-03-61 | 263 | DIBBS |
| 5340-00-953-8825 | 2010-07-190 | 143 | DIBBS |
| 5340-00-953-8825 | 2010-03-65 | 622 | DIBBS |
| 5340-00-953-8825 | 2009-06-166 | 189 | DIBBS |
| 5340-00-953-8825 | 2008-12-343 | 294 | DIBBS |
| 5340-00-953-8825 | 2008-10-277 | 233 | DIBBS |
Cross Reference | NSN 5340-00-953-8825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1920-4-4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BACF34D4B4 | 08903 | THE BOEING COMPANY DBA BOEING |
| BACF34D4B4 | 81205 | THE BOEING COMPANY DBA BOEING |
| C392-4-4 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| PAF20-4-4 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| PAF20-4-4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-953-8825
Related Products | NSN 5340-00-953-8825
Technical Data | NSN 5340-00-953-8825
| Characteristic | Specifications |
|---|---|

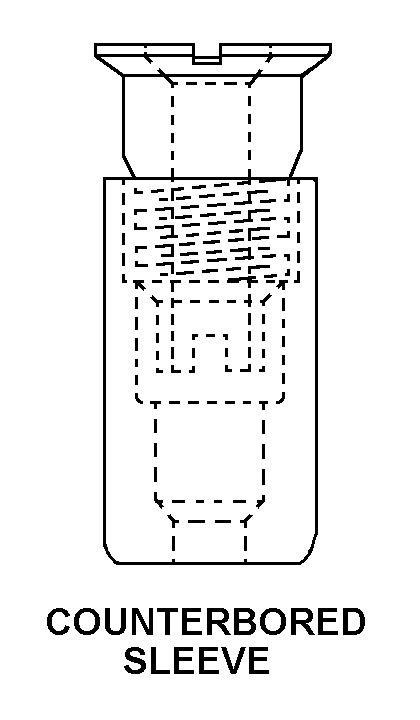

| STYLE DESIGNATOR | E3 COUNTERBORED SLEEVE |
| MOUNTING METHOD | SCREW |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |

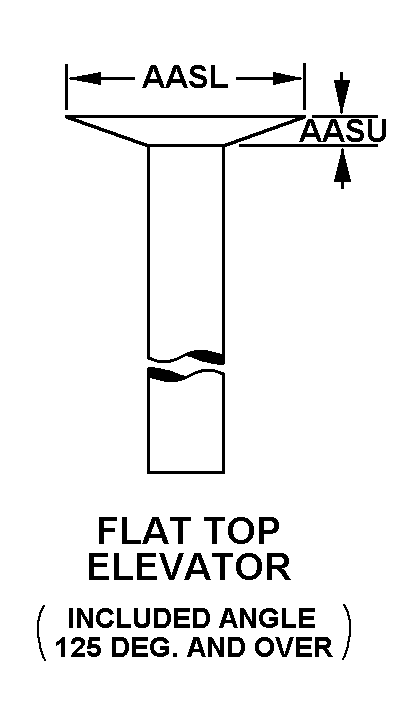

| HEAD STYLE | U6 FLAT TOP ELEVATOR |
| HEAD DIAMETER | 0.358 INCHES NOMINAL |
| HEAD HEIGHT | 0.024 INCHES NOMINAL |

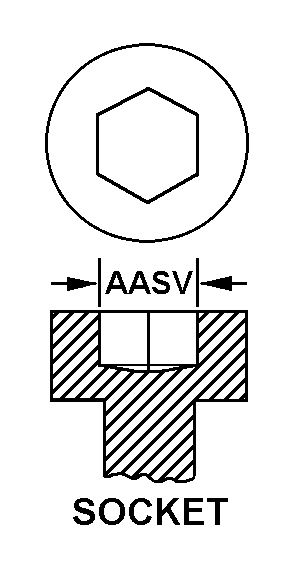

| INTERNAL DRIVE STYLE | W5 SOCKET |
| HOLE SIZE FOR WHICH DESIGNED | 0.2495 INCHES MINIMUM AND 0.2993 INCHES MAXIMUM |
| MATERIAL THICKNESS RANGE FOR WHICH DESIGNED | 0.240 TO 0.260 INCHES |
| SCREW MINIMUM LENGTH FOR WHICH DESIGNED | 0.611 INCHES |
| FEATURES PROVIDED | CLOSED SLEEVE |
Restrictions/Controls & Freight Information | NSN 5340-00-953-8825
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
