NSN 5340-00-949-3807 30L202AB, 30L20-2AB, 00-949-3807
Product Details | CLAMPING CATCH
5340-00-949-3807 A positive fastening device consisting of a mountable base with an extended loop, claw, or the like. It may include a catch strike and mounting hardware for its complete installation on flat surfaces. The loop, claw, or the like can be manually engaged or disengaged readily for the purpose of securing the mating sections of a suitcase, locker-trunk, shipping and storage container, prefabricated building, tool chest or the like. Excludes CATCH, ELBOW; CATCH, FLUSH; CATCH, FRICTION; and LATCH or LOCK (as modified).
Part Alternates: 30L202AB, 30L20-2AB, 5340-00-949-3807, 00-949-3807, 5340009493807, 009493807
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 APR 1966 | 00-949-3807 | 26525 ( CATCH, CLAMPING ) |
Drawings & Photos | NSN 5340-00-949-3807
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-949-3807
Related Products | NSN 5340-00-949-3807
Technical Data | NSN 5340-00-949-3807
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B12 LEVER |
| HOLE DIAMETER | 0.128 INCHES NOMINAL |
| ENGAGING SURFACE WIDTH | 0.660 INCHES NOMINAL |
| ENGAGING SURFACE THICKNESS | 0.055 INCHES NOMINAL |
| HOLE QUANTITY | 2 |

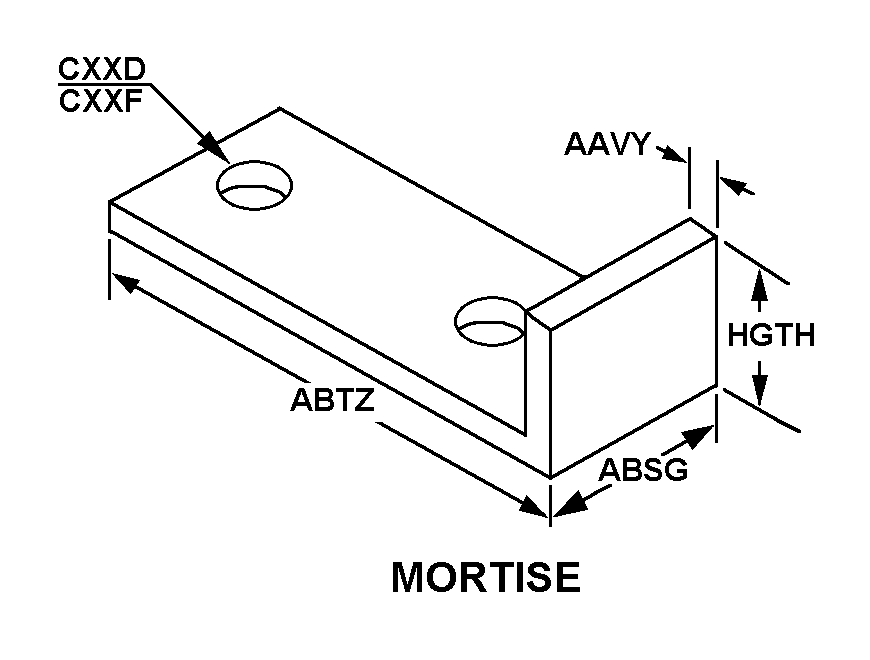

| CATCH STRIKE STYLE | R13 MORTISE |
| MATERIAL THICKNESS | 0.042 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| WIDTH | 0.660 INCHES NOMINAL |
| OVERALL LENGTH | 0.560 INCHES MINIMUM AND 0.600 INCHES MAXIMUM |
| SURFACE HOLE DIAMETER | 0.128 INCHES NOMINAL |
| SURFACE HOLE QUANTITY | 2 |
| OVERALL LENGTH | 2.075 INCHES NOMINAL |
| OVERALL WIDTH | 0.660 INCHES NOMINAL |
| OVERALL HEIGHT | 0.344 INCHES NOMINAL |
| DESIGN TYPE | CLAW ENGAGING |
| OPERATION METHOD | HANDLE |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 30L20-2AB |
Restrictions/Controls & Freight Information | NSN 5340-00-949-3807
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
