NSN 5340-00-948-4377 5535702004, 553-5702-004, 00-948-4377
Product Details | ESCUTCHEON PLATE
5340-00-948-4377 An item of various shapes designed to be used as a mounting plate and/or ornament for door handles, window regulator handles, control rods, and the like.
Part Alternates: 5535702004, 553-5702-004, 5340-00-948-4377, 00-948-4377, 5340009484377, 009484377
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 APR 1966 | 00-948-4377 | 20261 ( ESCUTCHEON PLATE ) |
Drawings & Photos | NSN 5340-00-948-4377
Cross Reference | NSN 5340-00-948-4377
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 553-5702-004 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-948-4377
Technical Data | NSN 5340-00-948-4377
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC PHENOLIC AND CELLULOSE ESCUTCHEON PLATE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TY CFG MIL SPEC SINGLE MATERIAL RESPONSE ESCUTCHEON PLATE |

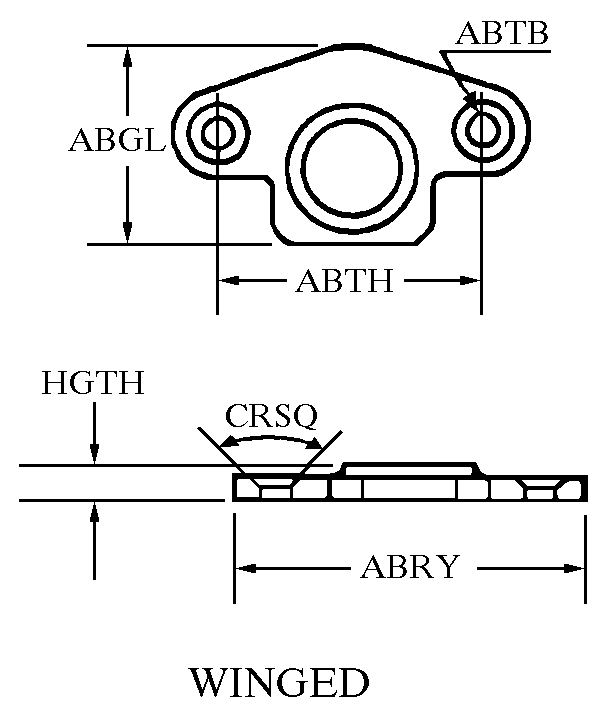

| STYLE DESIGNATOR | D3 WINGED |
| WIDTH | 4.447 INCHES NOMINAL |
| LENGTH | 3.625 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.875 INCHES NOMINAL |
| HEIGHT | 0.405 INCHES NOMINAL |
| COUNTERSINK ANGLE | 45.0 DEGREES NOMINAL |
| SPECIAL FEATURES | SURFACE TREAT.-ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5340-00-948-4377
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139600 | NAMEPLATES/ESCUTCHN/LTR PLATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
