Product Details | HANDWHEEL

5340-00-942-6993 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.

Part Alternates: 263768, 5340-00-942-6993, 00-942-6993, 5340009426993, 009426993

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 25 DEC 1965 00-942-6993

Drawings & Photos | NSN 5340-00-942-6993


Cross Reference | NSN 5340-00-942-6993

Part Number Cage Code Manufacturer
263768 70210 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-942-6993

Technical Data | NSN 5340-00-942-6993

Characteristic Specifications
MATERIAL AND LOCATION STEEL OVERALL
SURFACE TREATMENT AND LOCATION CHROME OVERALL

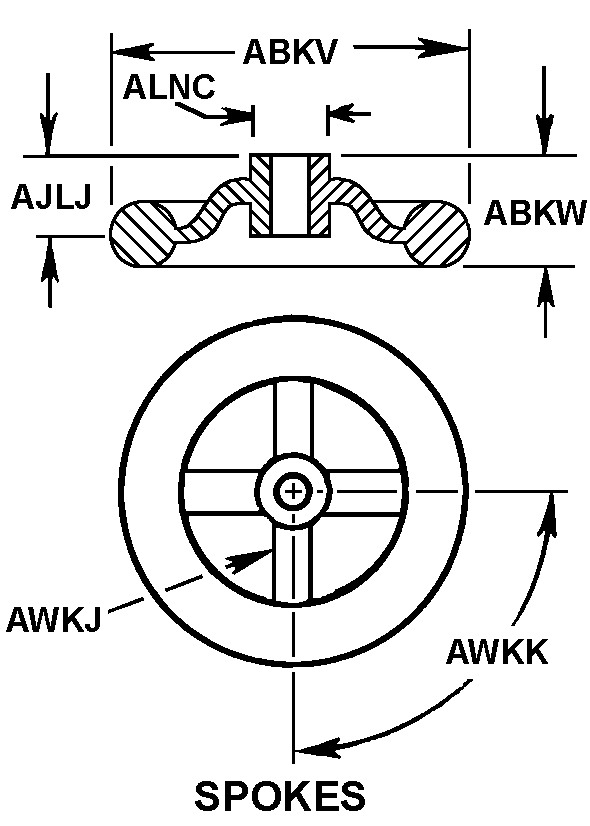

HANDWHEEL STYLE 38 SPOKES
OUTSIDE DIAMETER 4.000 INCHES NOMINAL
OVERALL HEIGHT 1.500 INCHES NOMINAL
HUB LENGTH 1.000 INCHES NOMINAL
HUB OUTSIDE DIAMETER 1.000 INCHES NOMINAL
SPOKE ANGLE IN DEG 120.0
SPOKE QUANTITY 3
DRIVE FACILITY STYLE 123 ROUND
INSIDE DIAMETER 0.375 INCHES NOMINAL
OVERALL DEPTH 1.000 INCHES NOMINAL
HANDLE ROTATING FEATURE NOT INCLUDED
HANDLE COUNTERBALANCING WEIGHT NOT INCLUDED
RATCHET NOT INCLUDED
SPECIAL FEATURES INCLUDE ONE SETSCREW FOR ATTACHING
MANUFACTURERS CODE 70210
DESIGN CONTROL REFERENCE 263768
