NSN 5340-00-907-0734 10TUSSPH, 24485862, 2448586-2
Product Details | GROOVED CLAMP COUPLING FERRULE
5340-00-907-0734 A flanged, flared or beaded hollow cylindrical metallic item designed to be affixed to the end of a tube, pipe duct or the like. It is used to mate with the groove of a COUPLING, CLAMP, GROOVED to create a fluid tight joint and/or connection. See also FERRULE, BRAZING, TUBE FITTING.
Part Alternates: 10TUSSPH, 24485862, 2448586-2, 7176X10, 5340-00-907-0734, 00-907-0734, 5340009070734, 009070734
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 JUN 1966 | 00-907-0734 | 20317 ( FERRULE, GROOVED CLAMP COUPLING ) |

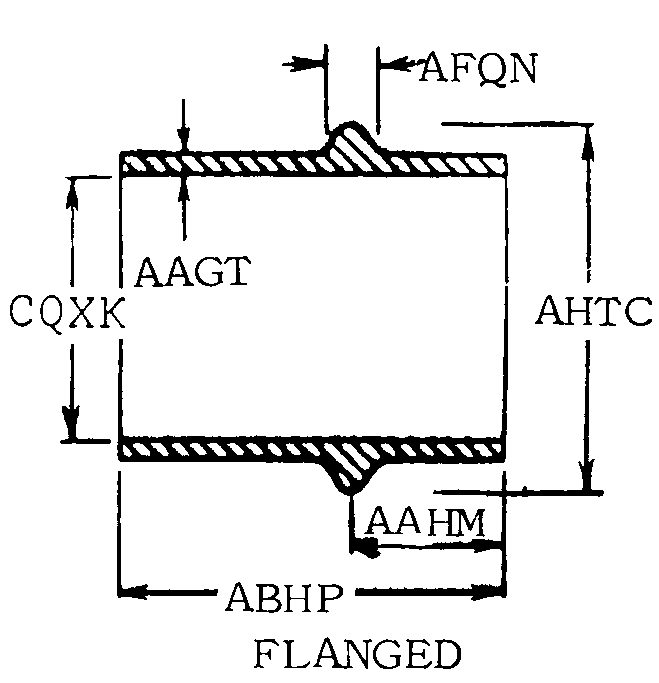

Drawings & Photos | NSN 5340-00-907-0734
Cross Reference | NSN 5340-00-907-0734
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10TUSSPH | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 10TUSSPH | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 10TUSSPH | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 2448586-2 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 7176X10 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 7176X10 | 79470 | DANA CORP WEATHERHEAD DIV |
