Product Details | CLAMP BOLT ASSEMBLY

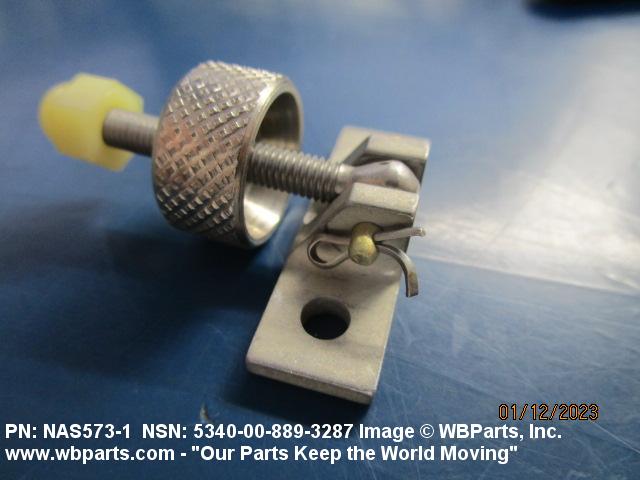

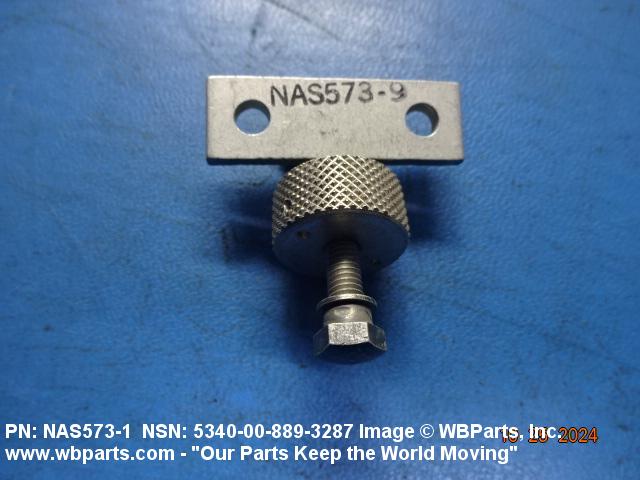

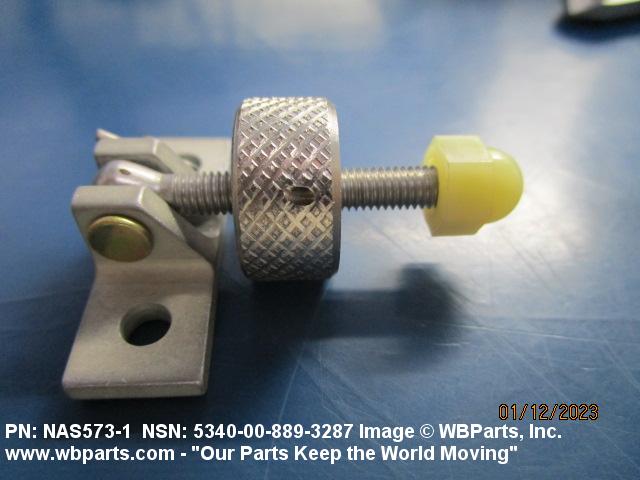

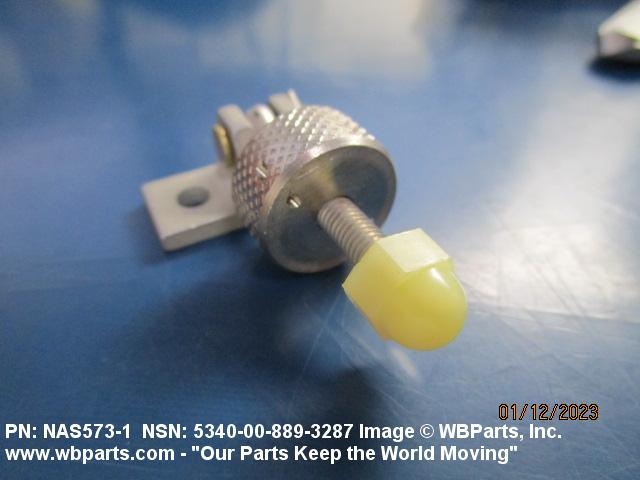

5340-00-889-3287 A threaded item having an eye on one end designed to accommodate a hinge pin, or a pin inserted at right angles to the shank. It must have an adjusting nut assembled on the threads. The end of the threads may be headed, or a cap nut or similar device attached to prevent disassembly of the adjusting nut. It may also have a washer, collar or retainer assembled between the nut and hinge mounted end. Includes items having a bracket or lug mounting. It is used to rigidly clamp items to a structure, instrument, or the like.
Part Alternates: NAS5731, NAS573-1, 5340-00-889-3287, 00-889-3287, 5340008893287, 008893287
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-889-3287 | 20271 ( BOLT ASSEMBLY, CLAMP ) |
Drawings & Photos | NSN 5340-00-889-3287
Demand History | NSN 5340-00-889-3287
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS5731 | 2024-11-326 | 1600 | United States |
| NAS5731 | 2024-10-289 | 10 | us |
| 5340-00-889-3287 | 2024-10-282 | 10 | IL |
| NAS5731 | 2022-11-307 | 10 | United Kingdom |
| 5340-00-889-3287 | 2020-11-309 | 8 | United States |
| 5340-00-889-3287 | 2015-01-28 | 474 | DIBBS |
| 5340-00-889-3287 | 2014-11-317 | 466 | DIBBS |
| 5340-00-889-3287 | 2014-10-275 | 368 | DIBBS |
| 5340-00-889-3287 | 2014-08-236 | 219 | DIBBS |
| 5340-00-889-3287 | 2013-10-297 | 10 | DIBBS |
| 5340-00-889-3287 | 2013-10-282 | 10 | DIBBS |
| 5340-00-889-3287 | 2013-05-136 | 156 | DIBBS |
| NAS5731 | 2008-12-343 | 10 | United States |
| 5340-00-889-3287 | 2008-03-77 | 65 | United States |
| 5340-00-889-3287 | 2007-07-208 | 50 | Canada |
Cross Reference | NSN 5340-00-889-3287
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS573-1 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-889-3287
Related Products | NSN 5340-00-889-3287
Technical Data | NSN 5340-00-889-3287
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BOLT ALUMINUM ALLOY HINGE STEEL CORROSION RESISTING NUT STEEL PIN |
| STYLE DESIGNATOR | A2 KNURLED NO. 2 |
| MOUNTING METHOD | UNTHREADED HOLE OR THREADED HOLE |
| MOUNTING FACILITY DIAMETER | 0.193 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 10.0 MILLIMETERS |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

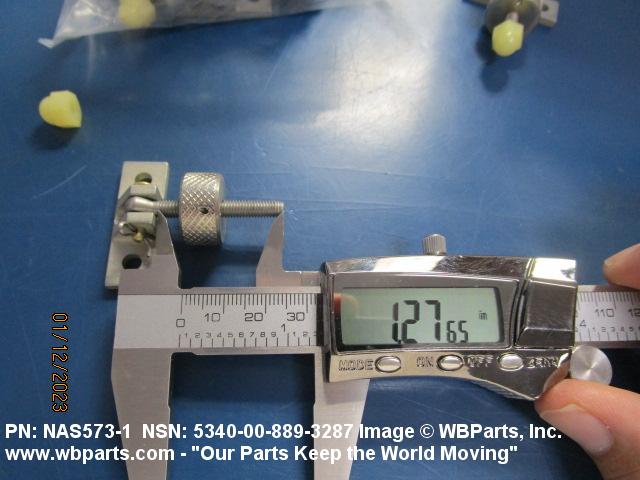

| THREAD LENGTH | 1.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-889-3287
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
