Product Details | ANGLE BRACKET
5340-00-886-8529 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 105B3949P1, 5340-00-886-8529, 00-886-8529, 5340008868529, 008868529
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-886-8529 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-00-886-8529
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-886-8529
Related Products | NSN 5340-00-886-8529
Technical Data | NSN 5340-00-886-8529
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 321 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 7 OFFSET ANGLE |
| FIRST LEG LENGTH | 0.880 INCHES MINIMUM AND 0.920 INCHES MAXIMUM |
| FIRST LEG THICKNESS | 0.073 INCHES MINIMUM AND 0.083 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.083 INCHES MINIMUM AND 0.087 INCHES MAXIMUM |
| FIRST LEG STYLE | 105 CORNER RADIUS |
| FIRST LEG CORNER RADIUS | 0.260 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |
| SECOND LEG CORNER RADIUS | 0.220 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| FIRST LEG HOLE ARRANGEMENT STYLE | 145 ONE SLOT |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.260 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |
| FIRST LEG SLOT LENGTH | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| FIRST LEG SLOT WIDTH | 0.200 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
| SECOND LEG HOLE DIAMETER | 0.281 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 1.360 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 0.380 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.220 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.220 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SECOND LEG STYLE | 105 CORNER RADIUS |

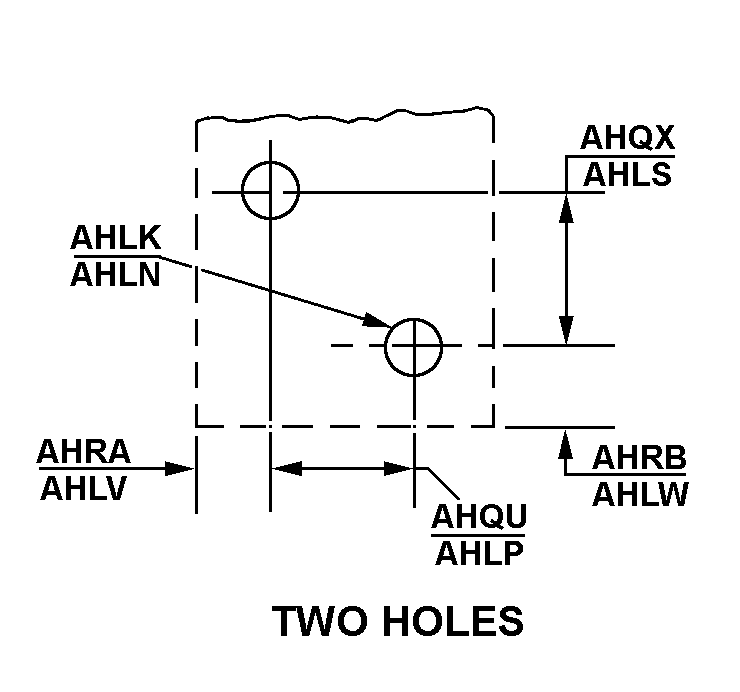

| SECOND LEG HOLE ARRANGEMENT STYLE | 135 TWO HOLES |
