NSN 5340-00-879-8346 L63DN, L63PDN, L-63-PDN-2.00-THD5/8-11UNC
Product Details | SWIVEL CASTER
5340-00-879-8346 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: L63DN, L63PDN, L-63-PDN-2.00-THD5/8-11UNC, L63PDN200THD5811UNC, 63-L-PDN-5/8X2, 63LPDN58X2, 5340-00-879-8346, 00-879-8346, 5340008798346, 008798346
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-879-8346 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-00-879-8346
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-879-8346
Related Products | NSN 5340-00-879-8346
Technical Data | NSN 5340-00-879-8346
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | RUBBER WHEEL RIM STEEL BODY |
| SURFACE TREATMENT AND LOCATION | ZINC BODY |
| SAFE OPERATING LOAD RATING | NOT RATED |

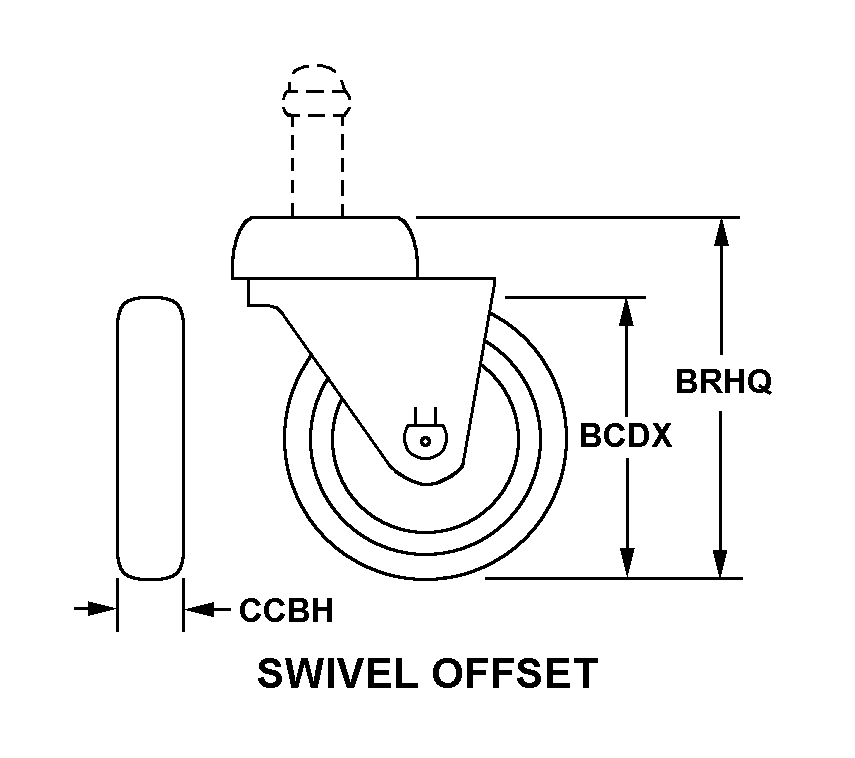

| STYLE DESIGNATOR | 6 SWIVEL OFFSET |
| WHEEL DIAMETER | 3.000 INCHES NOMINAL |
| TREAD WIDTH | 1.250 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 4.125 INCHES NOMINAL |

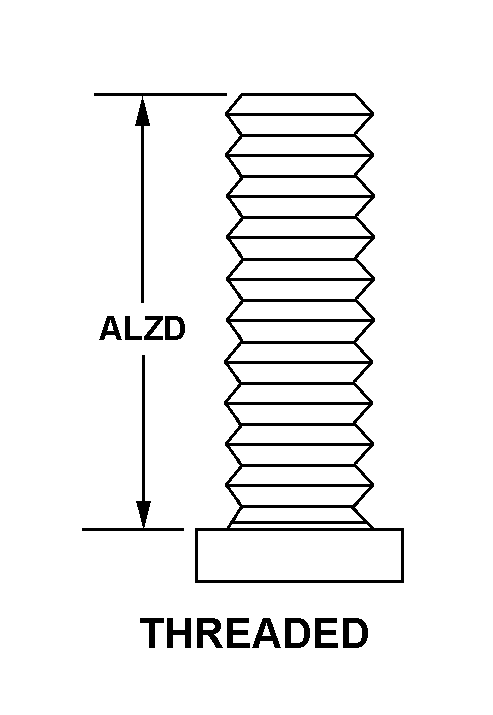

| STEM STYLE | 13 THREADED |
| STEM LENGTH | 2.000 INCHES NOMINAL |
| STEM THREAD SERIES DESIGNATOR | UNC |
| STEM THREAD QUANTITY PER INCH | 11 |
| STEM THREAD DIAMETER | 0.625 INCHES NOMINAL |

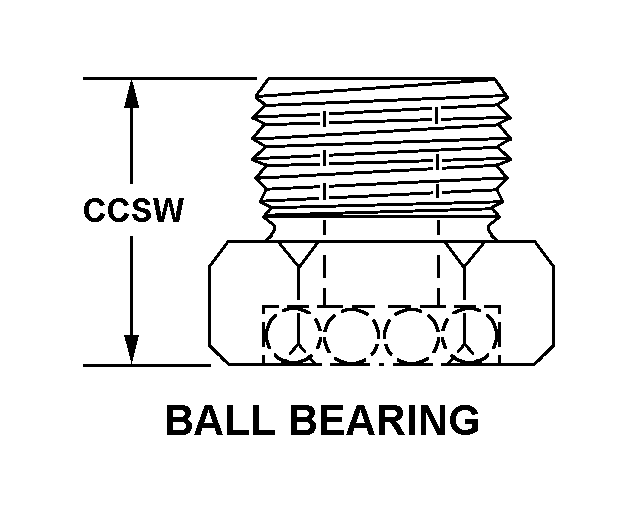

| STEM SOCKET STYLE | 40 BALL BEARING |
| STEM SOCKET OVERALL HEIGHT | 2.500 INCHES NOMINAL |
| STEM SOCKET THREAD SERIES DESIGNATOR | NPS |
| STEM SOCKET NOMINAL PIPE SIZE DESIGNATOR | 0.625 INCHES |
| WHEEL BEARING TYPE | PLAIN, SELF-LUBRICATED |
| SWIVEL BEARING TYPE | BALL |
| SWIVEL BEARING ARRANGEMENT | TWO ROW |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | SOLID |
Restrictions/Controls & Freight Information | NSN 5340-00-879-8346
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-879-8346
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
