NSN 5340-00-848-5232 927416, 00-848-5232, 008485232
Product Details | DUST AND MOISTURE SEAL BOOT
5340-00-848-5232 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: 927416, 5340-00-848-5232, 00-848-5232, 5340008485232, 008485232
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 DEC 1966 | 00-848-5232 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
Drawings & Photos | NSN 5340-00-848-5232
Cross Reference | NSN 5340-00-848-5232
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 927416 | 34623 | AM GENERAL, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-848-5232
Technical Data | NSN 5340-00-848-5232
| Characteristic | Specifications |
|---|---|

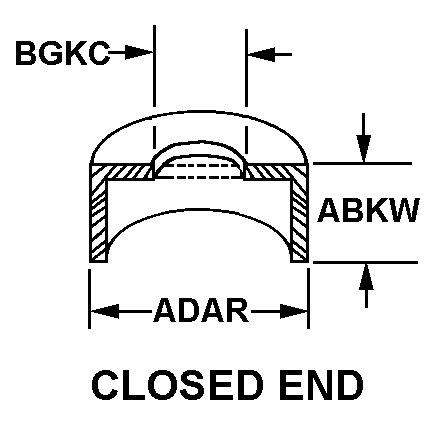

| STYLE DESIGNATOR | A6A CLOSED END |
| OVERALL HEIGHT | 0.812 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.375 INCHES NOMINAL |
| MATERIAL | RUBBER SYNTHETIC BODY |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERPROOF |
| MOUNTING METHOD | COMPRESSION |
| SEALING METHOD | COMPRESSION |
| SPECIAL FEATURES | CIRCULAR GROOVE ON INSIDE DIA |
Restrictions/Controls & Freight Information | NSN 5340-00-848-5232
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
