NSN 5340-00-845-3018 BH6993R2BX329, 930MD06201ST, 00-845-3018
Product Details | SWIVEL CASTER
5340-00-845-3018 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: BH6993R2BX329, 930MD06201ST, 5340-00-845-3018, 00-845-3018, 5340008453018, 008453018
Hardware and Abrasives | Hardware, Commercial
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1963 | 00-845-3018 | 06188 ( CASTER, SWIVEL ) |
Demand History | NSN 5340-00-845-3018
Part Number | Request Date | QTY | Origin |
---|---|---|---|
930MD06201ST | 2020-10-301 | 2 | DIBBS |
5340-00-845-3018 | 2018-12-338 | 4 | DIBBS |
5340-00-845-3018 | 2018-09-266 | 1 | DIBBS |
5340-00-845-3018 | 2018-02-36 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-845-3018
Related Products | NSN 5340-00-845-3018
Technical Data | NSN 5340-00-845-3018
Characteristic | Specifications |
---|---|
MATERIAL AND LOCATION | RUBBER, SYNTHETIC TREAD ALUMINUM ALLOY WHEEL RIM STEEL BODY STEEL PLATE |
SURFACE TREATMENT AND LOCATION | ANODIZED WHEEL RIM ZINC BODY ZINC PLATE |
SAFE OPERATING LOAD RATING | 410.0 POUNDS NOMINAL |
STYLE DESIGNATOR | 2 SWIVEL OFFSET |
WHEEL DIAMETER | 6.000 INCHES NOMINAL |
TREAD WIDTH | 2.000 INCHES NOMINAL |
EFFECTIVE HEIGHT | 7.375 INCHES NOMINAL |

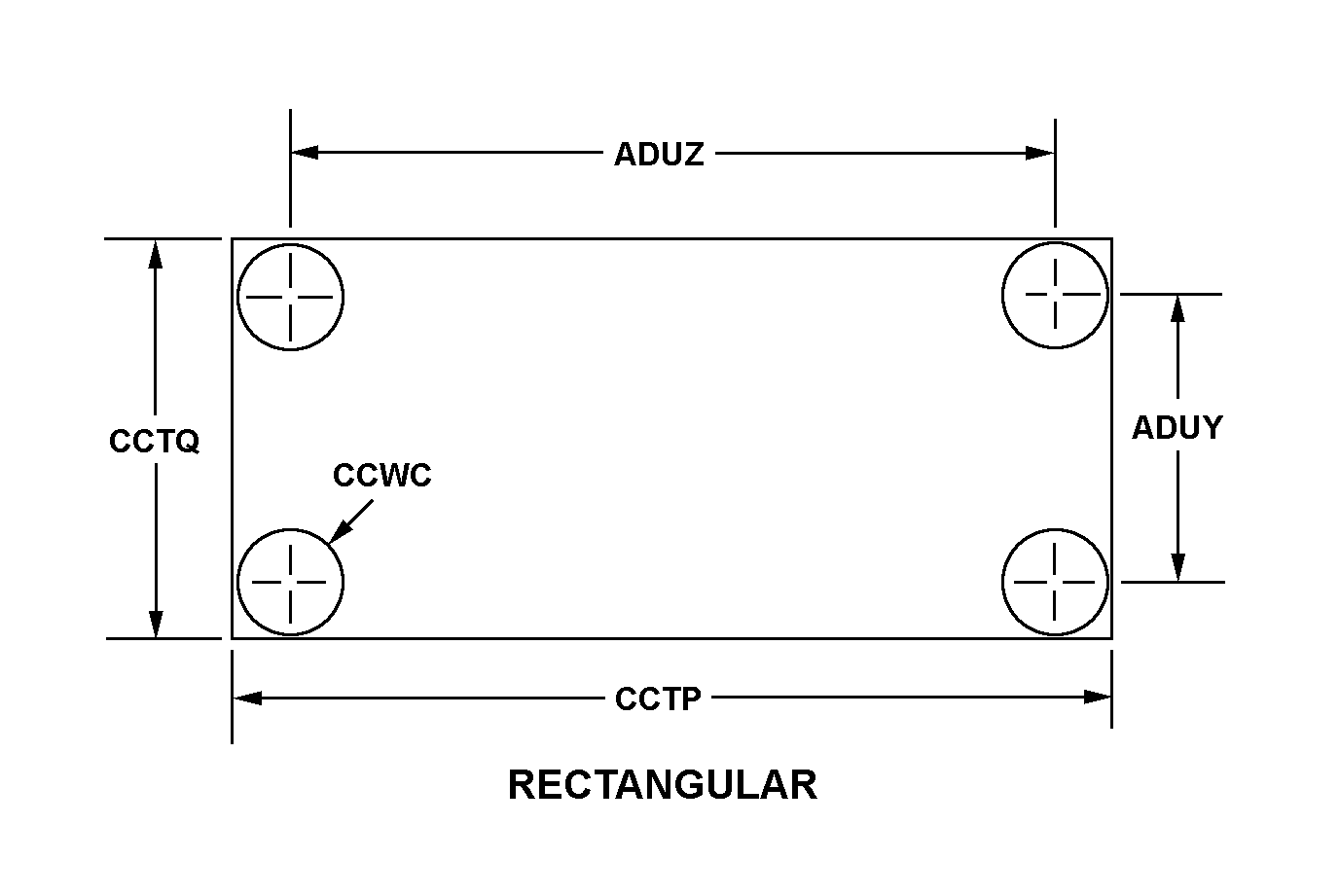

PLATE STYLE | 13 RECTANGULAR |
CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 4.125 INCHES NOMINAL |
CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 4.500 INCHES NOMINAL |
CASTER PLATE LENGTH | 5.500 INCHES NOMINAL |
CASTER PLATE WIDTH | 5.000 INCHES NOMINAL |
CASTER PLATE MOUNTING HOLE DIAMETER | 0.391 INCHES NOMINAL |
WHEEL BEARING TYPE | ANNULAR BALL |
SWIVEL BEARING TYPE | BALL |
SWIVEL BEARING ARRANGEMENT | ONE ROW |
KING BOLT BEARING TYPE | BALL |
WHEEL QUANTITY | 1 |
WHEEL TYPE | BUILT UP |
FEATURES PROVIDED | AXLE LUBRICATION FITTING AND BRAKE LOCK |
MANUFACTURERS CODE | 96266 |
DESIGN CONTROL REFERENCE | BH6993R2BX329 |
Restrictions/Controls & Freight Information | NSN 5340-00-845-3018
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
Less than car load rating | ||
Less than truck load rating | R | 65.0 |
Water commodity Code | 713 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-845-3018
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
