NSN 5340-00-839-9074 S4389400G1, 00-839-9074, 008399074
Product Details | DOUBLE ANGLE BRACKET
5340-00-839-9074 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: S4389400G1, 5340-00-839-9074, 00-839-9074, 5340008399074, 008399074
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 DEC 1966 | 00-839-9074 | 20354 ( BRACKET, DOUBLE ANGLE ) |
Drawings & Photos | NSN 5340-00-839-9074
Cross Reference | NSN 5340-00-839-9074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S4389400G1 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-839-9074
Related Products | NSN 5340-00-839-9074
Technical Data | NSN 5340-00-839-9074
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | 11 DOUBLE ANGLE |
| III FIRST LEG LENGTH | 0.875 INCHES NOMINAL |
| III SECOND LEG LENGTH | 0.938 INCHES NOMINAL |
| III FIRST LEG THICKNESS | 0.072 INCHES NOMINAL |
| III SECOND LEG THICKNESS | 0.072 INCHES NOMINAL |
| III CENTER SECTION HEIGHT | 0.750 INCHES NOMINAL |
| III CENTER SECTION WIDTH | 0.750 INCHES NOMINAL |
| III CENTER SECTION THICKNESS | 0.072 INCHES NOMINAL |
| III FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| III SECOND LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 105 CORNER RADIUS |
| FIRST LEG WIDTH | 0.750 INCHES NOMINAL |
| FIRST LEG CORNER RADIUS | 0.250 INCHES NOMINAL |

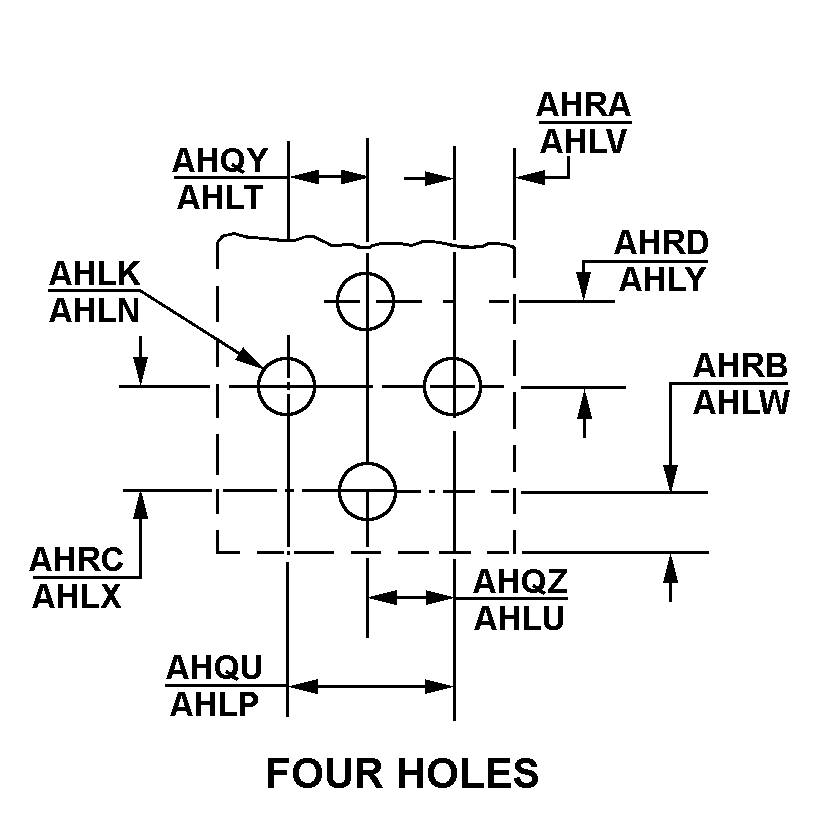

| FIRST LEG HOLE ARRANGEMENT STYLE | 142 FOUR HOLES |
| FIRST LEG HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.101 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 0.375 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH | 0.188 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG WIDTH | 0.188 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.188 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.188 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG LENGTH | 0.188 INCHES NOMINAL |
| FIRST LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG LENGTH | 0.188 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 105 CORNER RADIUS |
| SECOND LEG WIDTH | 0.750 INCHES NOMINAL |
| SECOND LEG CORNER RADIUS | 0.250 INCHES NOMINAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
| SECOND LEG HOLE DIAMETER | 0.219 INCHES MINIMUM AND 0.233 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.375 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.250 INCHES NOMINAL |
| (NON-CORE DATA) FABRICATION METHOD | STAMPED |
Restrictions/Controls & Freight Information | NSN 5340-00-839-9074
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-839-9074
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
