NSN 5340-00-836-0152 SS51074 , X3011, X301-1
Product Details | PLUG BUTTON
5340-00-836-0152 An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole. Excludes FASTENER, SPRING TENSION, TRIM.
Part Alternates: SS51074 , X3011, X301-1, 91756854, 9175685-4, 5340-00-836-0152, 00-836-0152, 5340008360152, 008360152
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-836-0152 | 11251 ( BUTTON, PLUG ) |

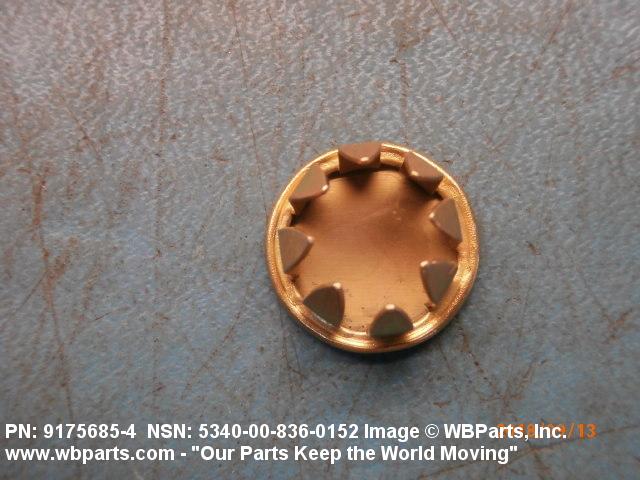

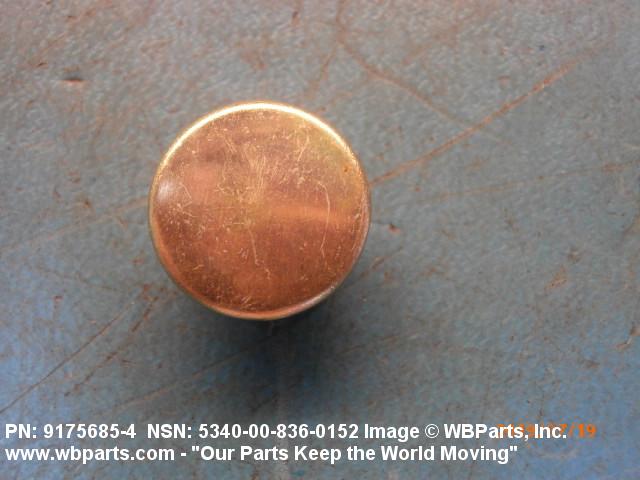

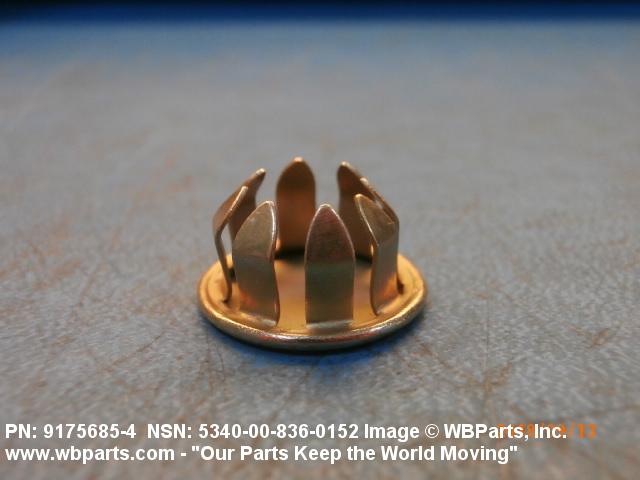

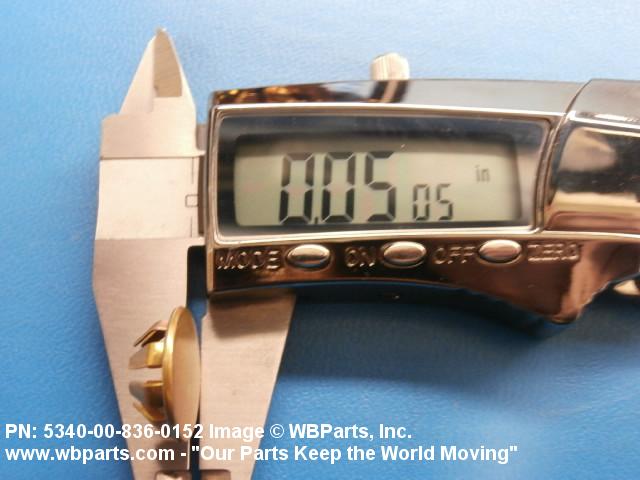

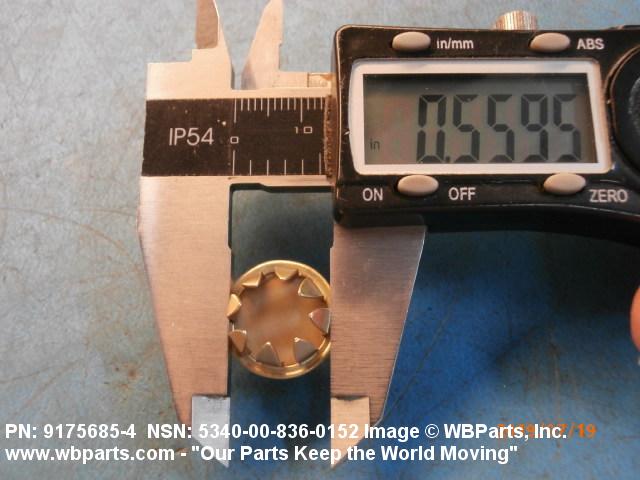

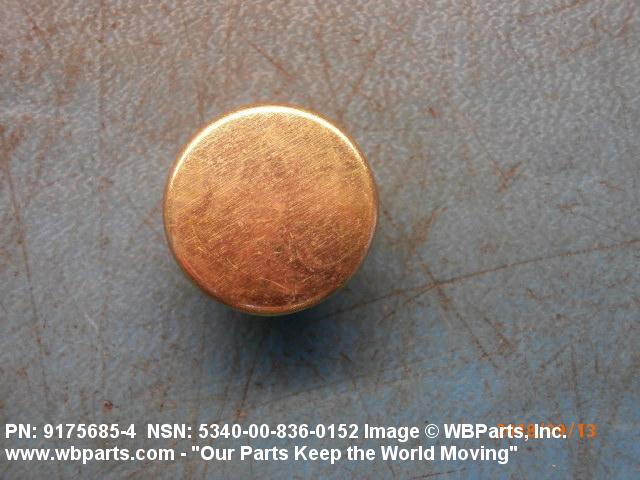

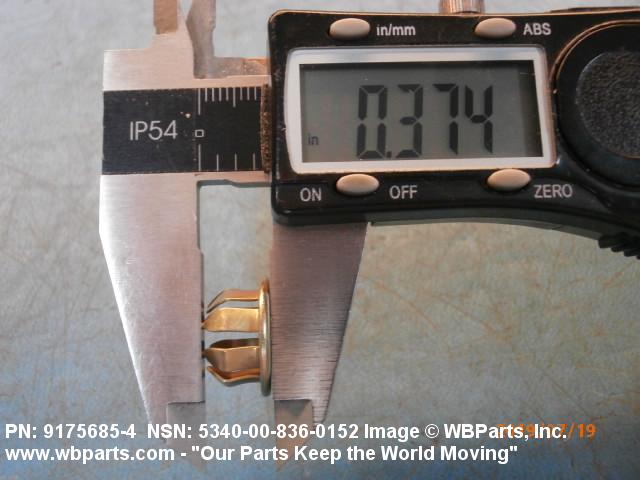

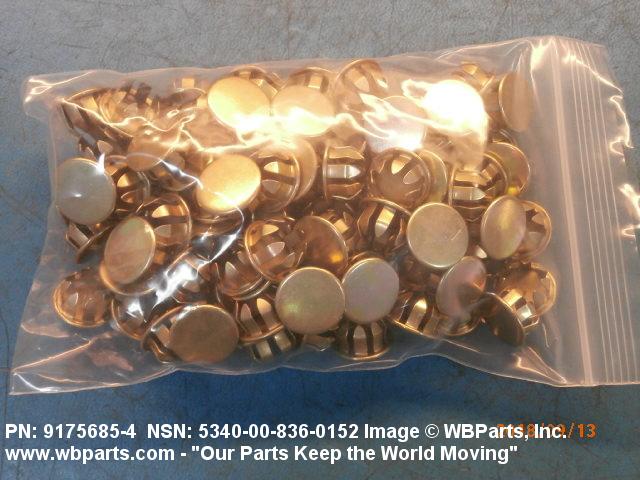

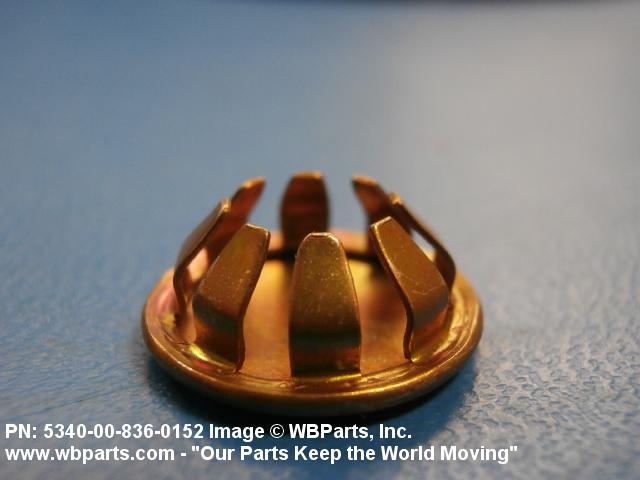

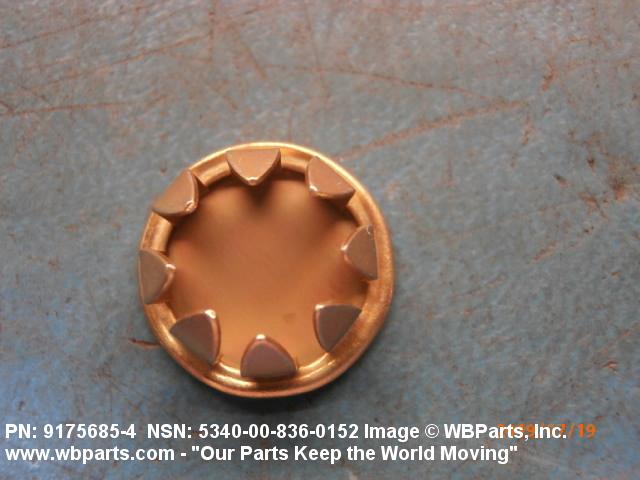

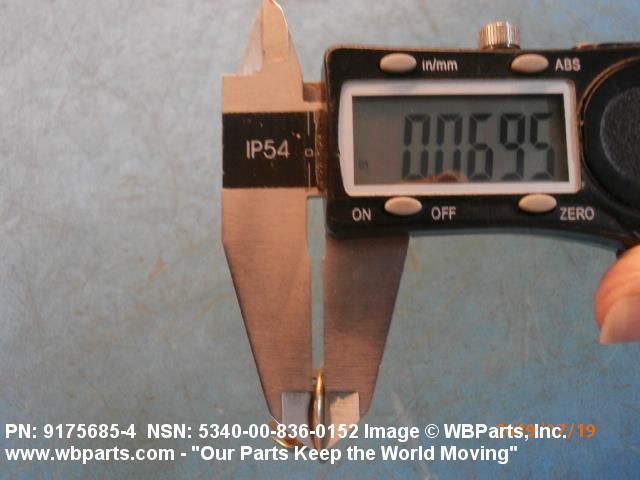

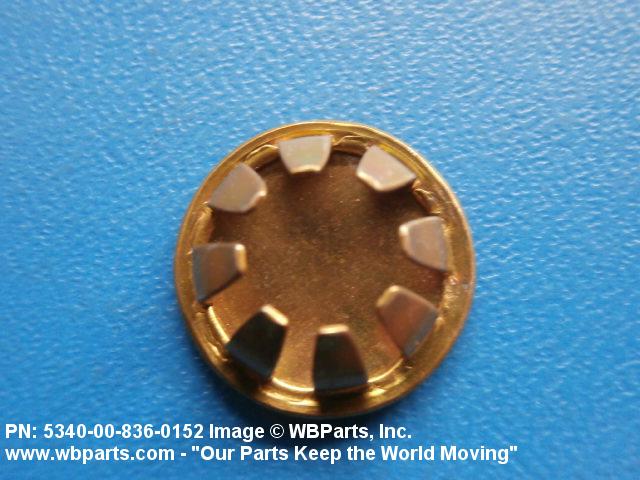

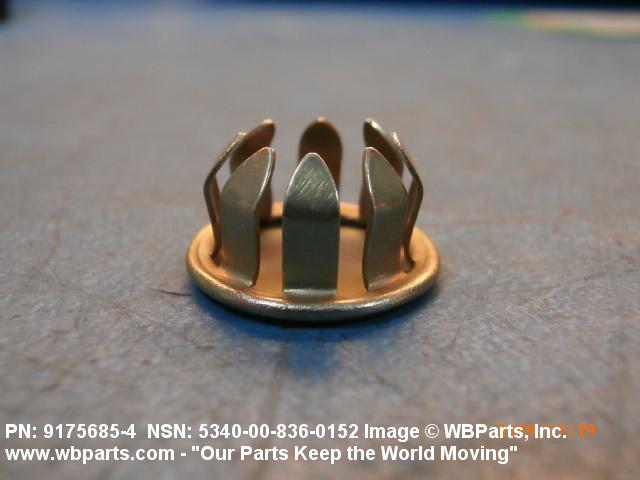

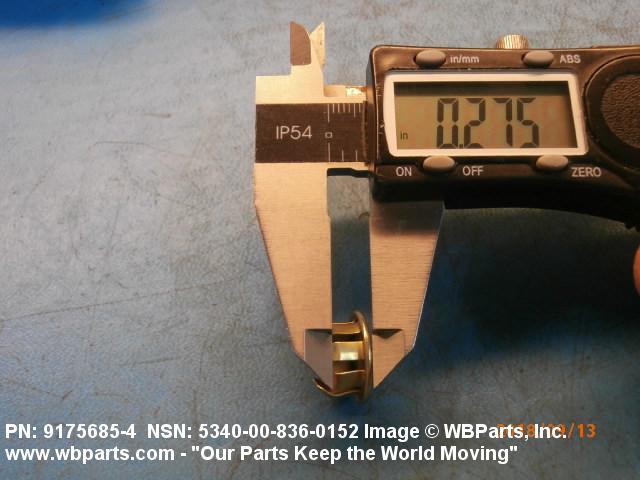

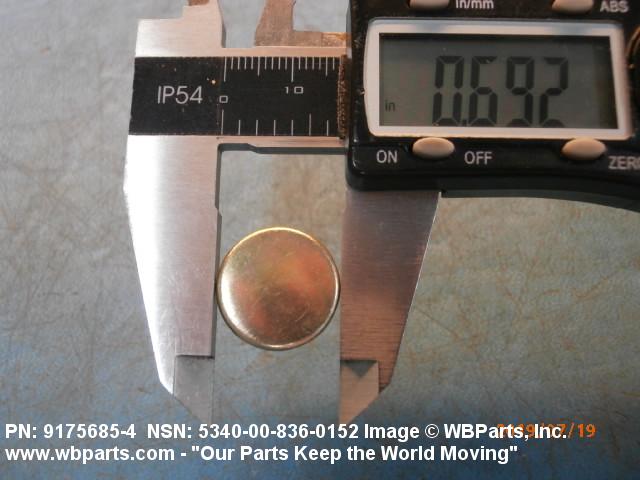

Drawings & Photos | NSN 5340-00-836-0152
Demand History | NSN 5340-00-836-0152
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SS51074 | 2023-09-264 | 20 | United States |
| 5340-00-836-0152 | 2023-09-257 | 20 | US |
| SS51074 | 2023-06-166 | 12 | United States |
| 5340-00-836-0152 | 2023-05-128 | 2 | United States |
| 5340-00-836-0152 | 2020-10-276 | 4 | United States |
| SS51074 | 2020-02-45 | 400 | United States |
| SS51074 | 2019-06-172 | 100 | United States |
| 5340-00-836-0152 | 2018-08-243 | 100 | us |
| 5340-00-836-0152 | 2018-08-235 | 100 | us |
| 5340-00-836-0152 | 2018-08-225 | 1614 | DIBBS |
| 5340-00-836-0152 | 2018-08-217 | 1614 | DIBBS |
| 5340-00-836-0152 | 2018-06-178 | 799 | DIBBS |
| 5340-00-836-0152 | 2018-06-170 | 799 | DIBBS |
| 5340-00-836-0152 | 2018-03-80 | 799 | DIBBS |
| 5340-00-836-0152 | 2017-09-269 | 20 | Malaysia |
| 5340-00-836-0152 | 2017-07-190 | 1394 | DIBBS |
| 5340-00-836-0152 | 2017-06-180 | 1394 | DIBBS |
| 5340-00-836-0152 | 2017-06-170 | 20 | Malaysia |
| 5340-00-836-0152 | 2017-06-170 | 20 | Malaysia |
| 5340-00-836-0152 | 2017-04-100 | 1500 | DIBBS |
| 5340-00-836-0152 | 2017-03-89 | 1500 | DIBBS |
| 5340-00-836-0152 | 2017-03-71 | 927 | DIBBS |
| 5340-00-836-0152 | 2017-03-61 | 927 | DIBBS |
| 5340-00-836-0152 | 2016-08-244 | 667 | DIBBS |
| 5340-00-836-0152 | 2016-07-213 | 667 | DIBBS |
| 5340-00-836-0152 | 2016-07-199 | 667 | DIBBS |
| 5340-00-836-0152 | 2016-05-139 | 667 | DIBBS |
| 5340-00-836-0152 | 2016-03-90 | 175 | DIBBS |
| SS51074 | 2016-02-55 | 430 | us |
| 5340-00-836-0152 | 2016-01-27 | 1057 | DIBBS |
| 5340-00-836-0152 | 2015-09-253 | 3334 | DIBBS |
| 5340-00-836-0152 | 2015-04-92 | 3334 | DIBBS |
| 5340-00-836-0152 | 2015-02-40 | 200 | us |
| 5340-00-836-0152 | 2015-02-40 | 200 | us |
| 5340-00-836-0152 | 2015-02-36 | 200 | us |
| 5340-00-836-0152 | 2014-07-183 | 3334 | DIBBS |
| 5340-00-836-0152 | 2014-04-98 | 2000 | DIBBS |
| 5340-00-836-0152 | 2014-02-54 | 667 | DIBBS |
| 5340-00-836-0152 | 2014-01-31 | 100 | United States |
| 5340008360152 | 2012-01-30 | 10 | AE |
| 5340-00-836-0152 | 2009-05-127 | 1 | US |
Cross Reference | NSN 5340-00-836-0152
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9175685-4 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| SS51074 | 26922 | CETEC CORP HQ |
| SS51074 | 57365 | CETEC BROADCAST GROUP DIV OF CETEC CORP |
| SS51074 | 83058 | TRW ASSEMBLIES AND FASTENERS GROUP FASTENERS DIV |
| SS51074 | 90763 | TRW ASSEMBLIES AND FASTENERS GROUP FASTENERS DIV |
| SS51074 | 9S651 | TRW ASSEMBLIES AND FASTENERS GROUP FASTENERS DIV |
| X301-1 | 55469 | ESSEX INDUSTRIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-836-0152
Related Products | NSN 5340-00-836-0152
Technical Data | NSN 5340-00-836-0152
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM PLATED W/CHROMATE |
| STYLE DESIGNATOR | A10 STANDARD |
| HEAD HEIGHT | 0.078 INCHES NOMINAL |

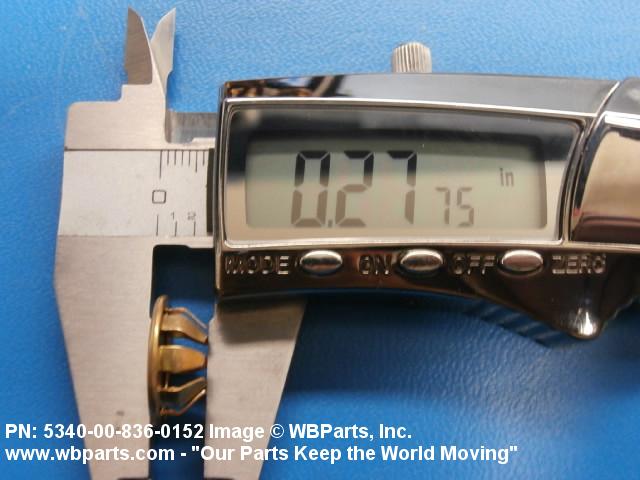

| OVERALL HEIGHT | 0.266 INCHES NOMINAL |

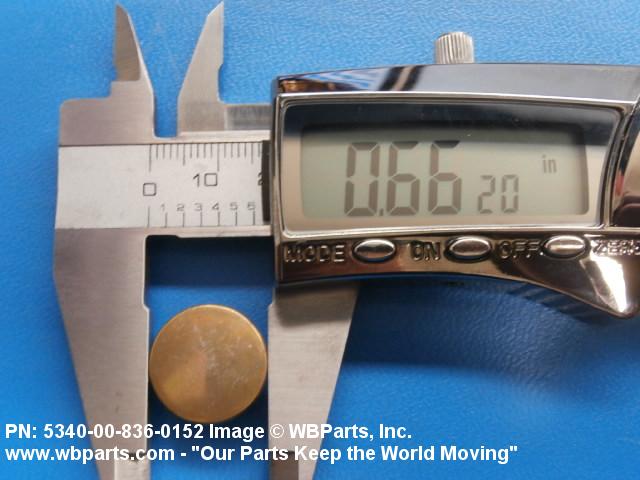

| HEAD OUTSIDE DIAMETER | 0.656 INCHES NOMINAL |
| PRONG OUTSIDE DIAMETER | 0.546 INCHES NOMINAL |
| PRONG QUANTITY | 8 |
| HOLE ACCOMMODATION DIAMETER | 0.531 INCHES NOMINAL |

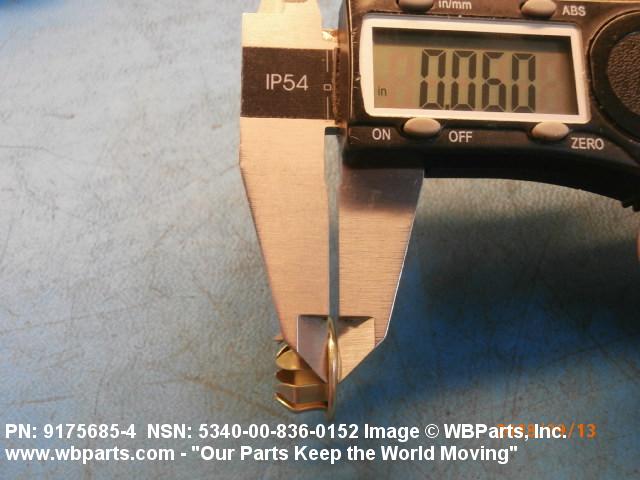

| MATERIAL ACCOMMODATED THICKNESS | 0.050 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-00-836-0152
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-836-0152
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
